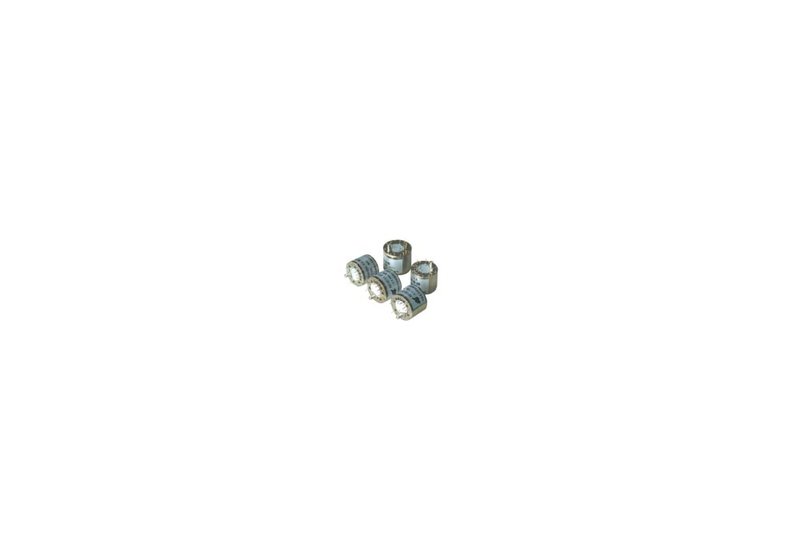

Ceyear YIG abgestimmte Oszillatoren
- Halbleiter-Oszillatoren mit Yttrium-Eisen-Granat (YIG) -basierender Abstimmung.
- Multioktav-Bandbreite (Frequenz-Bereich: 2,2 GHz bis 10 GHz).
- Geringes Phasenrauschen.
- Anwendbar für Testinstrumenten und Electronic Counter Measures (ECM).
Modell-Übersicht
YIG abgestimmte Oszillatoren | ||||||
Modell | Ceyear-16103 | Ceyear-86201 | Ceyear-86202 | Ceyear-16107 | Ceyear-86207 | Ceyear-86203 |
Frequenz-Bereiche | 2,2...8 GHz | 2,2...20 GHz | 3...9 GHz | 8...20 GHz | 3...8 GHz | 3...10 GHz |
Ausgangs-Leistung (min.) | 13 dBm | 12 dBm | 14 dBm | 12 dBm | 12 dBm | 14 dBm |
Leistungs-Flatness | ±3 dB | ±4 dB | ±2,5 dB | ±3 dB | ±2,5 dB | ±3,5 dB |
Harmonische (max.) | -10 dBc | -10 dBc | -10 dBc | -10 dBc | -10 dBc | -10 dBc |
Nicht-harmonische Nebenwellen (max.) | -60 dBc | -60 dBc | -70 dBc | -60 dBc | -70 dBc | -70 dBc |
SSB Phaseenrauschen (bei 100 kHz, max.) | -112 dBc/Hz | -100 dBc/Hz | -120 dBc/Hz | -100 dBc/Hz | -118 dBc/Hz | -118 dBc/Hz |
Frequenz-Drift über Temperatur (max.) | 20 MHz | 40 MHz | 20 MHz | 30 MHz | 20 MHz | 20 MHz |
Magnetische Hysterese (max.) | 8 MHz | 15 MHz | 8 MHz | 12 MHz | 8 MHz | 9 MHz |
Empfindlichkeit der Hauptspule | 20 ±1 MHz/mA | 60 ±3 MHz/mA | 20 ±1 MHz/mA | 60 ±3 MHz/mA | 20 ±1 MHz/mA | 20 ±1 MHz/mA |
FM Spulen-Empfindlichkeit | 300 kHz/mA | 230 kHz/mA | 210 kHz/mA | 300 kHz/mA | 210 kHz/mA | 220 kHz/mA |
Linearität | ±0,1% | ±0,15% | ±0,1% | ±0,15% | ±0,1% | ±0,1% |
YIG Erhitzer Eingangs-Spannung | 24 ±2 V | 24 ±2 | 20 ±2 V | 24 ±2 V | 20 ±2 V | 20 ±2 V |
Eingangsimpedanz der Hauptspule | 10Ω | 52Ω | 9,3Ω | 52Ω | 9,3Ω | 9,3Ω |
FM 3 dB Bandbreite | - | - | 10 MHz | - | - | - |
