erfi elneos five DMM - 5¾-Digit High-Precision Multimeter and Power Meter

new
elneos five DMM 5¾-digit digital multimeter and power meter
additional images:
Price
990,00*
€ 1.178,10 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Description

Benefits

  • The 5¾-digit high-precision digital multimeter and power meter from the elneos five series.
  • Intuitive multitouch operation with up to 5 fingers.
  • Full-width glas surface - scratch resistant, imprint-free and abrasion-proof, break-proof.

erfi elneos five DMM - 5¾-Digit High-Precision Digital Multimeter and Power Meter.

The erfi elneos five DMM (EL5S.P) is an innovative high-precision digital multimeter with additional power and energy analysis functions. The unique operation and control technique makes the device easy to use and still offers a wide variety of functionality.

The erfi elneos five series combines uncompromising reliability, clever functionality and an intuitive control concept with a sleek design. The devices' full-width glas surface is scratch resistant, imprint-free, abrasion-proof, and break-proof. You can operate the devices as simple as your smartphone with gestures using up to 5 fingers. Use 2 fingers for example for zooming, 1 finger swiping for the change of devices and call-up of the connection panel, or a 3finger gesture to activate the safeguard function. Even unexperienced users can quickly learn how to use the devices effectively. Connectors with intelligent RGB LED light provide a simpley way of connectivity with a high level of safety. Depending on the connector, the rings light up when contacting is requested. The connectors are permanently lit when the output is active.

  • Digital multimeter and power/energy measurement instrument from the erfi elneos five series.
  • 7" multitouch display with capacitive surface.

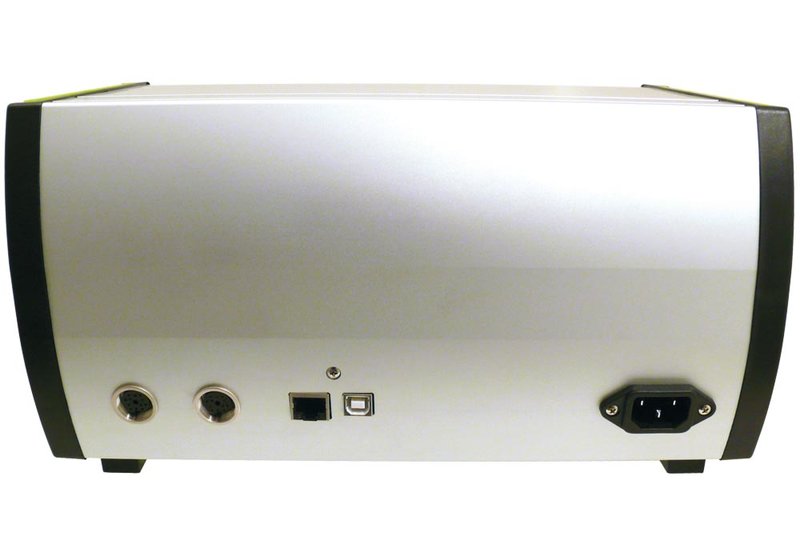

  • USB 2.0 and Ethernet interface; controlled with SCPI commands.
  • Benchtop housing 315 x 185 x 161 (mm), 3 HU/56 DU.

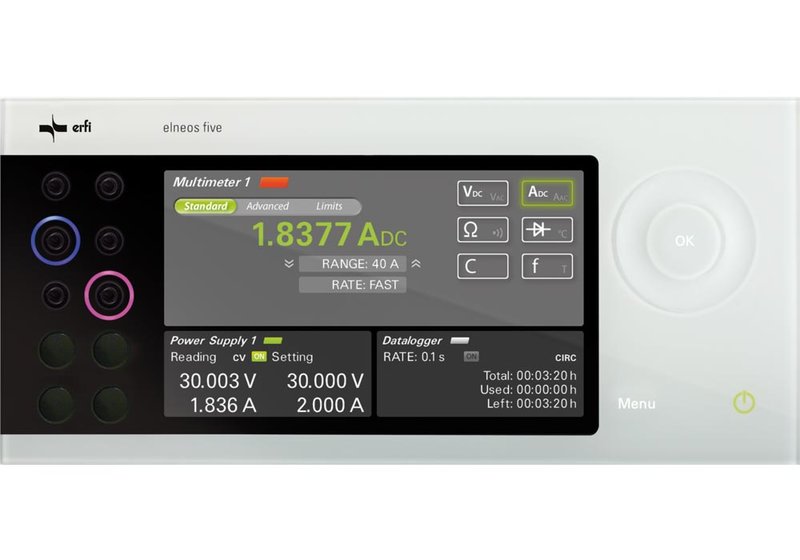

  • 5¾-digit high-precision digital mutimeter, display range 40,000 points, 24 bit conversion.

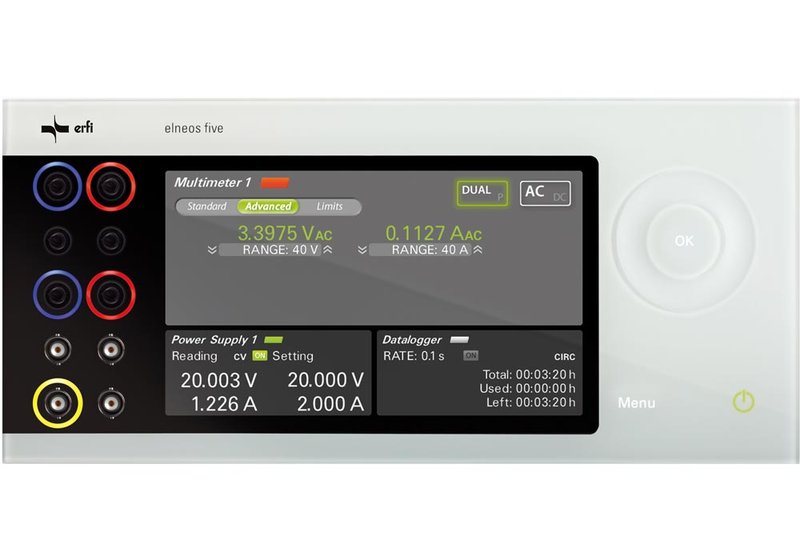

  • Measurements: Voltage AC/DC, current AC/DC, resistance, capacity, frequency, temperature (connect optional Pt100/1000), diode test, continuity test. Auto-range for all measurements.
  • Measurement speed DC fast (10 Hz), DC middle (5 Hz), DC slow (1 Hz), AC slow (1 Hz).
  • True-RMS function.
  • Crest factor 5.
  • Limit value function with digital output.
  • Digital trigger input.
  • Data logger: 4 measurements with 2000 measured values each.

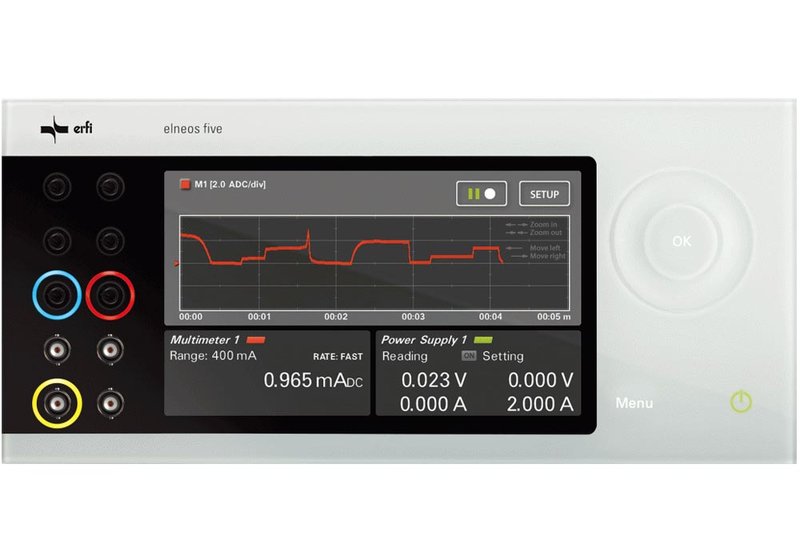

  • Display of measured values numeric or X-Y graph (4 graphs simultaneously), scalable with 2 finger gesture.

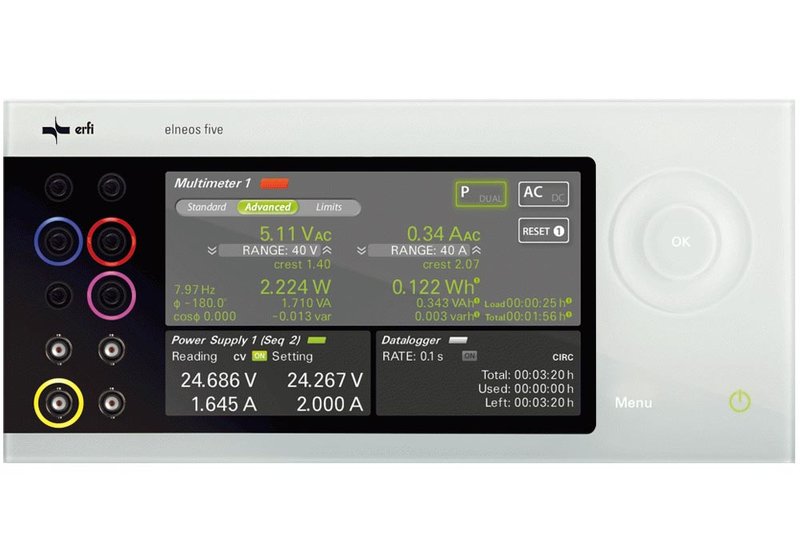

  • Power and energy measurement features: Simultaneous display of U and I. Simultaneous display on a screen: all power and energy values.

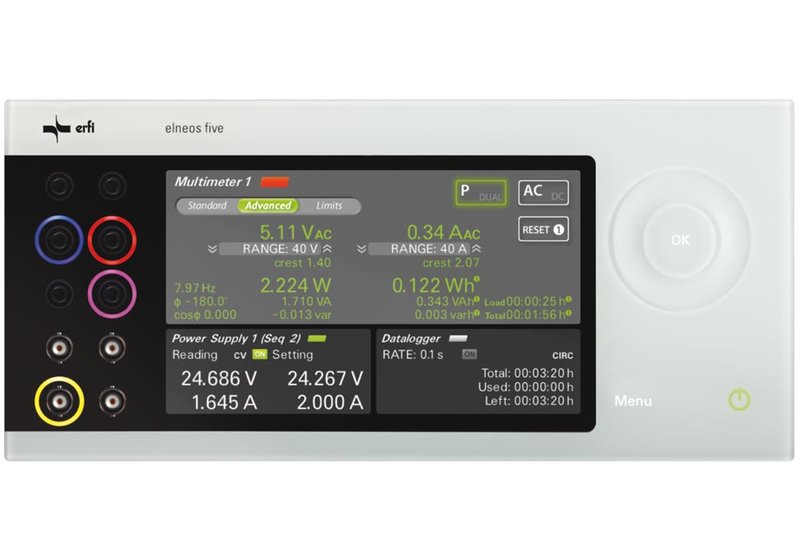

  • Measurement of real power, apparent power, idle power, power factor, active energy, apparent energy, reactive energy.

Model Overview - Included elneos five Options


Model Power supply
EL5.xx
Arb. power supply
EL5.xxA
Multimeter
EL5.D
Multimeter + power  meter
EL5.P
Function generator
EL5.F
Function and arb. generator
EL5.S
Control center
EL5.1
Housing
EL5.SAx
elneos five DMM EL5S.P ✓*

* This device option EL5S.D is already included in the option EL5.P.

Included: elneos five DMM (EL5S.P), including options 1x EL5.1 (control center), 1x EL5.P (Power analyzer including DMM as in EL5.D), 1x EL5.SA1.56.1 (benchtop casing 315 x 185 x 161 (mm), 3 HU/56 DU).

Do you have to work with a combination of several instrument types? For example a power supply and a multimeter/power analyzer, or a kultimeter and a function generator, or a multichannel power supply with the same or differing outputs?

One of the powerful features of the elneos five serie is the possibility to combine several instruments in one chassis.

Advantages:

  • Clear and compact, all in one casing.
  • Consistent, intuitive elneos five multitouch 5-finger operation.
  • Consistent remote control via 1x USB or Ethernet/LAN.

Click here to read more about instrument combinations and examples. Or send an E-Mail to sales@meilhaus.de or call - we help you to find the optimal configuration!

Accessories, options
237,00*
€ 282,03 brutto
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
