eX-9018 - 8 Channels Thermocouple Inputs, for RS485

eX-9018 - RS485 8 Channels Thermocouples
additional images:
progressive price
taking 1 pcs
from
€ 164,50
taking 5 pcs
from
€ 157,92
taking 20 pcs
from
€ 151,34
taking 50 pcs
from
€ 144,76
taking 200 pcs
from
€ 138,18
Price
starting 164,50*
starting € 195,76 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 8 differential inputs for thermocouples.
  • 16 bit, 10 S/s A/D conversion.
  • Models -BL with break line detection.

eX-9018 8-Channel Thermocouple Inputs.

The eX-9018 industrial modules are the ideal solution for decentral/distributed thermocouple sensor signale acquisition with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
  • 8 differential analog inputs for thermocouples type J, K, T, E, R, S, B, N, C.
  • 16 bit, 10 S/s A/D conversion.

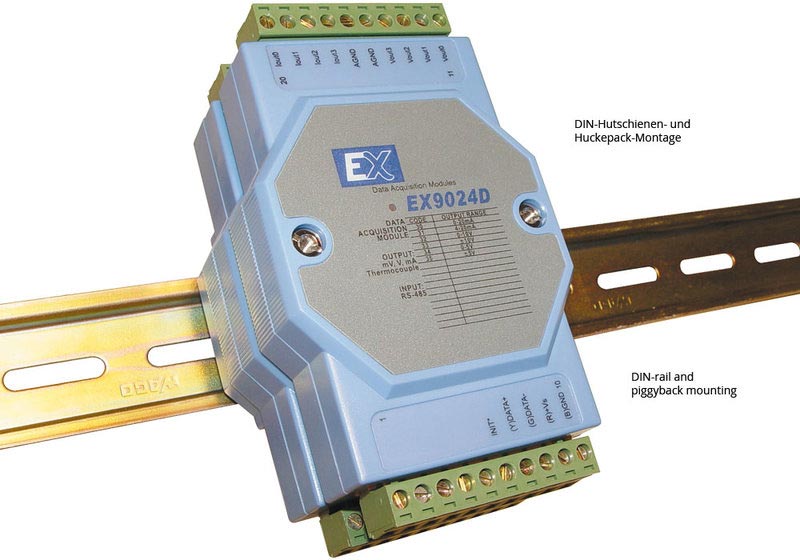

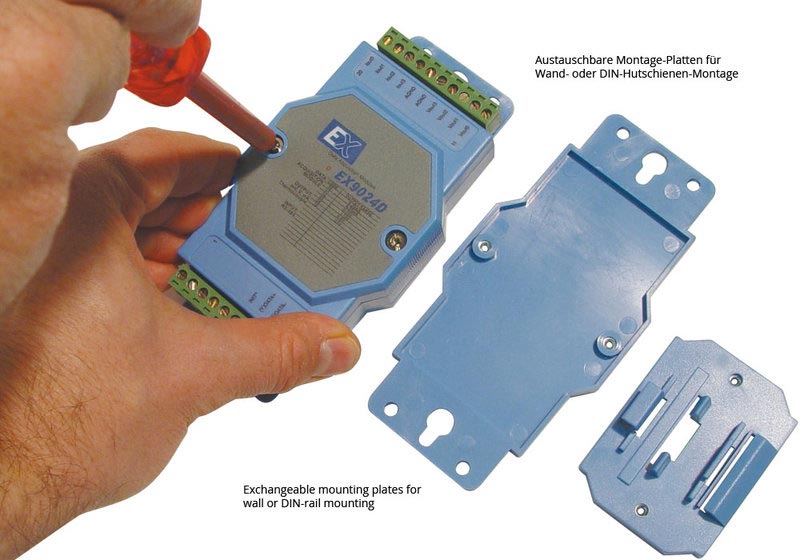

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

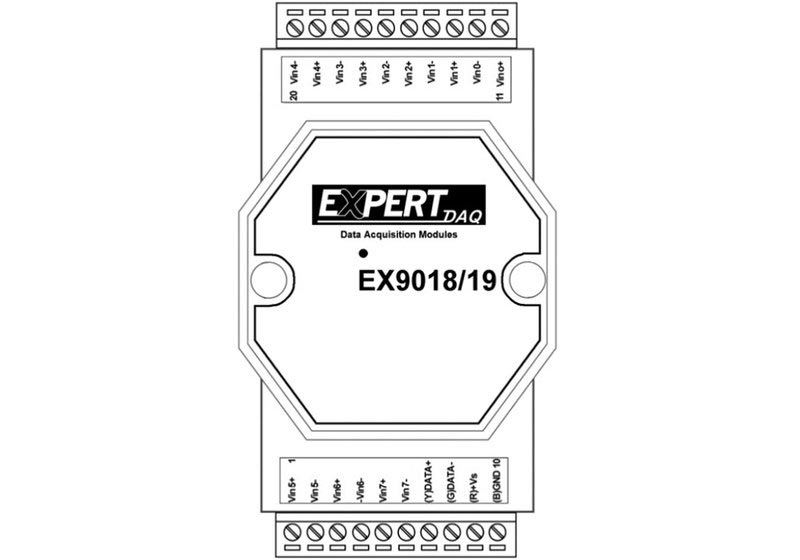

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9018 Series
VersionseX-9018
- EOL -
eX-9018-MeX-9018BL
- EOL -
eX-9018BL-M
Channels8 differential8 differential8 differential8 differential
Resolution16 bit16 bit16 bit16 bit
Total sample rate10 S/s10 S/s10 S/s10 S/s
Voltage range±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Input resistance20 MΩ20 MΩ20 MΩ20 MΩ
Current range±20 mA (external 125 Ω resistance required)±20 mA (external 125 Ω resistance required)±20 mA (external 125 Ω resistance required)±20 mA (external 125 Ω resistance required)
Sernsor inputThermocouple J, K, T, E, R, S, B, N, CThermocouple J, K, T, E, R, S, B, N, CThermocouple J, K, T, E, R, S, B, N, CThermocouple J, K, T, E, R, S, B, N, C
Accuracy±0.1%±0.1%±0.1%±0.1%
Open loop detection--
Isolation3000 V3000 V3000 V3000 V
Power consumption1 W1 W1 W1 W
CommunicationRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bpsRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
