Benefits of the eX-9024 4-Channel Analog Output Module, 14 bit, 0 to 10 V, 0/4 to 20 mA

  • 4 analog outputs, 14 bit.
  • Voltage range 0...10 V, current 0/4...20 mA.
  • Modules for DIN-rail or wall-mountable.

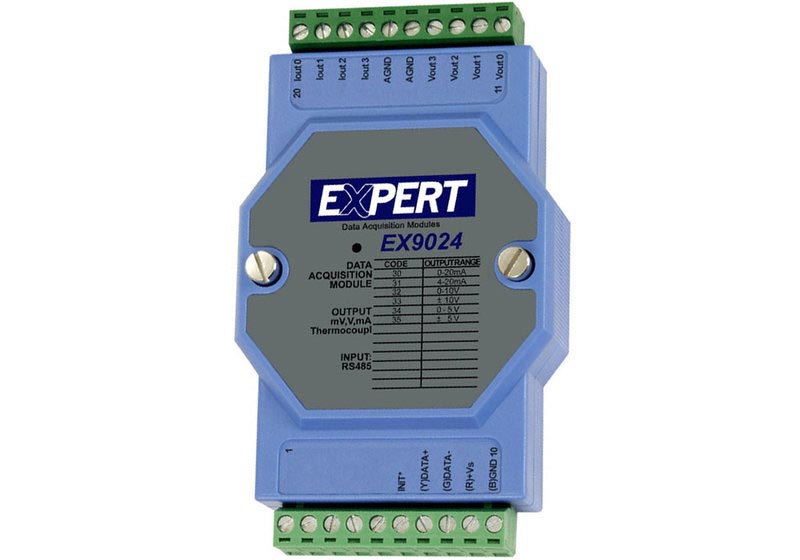

eX-9024 4 Analog Outputs, for RS485

The eX-9024 industrial modules are the ideal solution for decentral/distributed 4-channel analog output (14 bit) with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485 for decentral/remote networking applications.
  • 4 analog outputs.
  • 14 bit D/A conversion, range ±5 V, ±10 V, 0...5 V, 0...10 V and 0...20 mA, 4...20 mA.

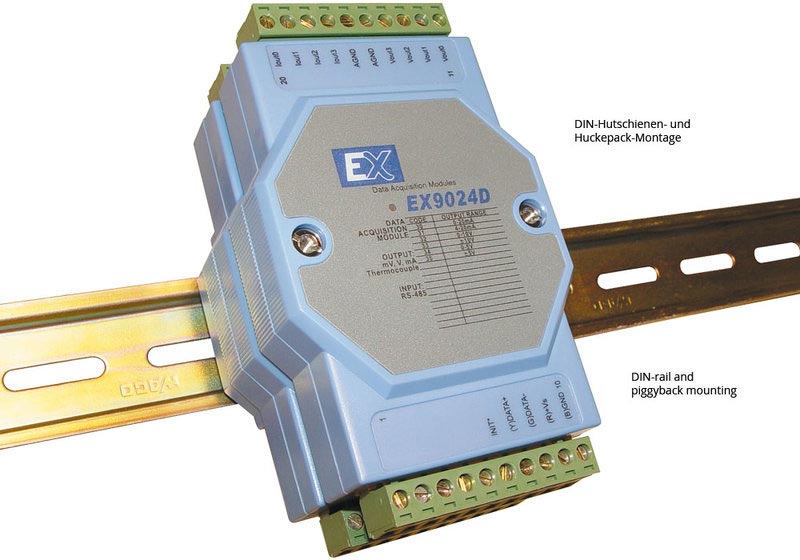

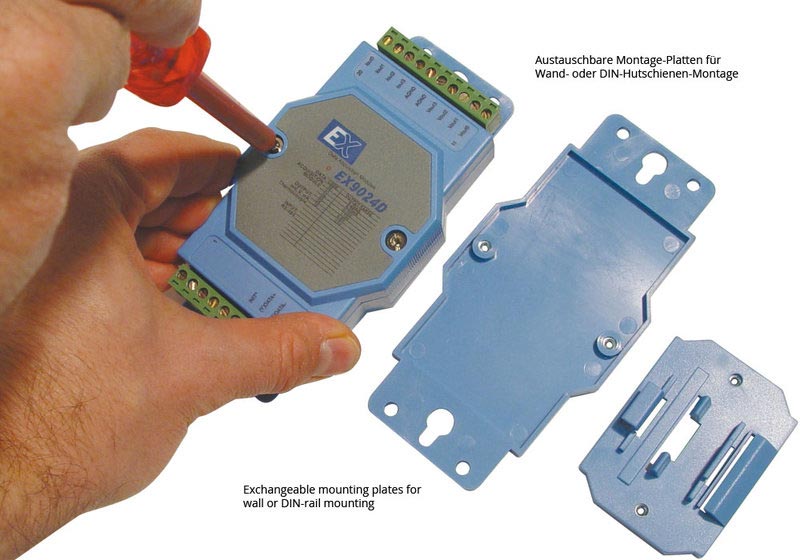

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

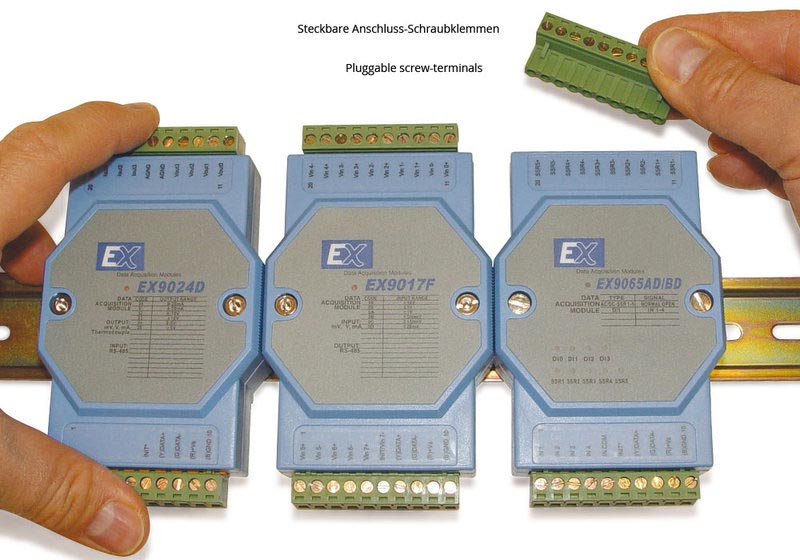

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9024
Available versionseX-9024 eX-9024-HM
Channels44
Resolution14 bit14 bit
Voltage range±5 V, ±10 V, 0...5 V, 0...10 V±5 V, ±10 V, 0...5 V, 0...10 V
Current range0...20 mA, 4...20 mA0...20 mA, 4...20 mA
Isolation-3000 V
Save value
Power-on value
Individual channel configuration-
Digital-I/O-4 single-ended inputs, isolated up to 3750 VRMS, level 0/1 max. 1 V/10...30 VDC
Power consumption2.0 W2.0 W
CommunicationRS485, 300...115200 bpsModbus-RTU (Slave) RS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
