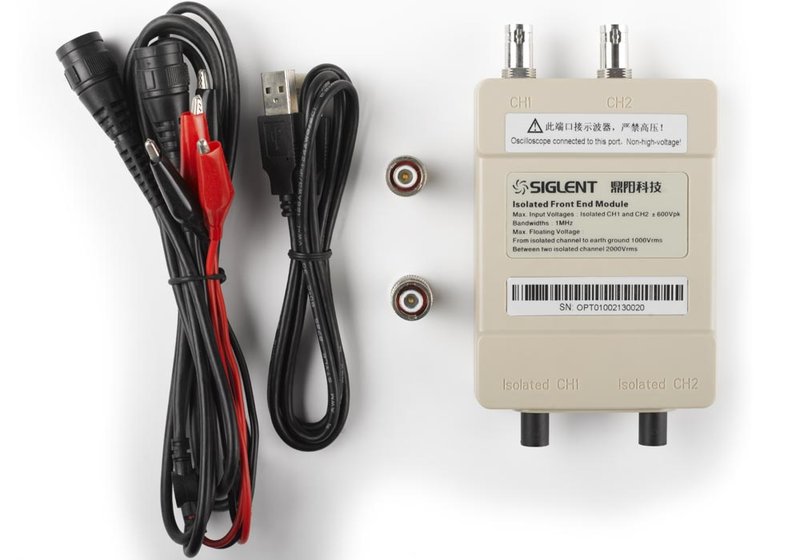

Siglent ISFE Oscilloscope Frontend Isolator
For isolation among ordinary oscilloscope channels: Isolation between the measured signal and ground. Use USB 5 V power supply; Plug&Play. Maximum input voltage ±600 Vpk. Output voltage range -3...+3 Vpk. Bandwidth ≤1 MHz. Max. isolated voltage to ground 1000 VRMS, max. isolated voltage between channels 2000 VRMS. Input impedance 10 MΩ.
