Description
Files/Downloads

Benefits

  • Share connected USB devices to multiple computers over any network.
  • Versions with 3, 6, or 12 port USB hubs.
  • Support a wide variety of USB devices.

AnyplaceUSB USB Over Ethernet With 3, 6, 12-Port USB Hub

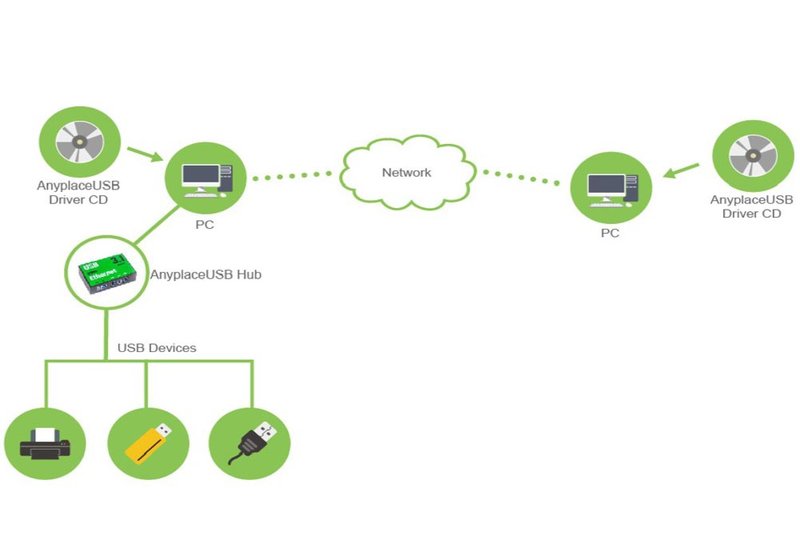

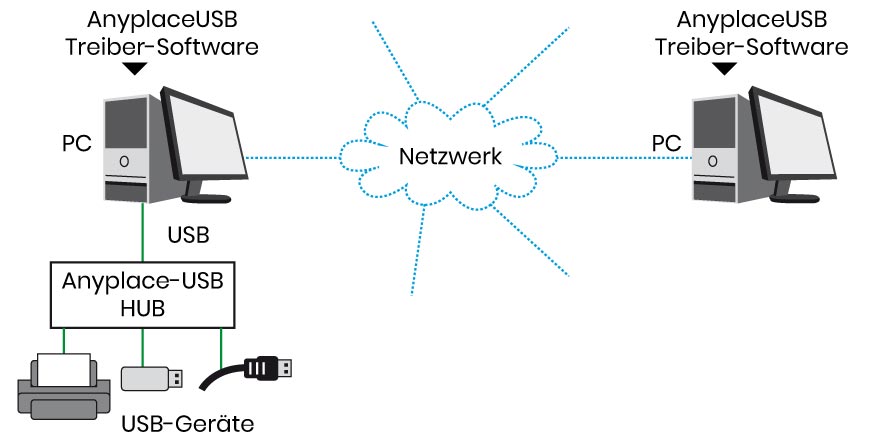

The Anyplace USB series empowers you to share connected USB devices to multiple computers over any network including Ethernet, WAN, VLAN, VPN and the internet. The hub is available with 3, 6, or 12 USB ports. It supports a wide variety of USB devices such as printers, webcams, conference cams, cameras, fingerprint readers, scanners, barcode scanners, ID card scanners, security dongles, USB dongles, hard drives and flash drives, USB to serial adapters, smartphones/tablets and many more.

Note: The AnyplaceUSB modules don't have an Ethernet connector. They are NOT connected directly with the Ethernet, but via a PC.

  • Empowers USB ports with USB device networking and sharing functionality:
  • Allows USB devices to be accessed and shared by multiple client computers over network or across the internet.
    Network-enables remote USB peripherals and devices as if they were connected directly to the local PC.
    Shares your USB devices and connects remote shared USB devices over a network at the same time
  • Provides 3, 6, or 12 networked USB 3.1 Gen. 1 over Ethernet device ports or 1x USB 2.0 over Ethernet.
  • USB Plug&Play and hot-swap functions are the same as onboard USB ports.
  • USB ports compliant with the USB 3.1 Gen. 1 specification (except MINI: USB 2.0).
  • Data rates: USB 3.1 Gen. 1 5 Gbps (super speed), USB 2.0 480 Mbps (high speed), USB 2.0 12 Mbps (full speed), and USB 1.1 1.5 Mbps (low speed).
  • User-friendly and convenient AnyplaceUSB software program with both server and client functionality.
  • Password authorization and traffic encryption for data security and safety.
  • Any authorized users in an office next door or in another country may remotely access your USB devices through AnyplaceUSB app client.
  • Supports standard USB webcam functions such as video transfer over a network (Internet/LAN/WAN).
  • Supports high speed isochronous USB devices.
  • Able to share USB security software protection dongles conveniently using features of AnyplaceUSB software program.
  • Redirects USB devices to virtual machines such as VMWare, Virtual PC, Citrix Xen Desktop, Microsoft Hyper-V, QEMU (KMV), etc. On a virtual machine, easy to establish a passthrough for USB devices from host OS to a guest OS.
  • USB 3.0 models: Multiple transaction translator (TT) architecture to each USB downstream (DS) port.
  • LEDs for power and USB status indication.
  • 3/6/12 port models: Includes a 12 VDC/5 A switching power adapter.
    Power supply with latch locking to the hub preventing from accidental disconnection.
    Individual port power management.
    Overcurrent protection.
  • 3/6/12 port models: Industrial-grade device with SECC metal case for DIN rail mounting. Two mounting holes on bottom case.

Model Overview

Ordering codeModelNumber of portsTypePowerDimensions (mm)

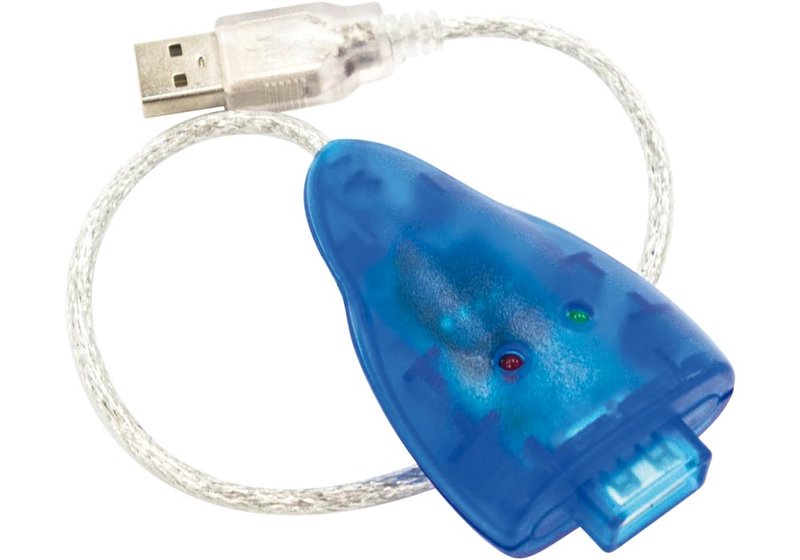

856011AnyplaceUSB-MINI1x upstream, 1x downstreamUSB 2.01)2)USB over EthernetUSB bus-powered42 x 70 x 23; 32 g

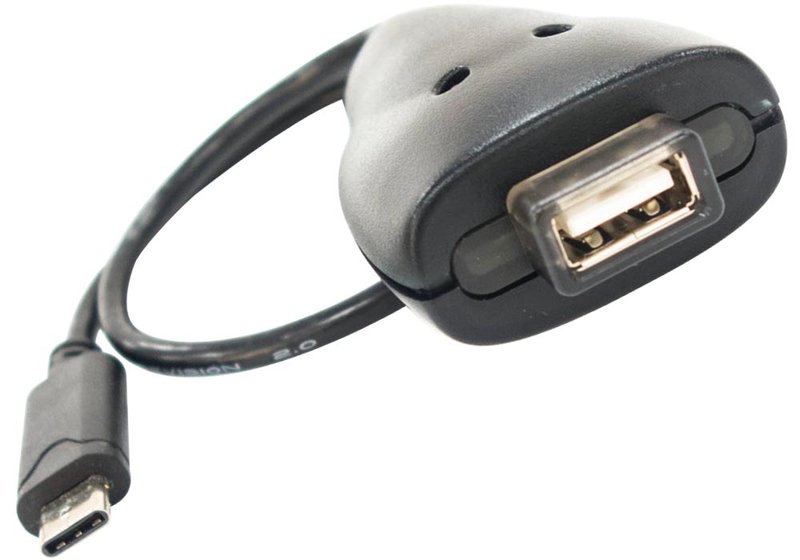

856012AnyplaceUSB-MINIC5)1x upstream, 1x downstreamUSB 2.01)2)USB over EthernetUSB bus-powered42 x 70 x 23; 30 g
853031AnyplaceUSB-H31x upstream, 3x downstreamUSB 3.1 Gen. 13)4)USB over Ethernet9...30 VDC92 x 58 x 29; 210 g

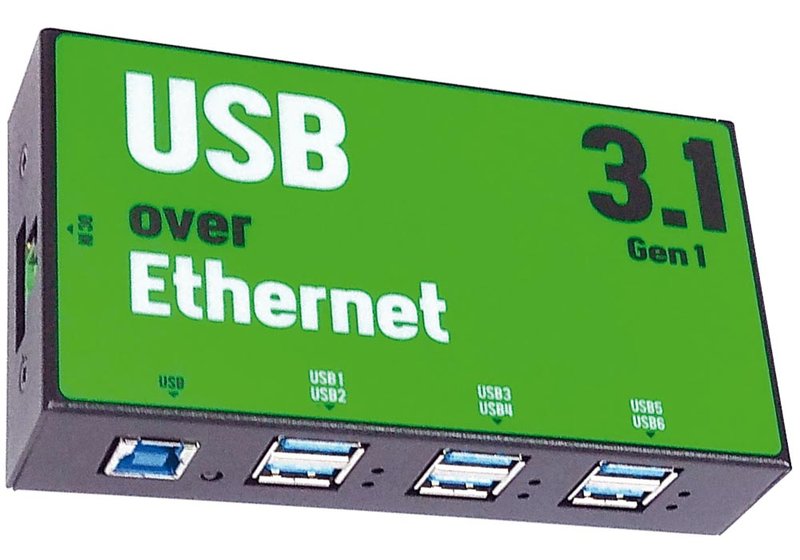

853061AnyplaceUSB-H61x upstream, 6x downstreamUSB 3.1 Gen. 13)4)USB over Ethernet9...30 VDC123 x 68 x 30; 290 g

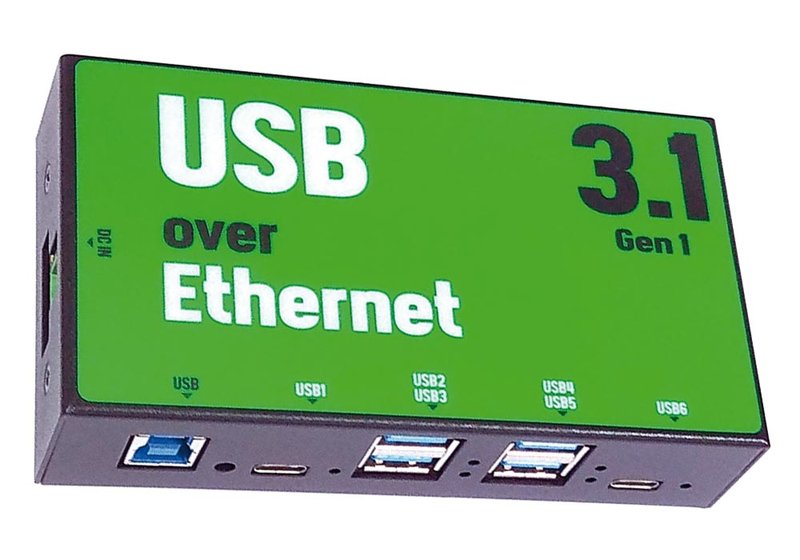

853062AnyplaceUSB-H6C5)1x upstream, 6x downstreamUSB 3.1 Gen. 13)4)USB over Ethernet9...30 VDC123 x 68 x 30; 290 g

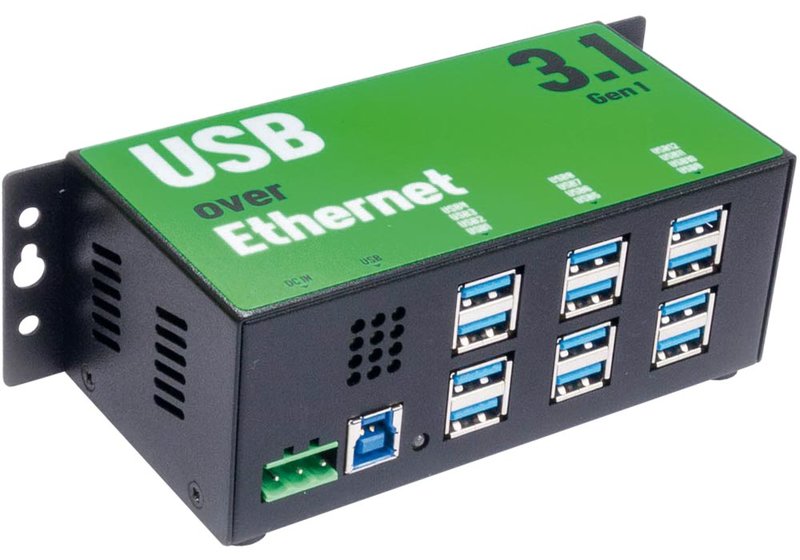

853091AnyplaceUSB-H121x upstream, 12x downstreamUSB 3.1 Gen. 13)4)USB over Ethernet9...30 VDC155 x 65 x 30; 53 g

1) Compatible with USB 1.1.
2) USB 2.0 480 Mbps HighSpeed, USB 2.0 12 Mbps FullSpeed, USB 1.1 1.5 Mbps LowSpeed
3) Compatible with USB 2.0 and 2.2; not compatible with PC-USB 3.0 oscilloscopes from PicoScope.
4) 5 Gbps, SuperSpeed USB 3.1, 480 Mbps, HighSpeed USB 2.0, 12 Mbps, FullSpeed USB 2.0, 5 Mbps, LowSpeed USB 1.1.
5) With USB type C connector or for the 6-port version 2x USB type C, 4x USB type A.

Included: Anyplace module (one of the versions), 12 VDC/1 A external power adaptor.
