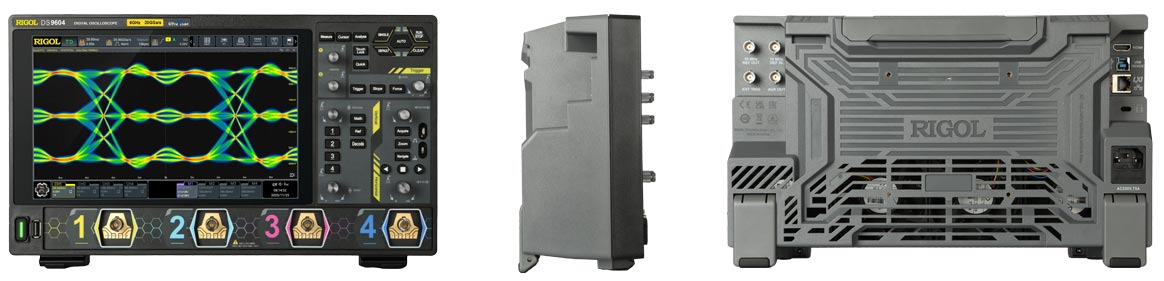

Rigol Oscilloscopes - Analysis Tools for Engineers of Today
Rigol offers oscilloscope solutions for the high demands of today's engineers and technicians - from simple visualization to detailed analysis. The wide range of models includes devices for hobbyists, education, industry, IoT developers up to designers of high-end embedded systems.
Advantages - UltraVision Debugging Oscilloscopes for the Challenges of Today's Technology!
- Wide range of models from low-cost to high-end.
- Depending on the model up to 5 GHz bandwidth and 20 GS/s.
- Many flexible functions as standard or as an option if required.
- Models with touch-screen.
- Multifunctional models with signal generator.
- Mixed-signal models with on-board logic analysis.
- Serial bus decoding and protocol analysis.

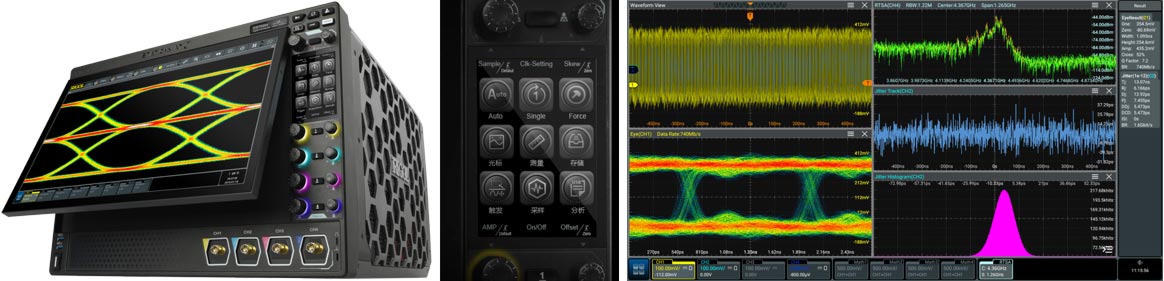

Rigol STATIONMAX DS70000 Series
Model | Channels | Bandwidth | Max. analog sample rate | Max. memory depth | Max. waveform capture rate | More features and optiones | Touchscreen | Interfaces |
▸STATIONMAX DS70304 | 4 | 3 GHz | Single channel 20 GS/s, half-channel/all channels 10 GS/s Vertical resolution selectable 8...16 bit |
Standard: 500 Mpts; option: 2 Gpts (single channel), 1 Gpts (half-channel/all channels) | ≥1,000,000 Wfms/s | Serial decoding, digital voltmeter, precision frequency counter, "standard" and realtime spectrum analysis (RTSA) | 15.6"/39.6 cm tilting, capacitive color display with gesture control (main display) 3.5"/8.9 cm touch display for device settings/user-defined keyboard control; HDMI video port |
USB 3.0 host (2 on front panel, 2 rear) and device (1 on front panel, TMC protocol); 10/100/1000 Mbps Ethernet/LAN, LXI-C, web remote control |
▸STATIONMAX DS70504 | 4 | 5 GHz |
Rigol Series MSO8000
Model | Channels | Bandwidth | Max. analog sample rate | Max. memory depth | Max. waveform capture rate | Arb. waveform generator | Touchscreen | Interface | Probes incl. |
▸MSO8064 | 4+16* | 600 MHz | 10 GS/s (single-channel), 5 GS/s (half-channel), 2.5 GS/s (all channels) | Analog channels: 500 Mpts (single-channel), 250 Mpts (half-channel), 125 Mpts (all channels); digital channel: 62.5 Mpts (all channels) | ≥600,000 wfms/s; hardware real-time waveform record and replay ≥450,000 wfms (single-channel) | Optional 2 channels, 25 MHz, 200 MS/s, 14 bit, modulation, sweep, burst | ✓ | USB, Ethernet/LAN/LXI, HDMI | 4x RP3500A (500 MHz) |
▸MSO8104 | 4+16* | 1 GHz | 4x RP3500A (500 MHz), 2x RP6150A (1.5 GHz) |
||||||
▸MSO8204 | 4+16* | 2 GHz | 4x RP3500A (500 MHz), 2x RP6150A (1.5 GHz) |
* 4 analog channels and 16 digital/logic channels. For use of the digital channels (logic analyzer/mixed signal function) optional logic probes required.
Rigol Series DS/MSO7000
Model | Channels | Bandwidth | Max. analog sample rate | Max. analog memory depth | Max. waveform capture rate | Max. digital sample rate | Max. digital memory depth | Arb. waveform generator | Touchscreen | Interfaces | Probes incl. |
▸DS7014 | 4 | 100 MHz | 10 GS/s (single channel), 5 GS/s (dual channel), 2.5 GS/s (four channel). 8 bit | 100 Mpts (optional 250 or 500 Mpts) | 600,000 wfms/s; Max. 450,000 frames of waveform recording |
- | - | - | ✓ | USB, Ethernet/LAN/LXI, HDMI | 4x RP3500A |
▸DS7024 | 4 | 200 MHz | |||||||||
▸DS7034 | 4 | 350 MHz | |||||||||
▸DS7054 | 4 | 500 MHz | |||||||||
▸MSO7014 | 4+16* | 100 MHz | 10 GS/s (single channel), 5 GS/s (dual channel), 2.5 GS/s (four channel). 8 bit | 100 Mpts (optional 250 or 500 Mpts) | 600,000 wfms/s; Max. 450,000 frames of waveform recording |
1.25 GS/s | 62.5 Mpts | Optional, 2 channels, 25 MHz, 200 MS/s, 14 bit, modulations, sweep, burst | ✓ | USB, Ethernet/LAN/LXI, HDMI | 4x RP3500A, 1x RPL2316 |
▸MSO7024 | 4+16* | 200 MHz | |||||||||
▸MSO7034 | 4+16* | 350 MHz | |||||||||
▸MSO7054 | 4+16* | 500 MHz |
* 4 analog channels and 16 digital/logic channels.
Rigol Series MSO5000
Model | Channels | Bandwidth | Max. analog sample rate | Max. memory depth | Max. waveform capture rate | Arb. waveform generator | Touchscreen | Interfaces | Probes incl. |
▸MSO5152-E | 2 + 16* | 150 MHz | 4 GS/s (one channel), 2 GS/s (all channels) | Analog channels 50 Mpts/optional 100 Mpts one channel, 25 Mpts/optional 50 Mpts all channels; digital channels 25 Mpts (all channels)* |
≥300,000 Wfms/s; hardware realtime waveform recording and playing ≥450,000 Wfms (one channel) | Optional 2 channels, 25 MHz, 200 MS/s, 14 bit, modulation, sweep, burst | ✓ | USB 2.0 Host & Device, Ethernet/LAN/LXI | 2 passive probes PVP2350 (350 MHz) incl. |
▸MSO5072 | 2 + 16* | 70 MHz | 8 GS/s (single channel), 2 GS/s (all channels) | Analog channels 100 Mpts, optional 200 Mpts (single channel)/100 Mpts (half-channel)/50 Mpts (all channels); digital channels 25 Mpts (all channels)* |
≥500,000 Wfms/s; hardware realtime waveform recording and playing ≥450,000 Wfms (single channel) | Optional 2 channels, 25 MHz, 200 MS/s, 14 bit, modulations, sweep, burst | ✓ | USB 2.0 Host & Device, Ethernet/LAN/LXI | 2 or 4 passive probes PVP2350 (350 MHz) incl. |
▸MSO5074 | 4+16* | 70 MHz | 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels) | ||||||
▸MSO5102 | 2 + 16* | 100 MHz | 8 GS/s (single channel), 2 GS/s (all channels) | ||||||
▸MSO5104 | 4+16* | 100 MHz | 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels) | ||||||
▸MSO5204 | 4+16* | 200 MHz | 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels) | ||||||
▸MSO5354 | 4+16* | 350 MHz | 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels) |
* 2 or 4 analog channels and 16 digital/logic channels. For use of the digital channels (logic analyzer/mixed signal function) optional logic probes required.
Rigol DHO Series 12 bit
Modell | Channels | Bandwidth | Max. analog sample rate | Max. memory depth | Max. waveform capture rate | Touchscreen | Interfaces | Probes incl. |
▸DHO5054 | 4 | 500 MHz | 4 GS/s at all channels | 500 Mpts (single-channel and half-channel), 250 Mpts (full-channel) | 200,000 wfms/s (in vector mode), 1,000,000 wfms/s (in record mode) | ✓ | USB 3.0 host and device, LAN/Ethernet/LXI | 4/6/8 passive probes RP3500A, depending on modell |
▸DHO5104 | 4 | 1 GHz | ||||||
▸DHO5058 | 8 | 500 MHz | 4 GS/s (single-channel and half-channel), 2 GS/s (full-channel) | |||||
▸DHO5108 | 8 | 1 GHz | ||||||
▸MHO5054 | 4+16* | 500 MHz | ||||||
▸MHO5104 | 4+16* | 1 GHz | ||||||
▸MHO5056 | 6+16* | 500 MHz | ||||||
▸MHO5106 | 6+16* | 1 GHz | ||||||

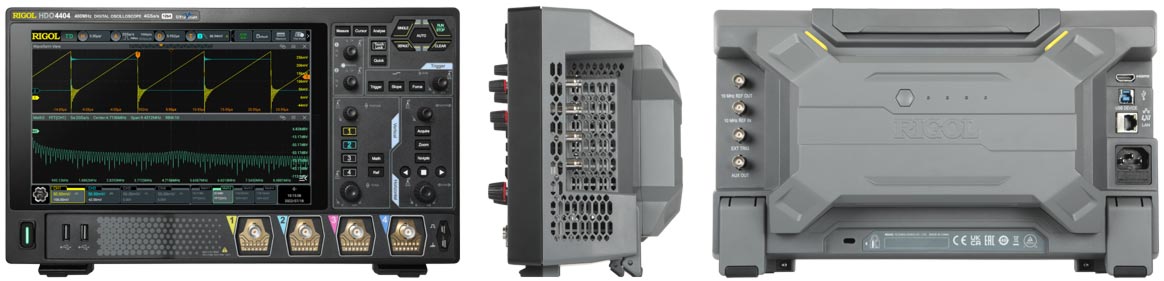

▸DHO4204 | 4 | 200 MHz | 4 GS/s (single channel), 2 GS/s (half channel), 1 GS/s (all channels) | Standard: 250 Mpts (single channel), 125 Mpts (half channel), 62.5 Mpts (all channels); optional: 500 Mpts (single channel), 250 Mpts (half channel), 125 Mpts (all channels) |
50,000 Wfms/s (vector mode), 1,500,000 wfms/s (UltraAcquire mode); up to 500,000 frames realtime waveform record and replay |
✓ | USB 3.0 host and device, LAN/Ethernet/LXI | 4 passive HighZ probes PVP2350/350 MHz |
▸DHO4404 | 4 | 400 MHz | 4 passive HighZ probes RP3500A/500 MHz | |||||
▸DHO4804 | 4 | 800 MHz | ||||||
▸DHO1072 | 2 | 70 MHz | 2-channel models: 2 GS/s (single channel), 1 GS/s (all channel); 4-channel models: 2 GS/s (single channel), 1 GS/s (half channels), 500 MS/s (all channels) |
2-channel models: 50 Mpts, optional 100 Mpts (single channel), 25 Mpts, optional 50 Mpts (all channels); 4-channel models: 50 Mpts, optional 100 Mpts (single channel), 25 Mpts, optional 50 Mpts (half channels), 12.5 Mpts, optional 25 Mpts (all channels) |
50,000 Wfms/s (vector mode), 1,500,000 wfms/s (UltraAcquire modus) | ✓ | USB 3.0 Host and Device, LAN/Ethernet/LXI | 2/4 passiv probes depending on model |
▸DHO1074 | 4 | 70 MHz | ||||||
▸DHO1102 | 2 | 100 MHz | ||||||
▸DHO1104 | 4 | 100 MHz | ||||||
▸DHO1202 | 2 | 200 MHz | ||||||
▸DHO1204 | 4 | 200 MHz | ||||||
▸DHO914 | 4+16* | 125 MHz | One channel 1.25 GS/s, two channels 625 MS/s, full channels 312.5 MS/s; 16 digital/logic channels (MSO); Models "-S": Arbitrary function generator output Bode plot function |
One channel 50 Mpts, two channels 25 Mpts, full channels 10 Mpts | 30,000 Wfms/s (vector mode), 1,000,000 Wfms/s (UltraAcquire mode); up to 500,000 frames realtime waveform record and replay |
✓ | USB 2.0 Host and Device, LAN/Ethernet/LXI | 4x passive probe (350 MHz/PVP2350) |
▸DHO914S | 4+16* | 125 MHz | ||||||
▸DHO924 | 4+16* | 250 MHz | ||||||
▸DHO924S | 4+16* | 250 MHz | ||||||
▸DHO802 | 2 | 70 MHz | One channel 1.25 GS/s, two channels (or full channels for 2-channel models) 625 MS/s, full channels (4-channel) 312.5 MS/s | One channel 25 Mpts, two channels (or full channels for 2-channel modelsn) 10 Mpts, full channels (4-channel) 1 Mpts | 30,000 Wfms/s (vector mode), 1,000,000 Wfms/s (UltraAcquire mode); up to 500,000 frames realtime waveform record and replay |
✓ | USB 2.0 Host and Device, LAN/Ethernet/LXI | 2x/4x passive probe (150 MHz/PVP3150) |
▸DHO804 | 4 | 70 MHz | ||||||
▸DHO812 | 2 | 100 MHz | ||||||
▸DHO814 | 4 | 100 MHz |
* analog channels and 16 digital/logic channels. For use of the digital channels (logic analyzer/mixed signal function) optional logic probes required.
Rigol Series DS2000/MSO2000
Model | Channels | Bandwidth | Max. analog sample rate | Max. memory depth | Max. waveform capture rate | Max. digital sample rate | Integrated 2-channel 25 MHz signal source | Probes incl. |
▸DS2102A | 2 | 100 MHz | 2 GS/s (one channel), 1 GS/s two channels) | Analog: 14/7 Mpts (1/2 channels) standard, 56/28 Mpts (1/2 channels) optional | 50,000 Wfms/s | - | - | RP3300A 350 MHz probe (2x) |
▸DS2202A | 200 MHz | - | ||||||
▸DS2302A | 300 MHz | - | ||||||
▸MSO2102A | 2 + 16* | 100 MHz | Analog: 14/7 Mpts (1/2 channels) standard, 56/28 Mpts (1/2 channels) optional. Digital: 3,5/7 Mpts (16/8 channels) standard, 14/28 Mpts (16/8 channels) optional |
1 GS/s (8 channels), 500 MS/s (16 channels) | - | RP3300A 350 MHz probe (2x), 1 set RPL2316 logic probes | ||
▸MSO2102A-S | 100 MHz | ✓ | ||||||
▸MSO2202A | 200 MHz | - | ||||||
▸MSO2202A-S | 200 MHz | ✓ | ||||||
▸MSO2302A | 300 MHz | - | ||||||
▸MSO2302A-S | 300 MHz | ✓ |
*2 or 4 analog channels and 16 digital/logic channels.
Rigol Series DS1000Z/MSO1000Z
Model | Channels | Bandwidth | Max. analog sample rate | Max. memory depth | Max. waveform capture rate | Max. digital sample rate | Integrated 2-channel 25 MHz signal source | Probes incl. |
▸DS1202Z-E | 2 | 200 MHz | 1 GS/s (one channel), 500 MS/s (2 channels) |
Analog: 24 Mpts (one channel), 12 Mpts (two channels) | 30,000 Wfms/s, 60,000 frames realtime waveform record and replay | - | - | PVP2350 probes (2x) |
▸DS1054Z | 4 | 50 MHz | 1 GS/s (one channel), 500 MS/s (2 channels), 250 MS/s (full-channel) |
Analog: 12 Mpts (standard), 24 Mpts (optional) | 30,000 Wfms/s | - | - | RP2200 150 MHz probe (4x) |
▸DS1074Z+ | 4** | 70 MHz | - | |||||
▸DS1074Z-S+ | 4** | 70 MHz | ✓ | |||||
▸DS1104Z+ | 4** | 100 MHz | - | |||||
▸DS1104Z-S+ | 4** | 100 MHz | ✓ |
**MSO ready: Can be upgraded with additional kit (see accessories) to mixed signal version - 4 analog channels and 16 digital/logic channels.
