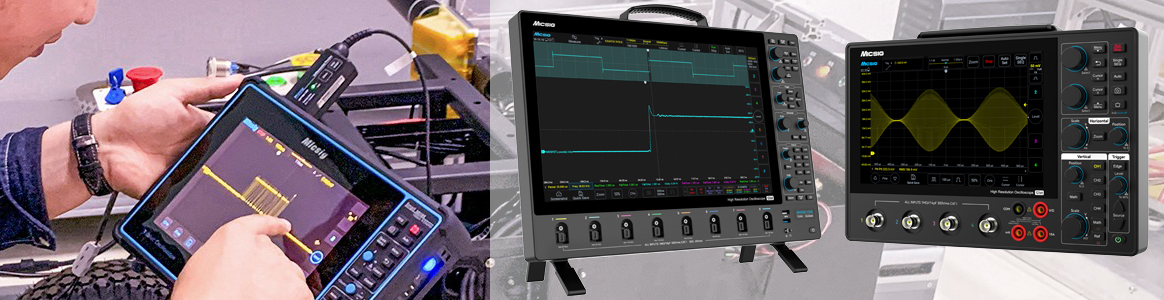

Micsig Oscilloscopes - Compact and Ultra-thin

Micsig oscilloscopes

Micsig oscilloscopes are portable and space-saving: they are ultra-thin and compact with wide touchscreens. Also available: tablet and modular oscilloscopes.

Model Overview T&M, 8 bit

Series ▸STO ▸TO ▸VTO ▸ETO ▸MDO
Model STO2002 STO1004 TO2002 TO1004 TO2004 TO3004 VTO2004 ETO3504 ETO5004 MDO2504 MDO3504 MDO5004
Analog channels 2 4 2 4 4 4 4
Bandwidth 200 MHz 100 MHz 200 MHz 100 MHz 200 MHz 300 MHz 200 MHz 350 MHz 500 MHz 250 MHz 350 MHz 500 MHz
Sample rate 1 GS/s 1 GS/s 2 GS/s 1 G/Ss 3 GS/s 3 GS/s
Resolution 8 bit 8 bit 8 bit 8 bit 8 bit
Max. waveform capture rate 130,000 wfms/s 78,000 wfms/s 300,000 wfms/s n. s. 230,000 wfms/s 230,000 wfms/s
Memory depth 70 MPts 110 MPts 220 MPts 50 MPts 360 MPts 360 MPts
Display 8"/20.3 cm touch; HDMI 10.1"/25.7 cm touch (tablet); HDMI - (Android mobile device) 14"/35.6 cm touch (tablet); HMDI 14"/35.6 cm touch; HMDI
Interfaces USB, WLAN USB, WLAN USB (Android mobile device) USB, LAN USB, LAN

Model Overview T&M, 12 bit

Series ▸MHO1 ▸MHO3 ▸MO3 ▸MHO6
Model MHO14-100 MHO14-200 MHO3-2504 MHO3-3504 MHO3-5004 MO3-250 MO3-350 MO3-500 MHO68-350 MHO68-500 MHO68-1000
Analog channels 4 4 4 8
Bandwidth 100 MHz 200 MHz 250 MHz 350 MHz 500 MHz 250 MHz 350 MHz 500 MHz 350 MHz 500 MHz 1 GHz
Sample rate 1 GS/s 3 GS/s 3 GS/s 6 GS/s
Resolution 12 bit 12 bit 12 bit 12 bit
Max. waveform capture rate n. s. 230,000 wfms/s 230,000 wfms/s n. s.
Memory depth 110 MPts 360 MPts 360 MPts 1800 MPts
Display 8"/20.3 cm touch; HDMI 14"/35.6 cm touch; HDMI -; HDMI 16"/40.6 cm touch; HDMI
Interfaces USB, LAN USB, LAN USB, LAN, SFP+ optical interface USB, LAN

Model Overview Automotive

Series ▸SATO ▸ATO ▸VATO
Model SATO2002 SATO1004 ATO2002 ATO1004 ATO2004 ATO3004 VATO2004
Analog channels 2 4 2 4 4
Bandwidth 200 MHz 100 MHz 200 MHz 100 MHz 200 MHz 300 MHz 200 MHz
Sample rate 1 GS/s 1 GS/s 2 GS/s 1 GS/s
Resolution 8 bit 8 bit 8 bit
Max. waveform capture rate 130,000 wfms/s 78,000 wfms/s 300,000 wfms/s n. s.
Memory depth 70 MPts 110 MPts 220 MPts 50 MPts
Display 8"/20.3 cm touch; HDMI 10.1"/25.7 cm touch (tablet); HDMI - (Android mobile device)
Interfaces USB, WLAN USB, WLAN USB (Android mobile device)
