Siglent Oscilloscopes - Big Features for Little Money

Siglent oscilloscopes

True to the slogan "The Best Value in Electronic Test & Measurement", Siglent offers technically advanced oscilloscopes with high-end professional features at an optimal price-performance ratio.

Benefits

  • 2- and 4-channel oscilloscopes up to 1 GHz, 110.000 Wfm/s waveform capture rate.

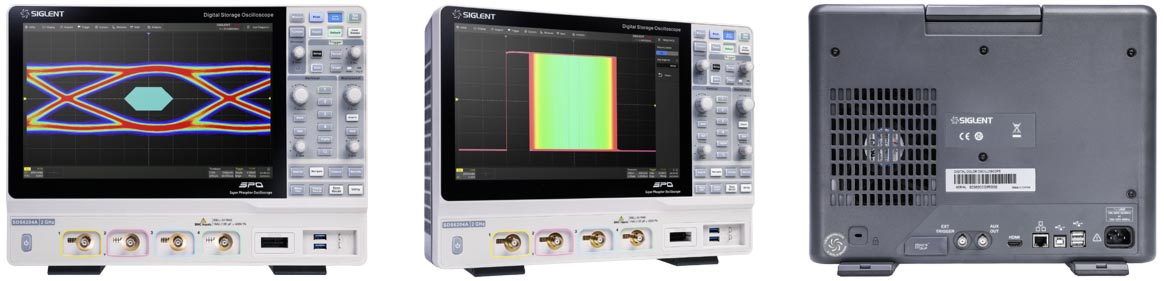

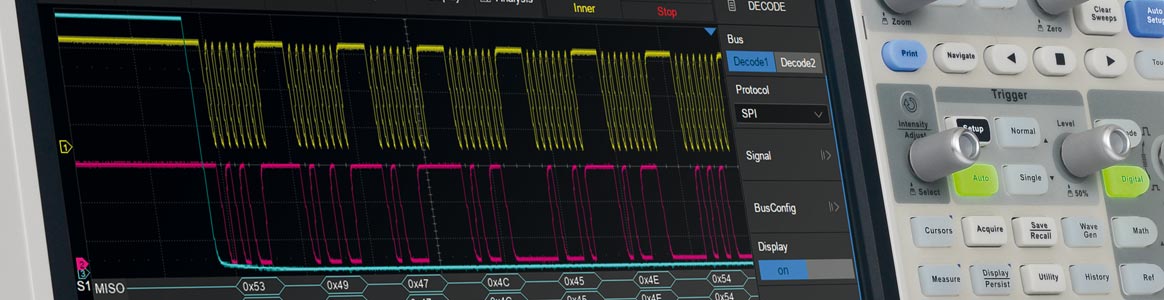

  • Super phosphor technology with 256 intensity levels and color temperature display operation.
  • Deep memory.
  • Extensive feature and options/upgrades: Bode diagram, waveform generator, serial bus triggering/decoding, WIFI adapter, and much more.
  • Mixed-signal oscilloscopes.
  • USB and Ethernet/LAN/LXI interfaces, optional USB-to-GPIB converter.

Model Overview

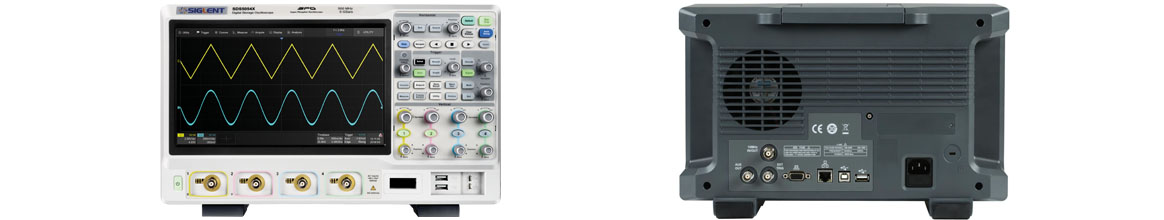

Series SDS5000X

Siglent series 5000 oscilloscopes

Model Channels Bandwidth Max. sample rate Waveform capture rate Memory depth Generator Display Interface
SDS5032X 2+16* 350 MHz max. 5 GS/s (interleaved), 2.5 GS/s (non-interleaved) 110,000 Wfm/s (normal mode), 480,000 wfm/s (sequence mode) 2-channel devices: 250 Mpts (1 channel in use); 125 Mpts (2 channels in use); 4-channel devices: 250 Mpts (1-2 channel in use); 125 Mpts (3-4 channels in use) Optional (SAG1021 USB module): 1 channel, max. 25 MHz (sine); arbitrary: 5 MHz, 125 MS/s, 14 bit, wave length 16 kpts 10,1"/25.7 cm touch screen 3x USB host, 1x USB device, Ethernet/LAN, VGA output; optional USB-to-GPIB adaptor
SDS5034X 4+16*
SDS5052X 2+16* 500 MHz
SDS5054X 4+16*
SDS5102X 2+16* 1 GHz
SDS5104X 4+16*

* For MSO option/upgrade: 16 logic channels for mixed-signal use.

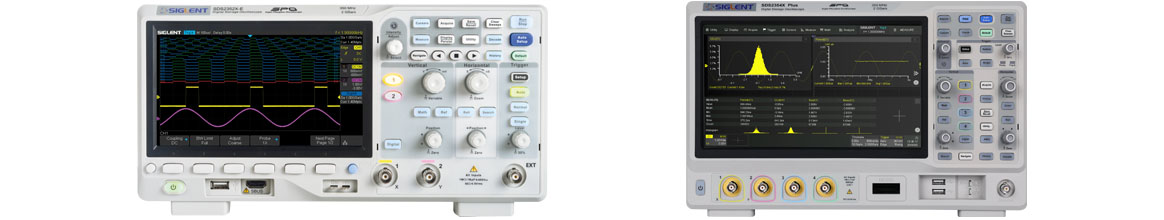

Series SDS2000X

Siglent series 2000 oscilloscopes

Model Channels Bandwidth Max. sample rate Waveform capture rate Memory depth Generator Display Interface
SDS2202X-E 2+16* 200 MHz max. 2 GS/s (single channel), 1 GS/s (two channels) 110,000 Wfm/s (normal mode), 400,000 wfm/s (sequence mode) 28 Mpts (1 channel in use); 14 Mpts (2 channels in use) Optional (SAG1021 USB module): 1 channel, 25 MHz (sine); arbitrary: 5 MHz, 125 MS/s, 14 bit, wave length 16 kpts 7"/17.8 cm TFT-LCD 2x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor; optional USB-to-Wifi adaptor
SDS2352X-E 2+16* 350 MHz
SDS2102X-Plus 2+16* 100 MHz 2 GS/s (interleaving mode), 1 GS/s (non-interleaving mode) 120,000 Wfm/s (normal mode), 500,000 Wfm/s (sequence mode) 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode) Optional: 1 channel, max. 50 MHz (sine); arbitrary: 5 MHz, 14 bit, 125 MS/s, 16 kpts wave length 10,1"/25,7 cm touch screen USB, Ethernet/LAN; optional USB-to-GPIB adaptor
SDS2104X-Plus 4+16* 100 MHz
SDS2204X-Plus 4+16* 200 MHz
SDS2354X-Plus 4+16* 350 MHz

* For MSO option/upgrade: 16 logic channels for mixed-signal use.

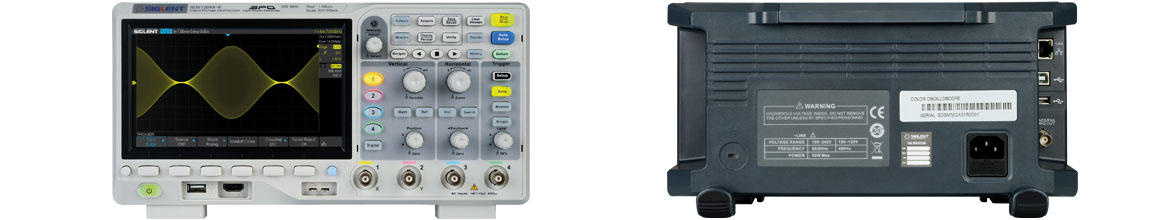

Series SDS1000X

Siglent series 1000 oscilloscopes

Model Channels Bandwidth Max. sample rate Waveform capture rate Memory depth Generator Display Interface
SDS1104X-U 4 100 MHz 1 GS/s (one channel), 500 MS/s (two channels), 250 MS/s (four channels) 100,000 Wfms/s (normal mode), 400,000 Wfms/s (sequence mode) 14 Mpts max. - 7"/17.8 cm TFT-LCD 1x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor
SDS1202X-E 2 200 MHz Single 1 GS/s ADCs, when all channels are enabled, each channel has a maximum sample rate of 500 MS/s. When a single channel per pair is active, that channel has sample rate of 1 GS/s 100,000 Wfm/s (normal mode), 400,000 Wfm/s (sequence mode) 14 Mpts (1 channel in use); 7 Mpts (2 channels in use) - 7"/17.8 cm TFT-LCD 1x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor
SDS1104X-E 4+16* 100 MHz Two 1 GS/s ADCs, when all channels are enabled, each channel has a maximum sample rate of 500 MS/s. When a single channel per pair is active, that channel has sample rate of 1 GS/s 14 Mpts (1-2 channels in use); 7 Mpts (3-4 channels in use) Optional (SAG1021 USB module): 1 channel, max. 25 MHz (sine); arbitrary: 5 MHz, 125 MS/s, 14 bit, wave length 16 kpts 2x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor; optional USB-to-Wifi adaptor
SDS1204X-E 4+16* 200 MHz
