Benefits of the eX-9065 with 5 Type A AC or DC Solid State Relays/SSR
- 5 relays type A, AC or DC SSR/solid state relays.
- Additional 4 digital inputs.

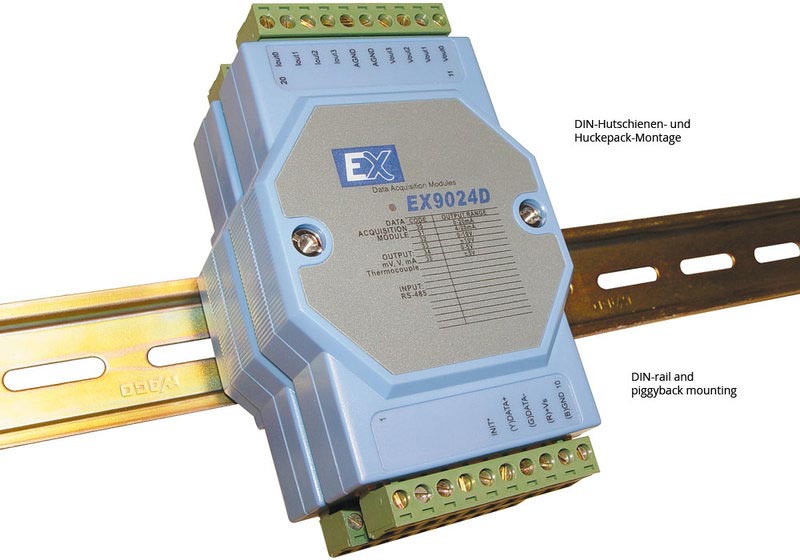

- DIN-rail/wall mountable modules.
eX-9065 5 Relays (Type A, AC or DC SSR), for RS485
The eX-9065 industrial modules are the ideal solution for decentral/distributed, PC-controlled switching of signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.
- Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
- 5 relays. Type A (5.0 A/250 VAC, 5.0 A/30 VAC) or AC-SSR (1.0 A/24...265 V) or DC-SSR (1.0 A/3...30 V).

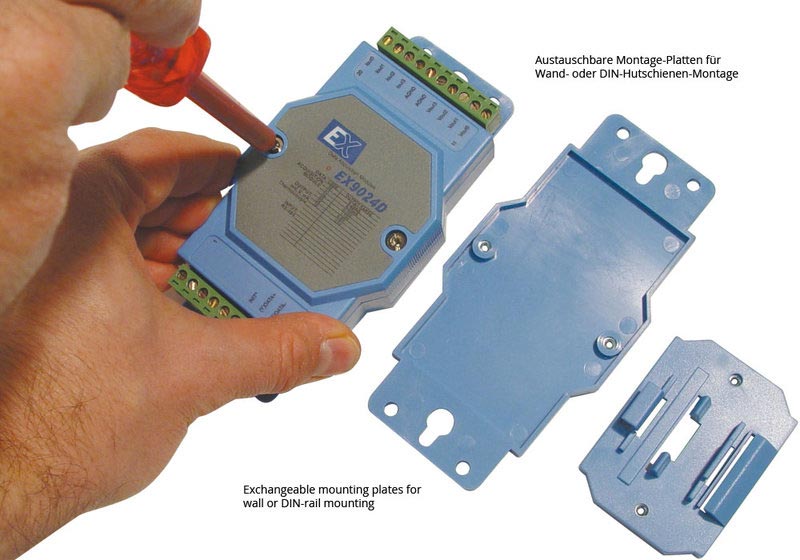

- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
Model Overview
| Model | eX-9065 | ||||||||
| Available versions | eX-9065D | eX-9065HD | eX-9065HD-M | eX-9065AD | eX-9065AHD | eX-9065AHD-M | eX-9065BD | eX-9065BHD | eX-9065BHD-M |
| Relay outputs | 5 relays type A | 5 relays AC-SSR (normal open) | 5 relays DC-SSR (normal open) | ||||||
| On/off response time | 6 ms/3 ms | 1 ms/2 ms | 1 ms/1 | ||||||
| Max. load | 5.0 A/250 VAC, 5.0 A/3 VAC | 1.0 A/24...265 V | 1.0 A/3...30 V | ||||||
| Break down voltage | 4000 V | 2500 VRMS | 2500 VRMS | ||||||
| Digital inputs | 4 single-ended, log. 0: 0...1 V, log. 1: 4...30 V | ||||||||
| Isolation | 3750 VRMS (common source) | ||||||||
| Power consumption | 2.2 W | 1.6 W | 1.5 W | ||||||
| LED indicator per channel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Communication | RS485, 300...115200 bps | RS485, 300...115200 bps | Modbus-RTU RS485, 300...115200 bps | RS485, 300...115200 bps | RS485, 300...115200 bps | Modbus-RTU RS485, 300...115200 bps | RS485, 300...115200 bps | RS485, 300...115200 bps | Modbus-RTU RS485, 300...115200 bps |
SSR = Solid state relays
Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
