eX-9510 RS485 Repeater
Description
Files/Downloads
Benefits of the eX-9510 Series Repeaters for Serial RS485 and RS422
- Repeater for RS485 and RS422.
- Signal amplifier, extends the distance.
- 3000 V isolation.
eX-9510 RS485 Repeater
These repeaters extend your RS485 networking system at your PC. The modules match the eX series but can also be used with other RS485 systems.
- RS485/422 repeaters.
- Supply power +10...+30 VDC.

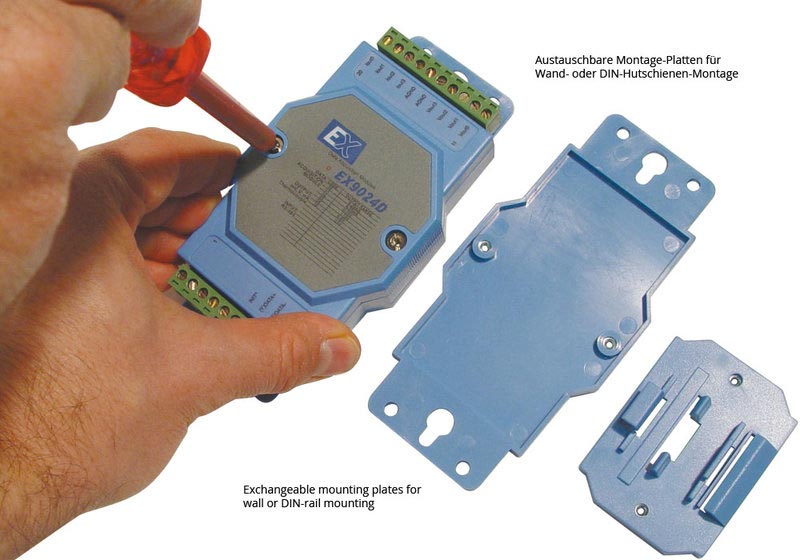

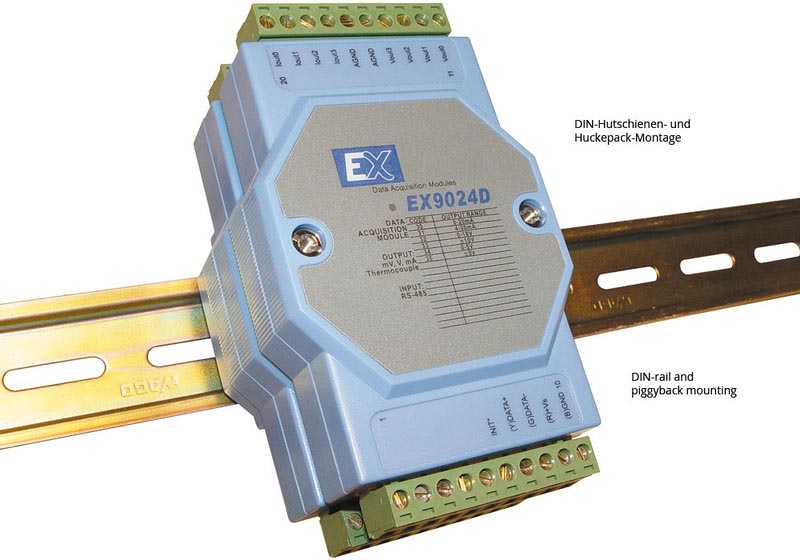

- DIN-rail mountable and wall mountable.
- More devices at the RS485 network.
- RS485 transmission distance 2.1 km at 9600 bps, 2.7 km at 4800 bps, 3.6 km at 2400 bps.
Model Overview
| Model | eX-9510 | eX-9510A |
| Type | RS485 Repeater | RS422, RS485 Repeater |
| Side 1 | RS485, 300...115,200 bps. AutoPro: Auto baudrate switching, transient suppression on the datalines | RS422 full-duplex, RS485 300...115,200 bps. AutoPro: Auto baudrate switching, RS485: Transient suppression on the data lines |
| Side 2 | RS485 | RS422 full-duplex, RS485 |
| Isolation | 3000 V | |
| Power consumption | 2.2 W | |
| Size | ca. 11 x 7.2 (cm) | |
| Connectors | Screw terminals | |
Included: Module, DIN-rail and wall-mount brackets, instructions for use, driver CD.
