eX-9036 - 6 Channels RTD Inputs, for RS485

eX-9036 - RS485 6-channel RTD
additional images:
progressive price
taking 1 pcs
from
€ 245,50
taking 5 pcs
from
€ 235,68
taking 20 pcs
from
€ 225,86
taking 50 pcs
from
€ 216,04
taking 200 pcs
from
€ 206,22
Price
starting 245,50*
starting € 292,15 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 6 differential RTD inputs Pt, Ni, Cu, 2/3/4-wire, 16 bit.
  • Models with individual channel configuration.
  • Compact modules, wall/DIN-rail mountable.

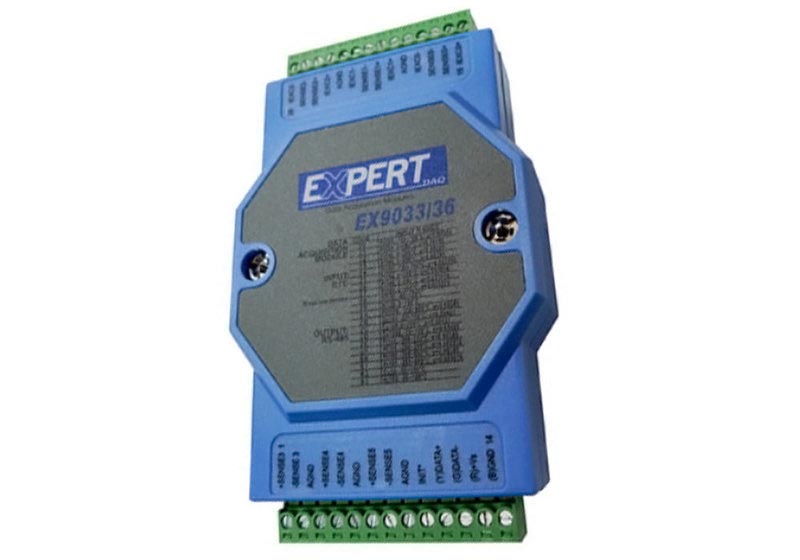

eX-9036 6-Channel RTD Modules.

The eX-9036 industrial modules are the ideal solution for decentral/distributed RTD sensor signale acquisition with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
  • 6 differential analog inputs for RTD Pt/Ni.
  • 16 bit, 12 S/s A/D conversion.

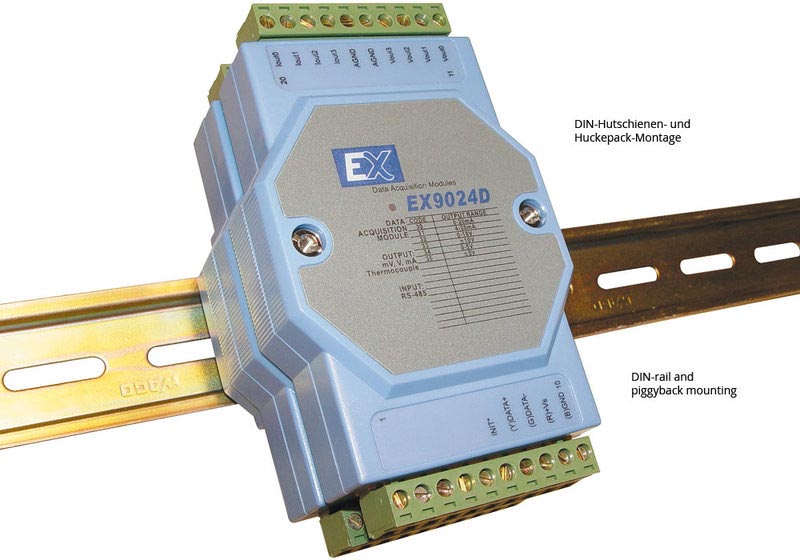

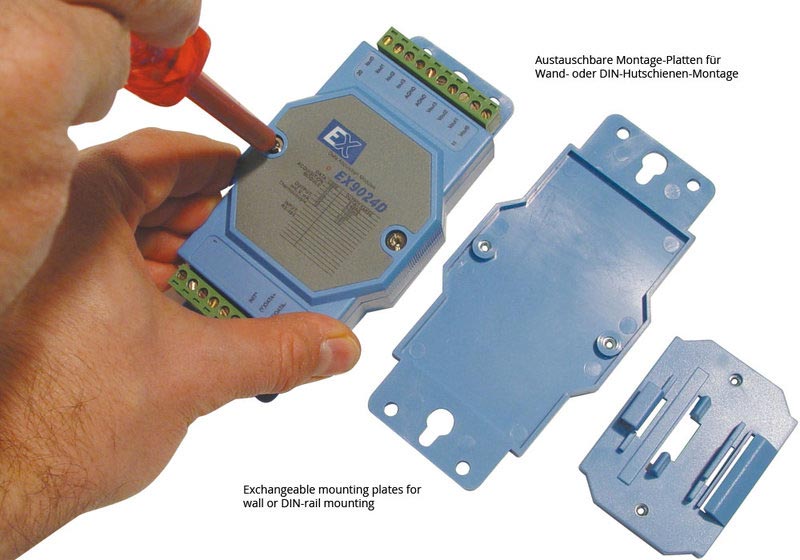

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

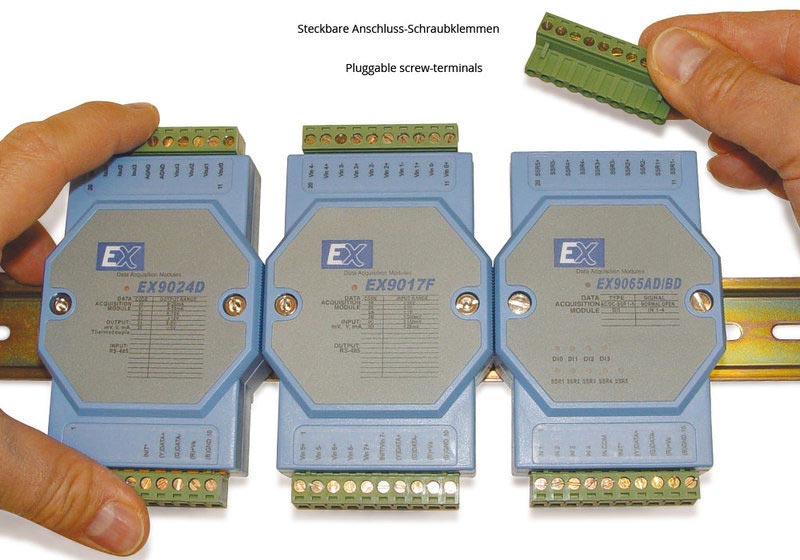

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9036
Available versionseX-903eX-9036P
Channels6 differential6 differential
Individual channel configuration-
Resolution16 bit16 bit
Total sample rate12 Hz12 Hz
Sensor inputPt, Ni, Cu (2/3/4-wire) Pt, Ni, Cu (2/3/4-wire)
Break line detection
Isolation3000 V3000 V
Power consumption1.1 W1.1 W
CommunicationRS485, 300...115200 bpsRS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
