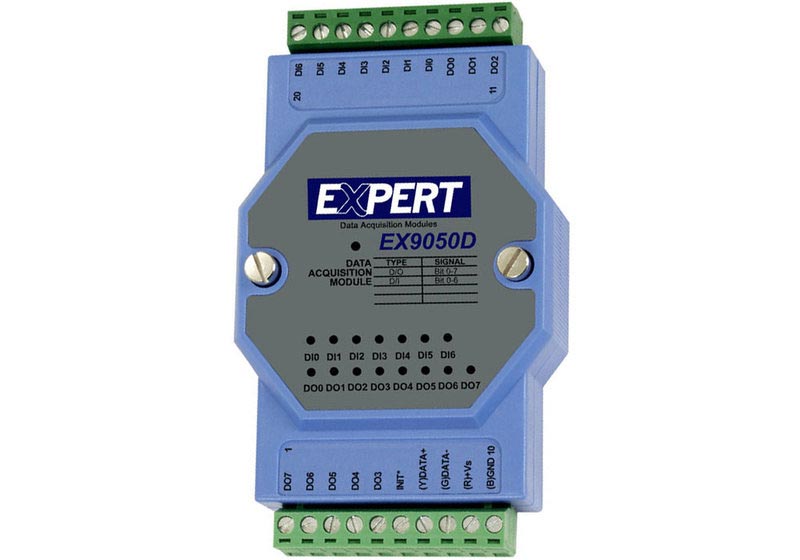

eX-9050 - 7 Digital Input, 8 Digital Outputs, for RS485

eX-9050 - RS485 7 Digital In, 8 Digital Out
additional images:
progressive price
taking 1 pcs
from
€ 74,50
taking 5 pcs
from
€ 71,52
taking 20 pcs
from
€ 68,54
taking 50 pcs
from
€ 65,56
taking 200 pcs
from
€ 62,58
Price
starting 74,50*
starting € 88,66 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • Digital inputs and outputs in a compact module.

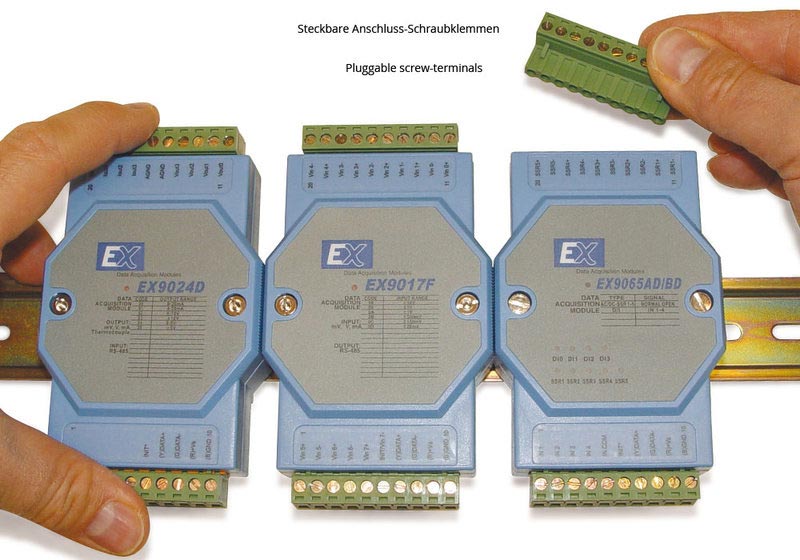

  • Pluggable screw terminal connector.
  • Models with RS485 or Ethernet/RJ45.

eX-9050 Digital-Modules: Non-Isolated Digital-I/O.

The eX-9050 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485 or Modbus/TCP, TCP/IP for decentral/remote networking applications.
  • 7 or 12 digital inputs, 8 or 6 digital outputs.

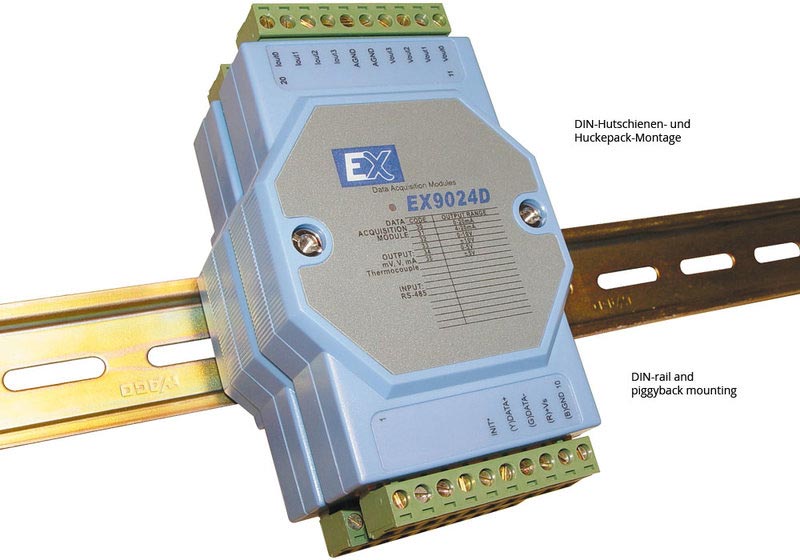

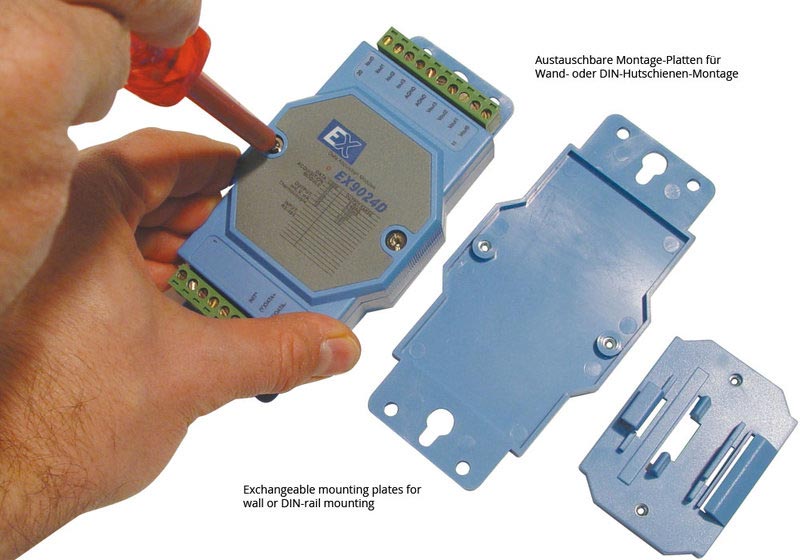

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

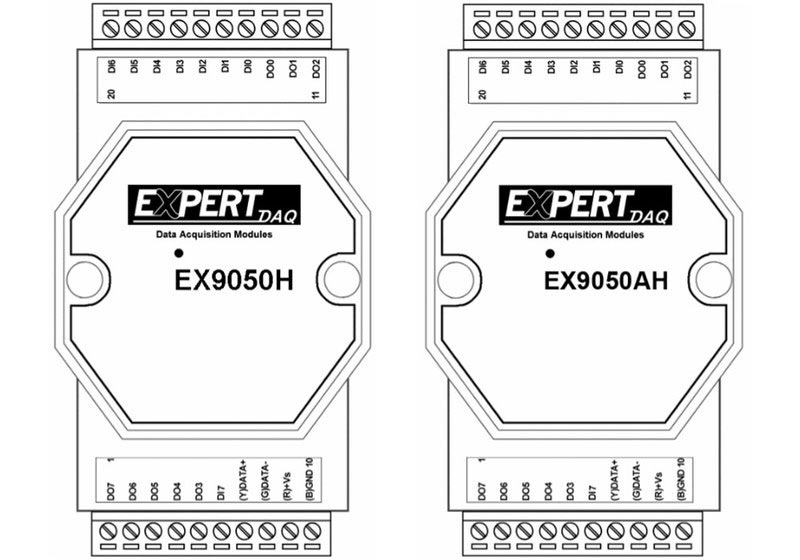

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9050
Available versionseX-9050HDeX-9050HD-MeX-9050AHDeX-9050AHD-MeX-9050-MTCP
Digital inputs8 single-ended, source, level 0/1: max. 1 V/4...30 V8 single-ended; sink, level 0/1: max. 1 V/4...30 V 12, dry contact, log. 0: Cloase to GND, log. 1: Open, open (dry)/5...30 V (wet); counter/latch
Digital outputs8 open collector NPN, max. load 30 mA/30 V8 Open collector PNP, max. load 30 mA/30 V6 open collector (NPN) up to 30 V/500 mA max. load; 1 kHz pulse output supported
LED display for channels-
Isolation-3000 VDC (interface)
Power consumption1,9 W2,0 W
CommunicationRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bpsRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bpsRJ45 Ethernet; Modbus/TCP, TCP/IP, UDP, ICMP, ARP

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.

Accessories, options
starting 44,50*
starting € 52,96 brutto
starting 72,00*
starting € 85,68 brutto
87,00*
€ 103,53 brutto
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
Tell a friend
Description
Accessories, options
Query on the Item?
Tell a friend

Benefits

  • Digital inputs and outputs in a compact module.
  • Pluggable screw terminal connector.
  • Models with RS485 or Ethernet/RJ45.

eX-9050 Digital-Modules: Non-Isolated Digital-I/O.

The eX-9050 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485 or Modbus/TCP, TCP/IP for decentral/remote networking applications.
  • 7 or 12 digital inputs, 8 or 6 digital outputs.
  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9050
Available versionseX-9050HDeX-9050HD-MeX-9050AHDeX-9050AHD-MeX-9050-MTCP
Digital inputs8 single-ended, source, level 0/1: max. 1 V/4...30 V8 single-ended; sink, level 0/1: max. 1 V/4...30 V 12, dry contact, log. 0: Cloase to GND, log. 1: Open, open (dry)/5...30 V (wet); counter/latch
Digital outputs8 open collector NPN, max. load 30 mA/30 V8 Open collector PNP, max. load 30 mA/30 V6 open collector (NPN) up to 30 V/500 mA max. load; 1 kHz pulse output supported
LED display for channels-
Isolation-3000 VDC (interface)
Power consumption1,9 W2,0 W
CommunicationRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bpsRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bpsRJ45 Ethernet; Modbus/TCP, TCP/IP, UDP, ICMP, ARP

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
