Benefits of the IT7320 Series AC Power Supplies up to 9000 VA

  • Measurement resolution up to 0.01 W/0.1 mA, meets Energy Star Standard requirements.
  • TRIAC drimming and simulation function.
  • Output the changed synchronous TTL signal.

ITECH IT7300 Programmable AC Power Supply

Models IT7322, IT7324, IT7326 (H, T, HT)

The ITECH IT7300 series can be widely applied in the electronics and electrical industry, lighting, aviation, military, R&D specification’s verification, laboratory testing and factory production online test etc. The IT7300 devices deliver AC power up to 1500 VA with an adjustable frequency in the range of 45 to 500 Hz and an adjustbale phase angle of 0 to 360°.

  • Precise linear amplification technology, low noise, high stability.
  • High power density design, 1500 VA for 3U size, save installation space.
  • Adjustable frequency 45...500 Hz.
  • Adjustable phase angle 0...360°.
  • Settable output slew rate of voltage and frequency.
  • High current crest factor for surge current testing.
  • TRIAC Dimmer dimming/governor simulation function.
  • Output the changed synchronous TTL signal.
  • LIST mode for testing power perturbation (PLD) simulation.
  • Simulate surge, trap waveform.
  • Voltage dip, short interruption and voltage change simulation.
  • Measure various electrical parameters, including RMS voltage/current, actual power, power factor, VA (apparent power), peak current and other parameters.
  • Measurement resolution 0.01 W/0.1 mA, meet Energy Star standard requirement.
  • Built-in RS232, USB and Ethernet/LAN, optional GPIB/IEEE488 (versions "G"), support SCPI protocol.
  • Support three devices connection through system bus to achieve three-phase AC power function.
  • OCP, OVP, OTP, OPP.

Model Overview

ModelVoltageCurrentPowerResolvingAccuracyInterfaceDimensions
IT7321L: 150V;
H: 300 V		L: 3 ARMS;
H: 1.5 ARMS		300 VA0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet½ 2U
IT7326HTL: 250V;
H: 500 V		L: 12 ARMS;
H: 6 ARMS		9000 VA, 3f0.1 V/0.1 mA±(0.2% + 1.2V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet27U
IT7326HL: 250V;
H: 500 V		L: 12 ARMS;
H: 6 ARMS		3000 VA0.1 V/0.1 mA±(0.2% + 1.2V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet6U
IT7326TL: 150V;
H: 300 V		L: 24 ARMS;
H: 12 ARMS		9000 VA, 3f0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet27U

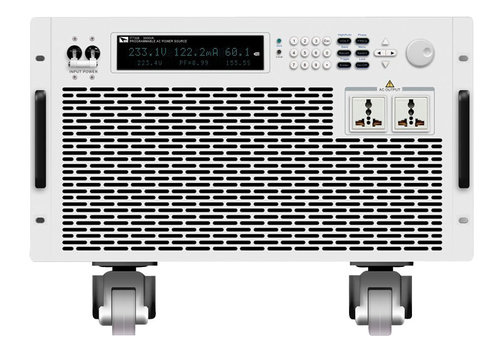

IT7326L: 150V;
H: 300 V		L: 24 ARMS;
H: 12 ARMS		3000 VA0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet6U
IT7324HTL: 250V;
H: 500 V		L: 6 ARMS;
H: 3 ARMS		4500 VA, 3f0.1 V/0.1 mA±(0.2% + 1.2V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet15U
IT7324HL: 250V;
H: 500 V		L: 6 ARMS;
H: 3 ARMS		1500 VA0.1 V/0.1 mA±(0.2% + 1.2V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet3U
IT7324TL: 150V;
H: 300 V		L: 12 ARMS;
H: 6 ARMS		4500 VA, 3f0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet15U

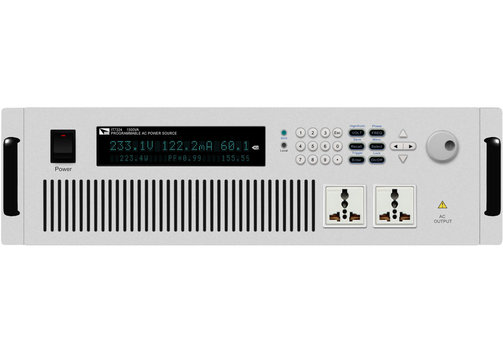

IT7324L: 150V;
H: 300 V		L: 12 ARMS;
H: 6 ARMS		1500 VA0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet3U
IT7322HTL: 250V;
H: 500 V		L: 3 ARMS;
H: 1.5 ARMS		2250 VA, 3f0.1 V/0.1 mA±(0.2% + 1.2V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet15U
IT7322HL: 250V;
H: 500 V		L: 3 ARMS;
H: 1.5 ARMS		750 VA0.1 V/0.1 mA±(0.2% + 1.2V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet3U
IT7322TL: 150V;
H: 300 V		L: 6 ARMS;
H: 3 ARMS		2250 VA, 3f0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet15U
IT7322L: 150V;
H: 300 V		L: 6 ARMS;
H: 3 ARMS		750 VA0.1 V/0.1 mA±(0.2% + 0.6V)/
±(0.2% + 0.6 mA)		RS232, USB, LAN/Ethernet3U
