PROFITEST M Pakages Test Instrument for VDE 0100/IEC 60364-6
Description
Files/Downloads
EOL/obsolete, not available anymore
Benefits
- Bundles with test instrument PROFITEST MXTRA and accessories.
- With case and connectivity accessories.
- Rugged test instrument for IEC 60364-6 (measurement of contact voltage without tripping the RCCB).
PROFITEST MXTRA Bundles - Test Instrument for VDE 0100/IEC 60364-6
The Gossen Metrawatt M501 bundles combine the versions MXTRA of the test instrument PROFITEST with reliable connectivity accessories for the safe use in the field.
Model Overview
| Model | Ordering code | Description: ▸PROFITEST M Series - basic instrument |
| ▸PROFITEST MBASE+ | ▸M520S | Basic instrument |
| ▸PROFITEST MPRO | ▸M520N | Same as basic instrument M520S, plus the following special functions: (Rechargeable) battery powered measurements (earthing resistance (3/4-wire), soil resistivity, selective earthing resistance, earth loop resistance). |
| ▸PROFITEST MTECH+ | ▸M520R | Same as basic instrument M520S, plus the following special functions: Tripping test for AC/DC sensitive RCDs and loop impedance measurement without tripping the RCD, Bluetoothinterface |
| ▸PROFITEST MXTRA | ▸M520P | Same as basic instrument M520S, plus numerous special functions: Tripping test for AC/DC sensitive RCDs and loop impedance measurement without tripping the RCD, testing of IMDs, testing of RCMs per EN 61557, part 11, (rechargeable) battery powered measurements (earthing resistance (3/4-wire), soil resistivity, selective earthing resistance, earth loop resistance), leakage current measurement, residual voltage test, intelligent ramp, Bluetooth interface |
| Model | Ordering code | Description: ▸PROFITEST Series - bundles |
| ▸PROFITEST MBASE+ Startset | ▸M501A | Package consisting of PROFITEST MBASE+, variable plug adapter set and F2000 universal carrying pouch. |
| ▸PROFITEST MTECH+ Startset | ▸M501B | Package consisting of PROFITEST MTECH+, variable plug adapter set and plastic system case SORTIMO L-BOXX GM with foam insert. |
| ▸PROFITEST MTECH+MASTERset | ▸M501C | Package consisting of PROFITEST MTECH+, variable plug adapter set, SP350 earth spike, TR50 plastic drum, PRO-RLO II adapter and instrument master case (Z502A) |
| ▸PROFITEST MTECH+ECHECKset | ▸M501D | Package consisting of PROFITEST MTECH+, VARIO-STECKER-Set and E-CHECK case. |

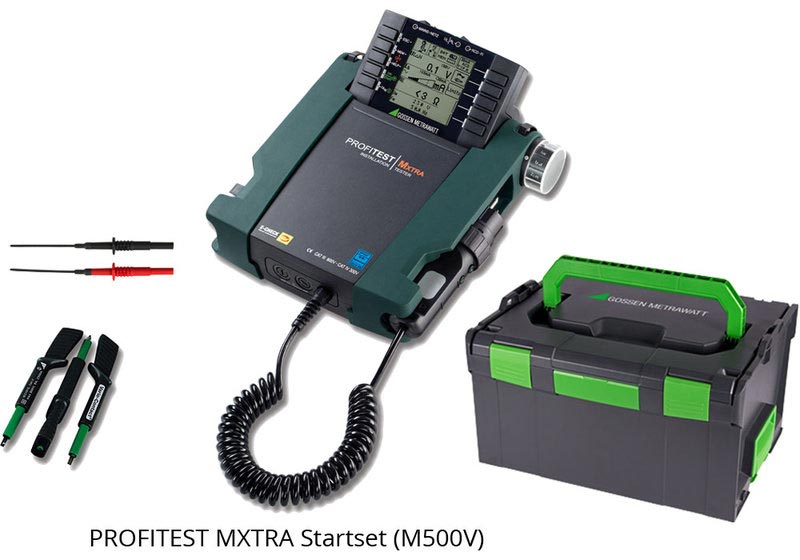

| ▸PROFITEST MXTRA STARTSET | ▸M500V | Package consisting of PROFITEST MXTRA, VARIO-STECKER-Set, plastic system case SORTIMO L-BOXX GM with foam insert, MASTER Battery Set and MPRO MXTRA Charger, set of test probes. |

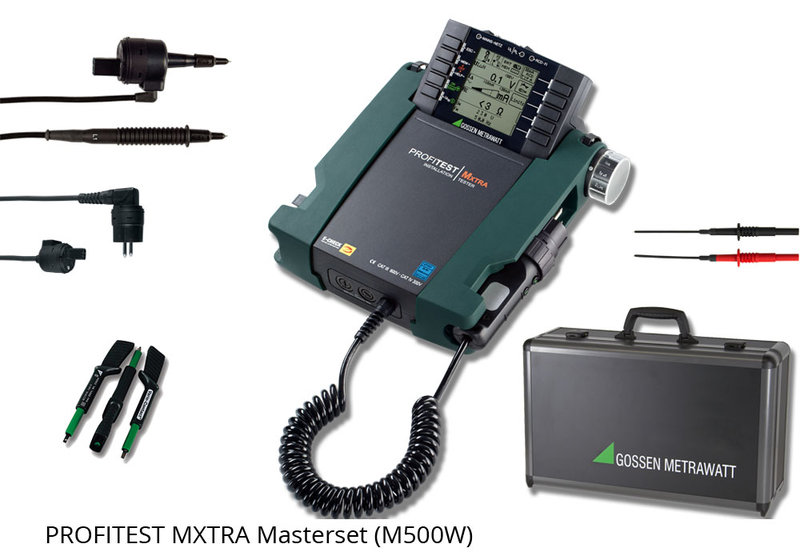

| ▸PROFITEST MXTRA MASTERSET | ▸M500W | Package consisting of PROFITEST MXTRA, VARIO-STECKER-Set, Profi Case, PRO-W plug insert, PRO-RLO-II, MASTER Battery Set and MPRO MXTRA Charger, set of test probes. |

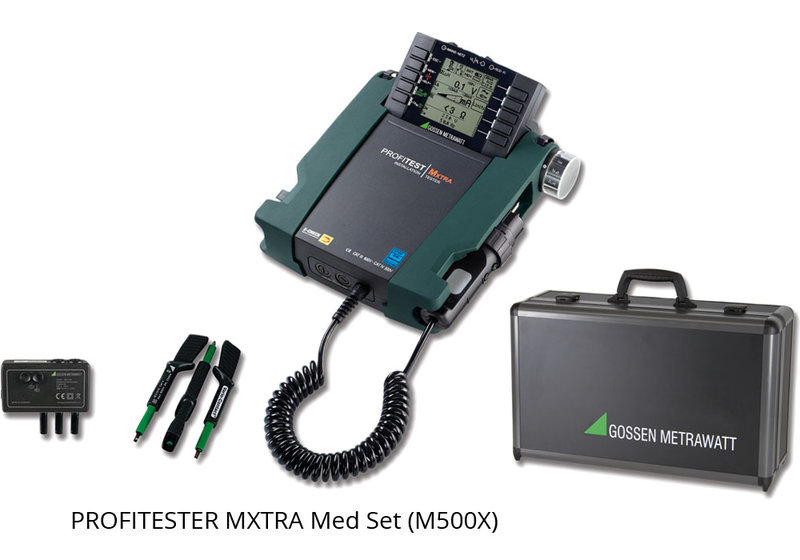

| ▸PROFITEST MXTRA MED Set | ▸M500X | Package consisting of PROFITEST MXTRA, VARIO-STECKER-Set, Profi Case, leakage current measuring adapter PROAB, MASTER Battery Set and MPRO MXTRA Charger, set of test probes. |

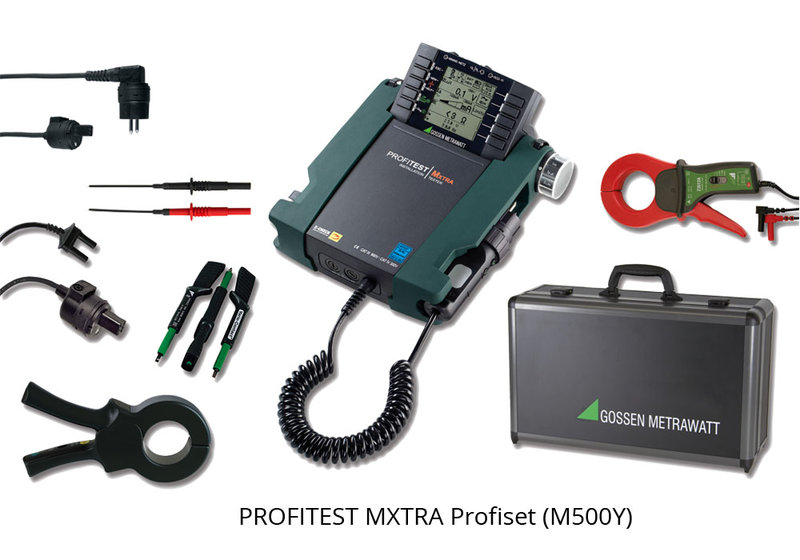

| ▸PROFITEST MXTRA PROFISET | ▸M500Y | Package consisting of PROFITEST MXTRA, VARIO-STECKER-Set, Profi Case, PRO-W plug insert, generator clamp E-Clip 2 and Current clamp sensor for earth measurement Z3512A, measuring adapter for connecting a second clamp PRO-RE-2, MASTER Battery Set and MPRO MXTRA Charger, set of test probes. |
| Model | Ordering code | Description: ▸PROFITEST INTRO and bundles |
| ▸PROFITEST INTRO | ▸M520T | Test instrument for testing the effectiveness of safety measures per IEC 60364-6 (DIN VDE 0100-600) and EN 61557 (VDE 0413). |
| ▸PROFITEST INTRO Starterset | ▸M503A | Package consisting of M520T, carry bag F2010, PRO schuko MA Z503K, PRO jumper Z503J, (rechargeable) battery pack master Z502H, charger Z502R. |
| ▸PROFITEST INTRO Masterset | ▸M503B | Package consisting of M520T, probe set Z503F, vario plug set Z500A, SORTIMO L-BOXX with inlay Z503, PRO schuko MA Z503K, PRO jumper Z503J, (rechargeable) battery pack master Z502H, charger Z502R, probe with remote triggering Z550A. |
