Benefits of the PeakTech Tablet Oscilloscopes P1206, P1207, P1211, P1212

  • Easy-to-use, portable and with touchscreen, for mobile use.
  • 2 or 4 channels and bandwidth up to 120 MHz.
  • Autoset and automatic measurement functions.

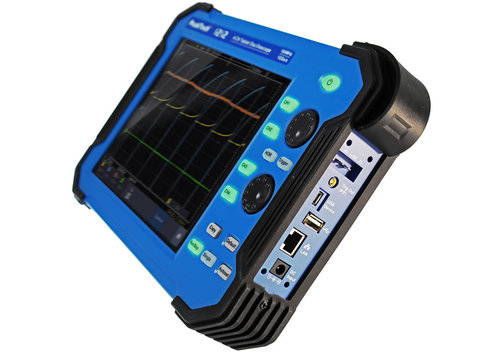

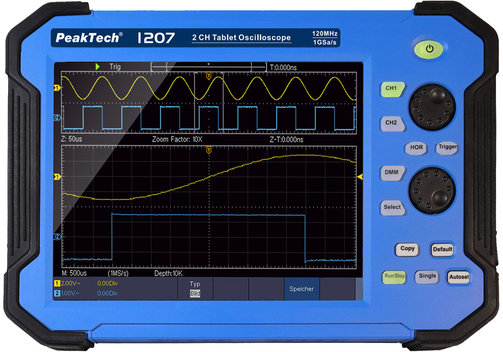

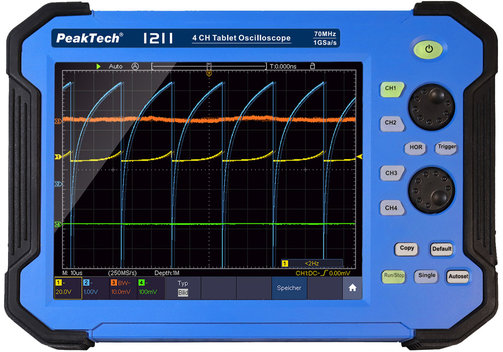

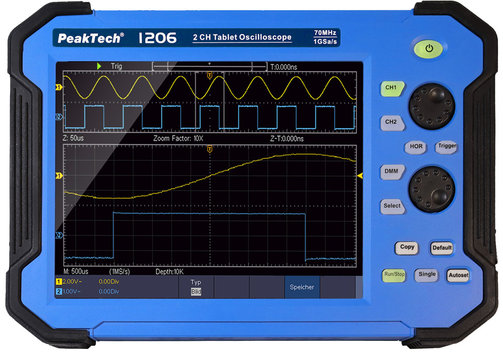

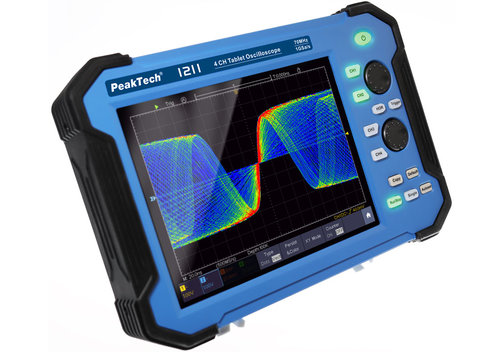

PeakTech P1200 Series 2- and 4-Channel Tablet Oscilloscopes

Models PeakTech P1206, P1207, P1211, P1212 up to 120 MHz

The PeakTech P1200 series are portable 2- and 4-channel tablet oscilloscopes with a bandwidth up to 70, 100, or 120 MHz. The devices have a touchscreen, USB and Ethernet/LAN interface. They are easy to use especially in mobile applications due to their autoset function and automatic measurement modes.

  • Portable battery powered tablet oscilloscopes.
  • 2 or 4 channels.
  • Bandwidth 70 MHz, 100 MHz, or 120 MHz.
  • Max. sample rate 1 GS/s.
  • Easy-to-use with autoset function.
  • Recording length of max. 40,000,000 points.
  • Automatic measurement modes, XY mode and FFT function.
  • Touchscreen.
  • Interfaces: USB and Ethernet/LAN.

Model Overview

ModelP1206P1207P1211P1212
Channels2244
Bandwidth70 MHz120 MHz70 MHz100 MHz
Sample rate1 GS/s (1 channel), 500 MS/s (2 channels)1 GS/s (1 channel), 500 MS/s (2 channels), 250 MS/s (4 channels)
Memory depth40,000,000 points
Vertical resolution8 bit
TriggersEdge, video, pulse, rise, runt, window, timeout, nth edge, logic, SPI, I2C, RS232
Additional featuresFFT, XY mode, integrated multimeter: 4½ digits/max. 19999 count, continuity, diode, capacity 2 nF...20 mF, voltage AC/DC 20 mV...200 V, current AC/DC 10 A, resistance 200 Ω...100 MΩFFT, XY mode
InterfacesUSB, Ethernet/LAN
Display8"/20.2 cm 800x600 pixel TFT touchscreen
Power supplyLi-Po 8000 mAh (operating time approx. 5 h), power adaptor
Dimensions (mm)270 x 191 x 49; 1.7 kg
SafetyEN61010-1; CAT II 400 V

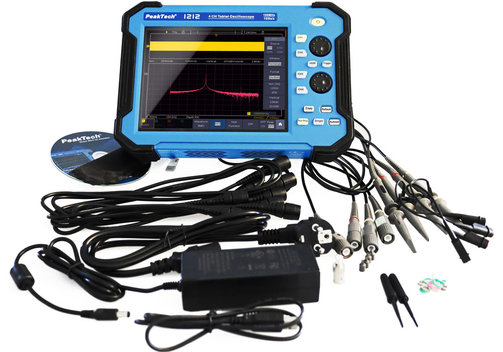

Included: Tablet oscilloscope P 1206, 1207, 1211, or 1212, power chord and charging adaptor, 2 or 4 probes, power adaptor, stand, user manual, CD with Windows software; models with multimeter: Test leads.
