Benefits of the PicoLog CM3 - Measuring the Power Consumption of Buildings and Machinery

  • USB/Ethernet current data logger.
  • For 1- or 3–phase alternating currents.
  • High resolution 24 bit conversion.

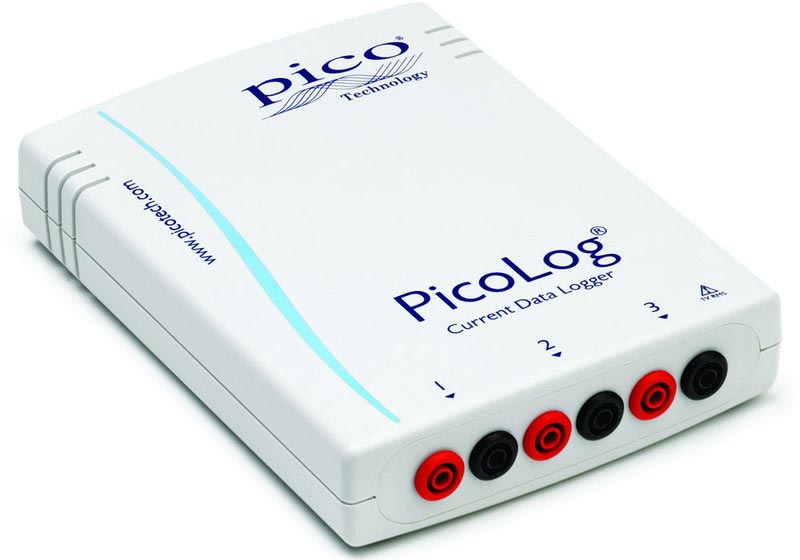

PicoLog CM3 Current Datalogger

The PicoLog CM3 current data logger for USB and ethernet is a compact, easy–to–use data logger for measuring the power consumption of buildings and machinery The CM3 has 3 channels to measure three single–phase currents or all three currents from a three–phase system.

  • 3 channel current datalogger.
  • Suitable for single or three–phase alternating currents.
  • Measurement range 0...200 A with accuracy ±-1% and less than 10 mA noise. Voltage range 0...1 VAC RMS (20 Hz...1 kHz).
  • High pecision 24 bit resolution.
  • Low conversion time of 720 ms per channel up to seconds, minutes, hours or days.
  • Current sources according to IEC 1010-1 (1995) and EN 61010-1 (2001) for CAT II 600 V and CAT III 300 V.
  • Size only 184 x 135 x 36 (mm).
  • Interface PC: USB 2.0 (compatible with USB 1.1) or ethernet. USB-powered or power-over-ethernet/POE.

Model Overview

Model Description
PicoLog CM3 PP815 Pico current datalogger
PicoLog CM3 Kit PP803 Pico current datalogger kit incl. 3x current probe 200 A (TA138)

Included (PP 815): Logger module, USB cable, ethernet cabel, user manual, CD with software.
Kit (PP 803) incl. 3x current probes 200 A (TA138).
Software: PicoLog software. Software development kit/SDK with drivers and programming examples for various environments incl. C, Excel and LabVIEW.

Raspberry-Pi supported.

New: ▸PicoLog Cloud.
