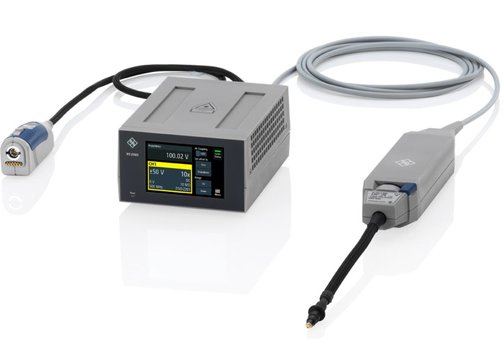

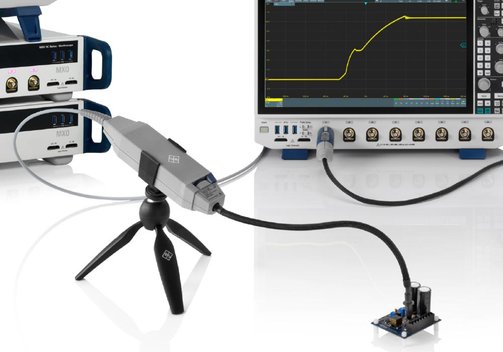

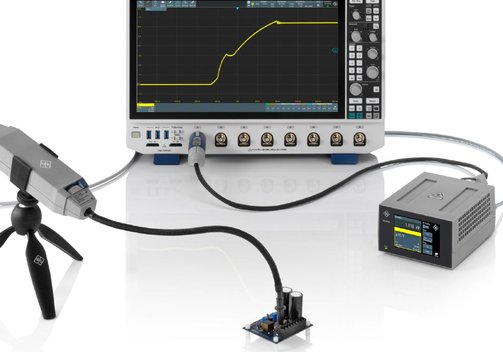

R&S RT-ZISO Opto-Isolated Probe System

High Voltage. Optical Isolation. Seamless Operation.

100 MHz to 1 GHz bandwidth (upgradeable).
>90 dB (>30,000:1) common mode rejection ratio at 1 GHz.
±3000 V differential voltage input range and offset compensation range.
±60 kV common mode voltage input range.
±10 mV most sensitive input range.
Two connection options: Probe interface from Rohde & Schwarz or SMA.

Components:

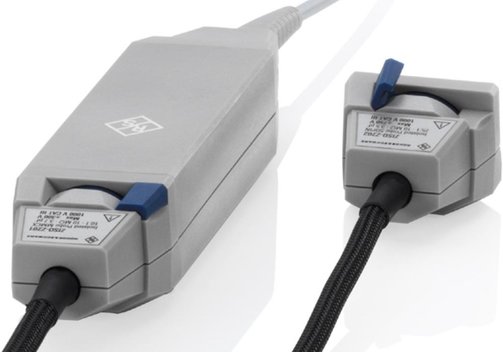

Probe head:
- Electro-optical converter for the probe signal.
- SMA connection to the probe tips.

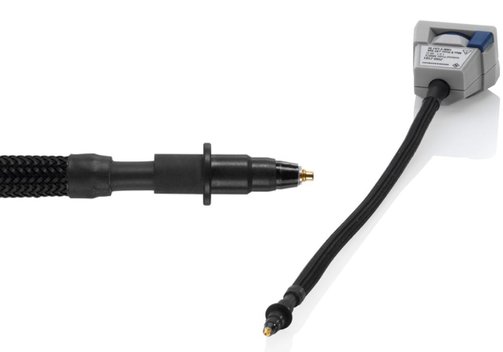

Probe tips:
- Safety connection for simple and safe connection of different probe tips.
- Automatic probe tip recognition.
- Probe tips for different measurement requirements: For MMCX connectors, square probes, wide square probes and passive probes.
- Ductile probe tip cables allow easy access with low mechanical stress on the probe tip.

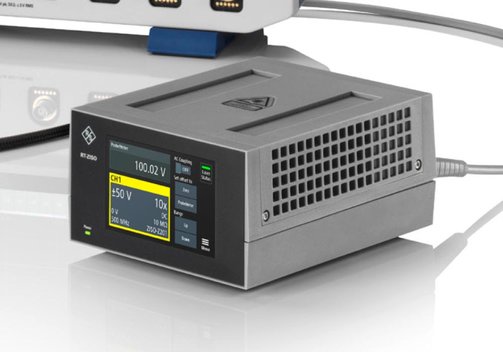

Probe receiver:
- Touch screen control for probe settings.
- R&S ProbeMeter: High-precision measurement of the RMS value.
- Signal conditioning and signal compensation.
- Probe receiver interface (rear): Supports Rohde & Schwarz probe interface and SMA-to-BNC connection to any oscilloscope.

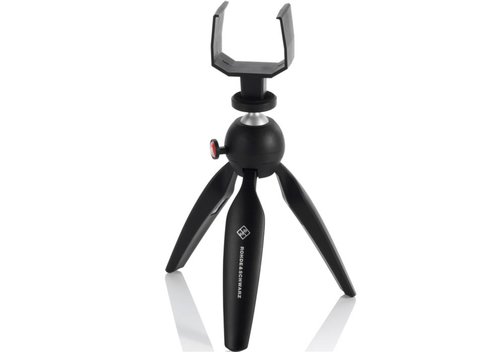

Probe stand:
- Flexible and stable probe positioning.
- Tripod stand with ¼"-20 UNC thread.

Model Overview

Bandwidth options
Model	R&S ZISO-B901	R&S ZISO-B902	R&S ZISO-B903	R&S ZISO-B905	R&S ZISO-B910
Bandwidth	100 MHz	200 MHz	350 MHz	500 MHz	1 GHz
Rise time (10...90%)	<4 ns	<2 ns	<1,14 ns	<800 ps	<450 ps

Features of the probe tips
Model	R&S ZISO-Z101	R&S ZISO-Z201	R&S ZISO-Z202	R&S ZISO-Z203	R&S ZISO-Z301	R&S ZISO-Z302
Input interface	MMCX	MMCX	Square pin (2.54 mm)	Wide square pin (5.08 mm)	Browser (passive probe tip module)	Browser (passive probe tip module)
Cable length	37 cm	21 cm	32 cm	38 cm	120 cm	120 cm
Attenuation	1.5:1	10:1	25:1	100:1	10:1	100:1
DC input resistance	50 Ω	10 MΩ	10 MΩ	40 MΩ	10 MΩ	100 MΩ
Input capacity	<-12 dB¹⁾	3.7 pF	3.5 pF	3.2 pF	12 pF	4.6 pF
Max. input voltage measurement	8 V_RMS, ±45 V_Peak	±300 V_RMS, ±500 V_Peak	±750 V_RMS, ±1000 V_Peak	2500 V_RMS, ±3500 V_Peak	±300 V_RMS	±3540 V_RMS
Adjustbale offset voltage	±45 V	±300 V	±750 V	±3000 V	±300 V	±3000 V
Voltage to earth	1000 V CAT III	1000 V CAT III	1000 V CAT III	1000 V CAT III	300 V CAT III	1000 V CAT III
Operating temperature range	0...+40°C

1) R&S ZISO-Z101 has a 50 Ω terminating impedance, whereby the dB value indicates the reflection factor.

Model Overview - Probe Configuration from Base Model and Options

Model			Description
Base model	R&S RT-ZISO	1804.5000K02	Isolated probe system, ±30 V, 1 kV_RMS CAT III (depending on probe tip model), probe interface von Rohde & Schwarz and BNC; inkl. bag; user manual
	R&S ZISO-B403	1804.5017.02	Optical fiber, length: 3 m
	R&S ZISO-B410	1804.5023.02	Opticel fiber, length: 10 m
Select your system bandwidth	R&S ZISO-B901	1804.5030.02	100-MHz option
	R&S ZISO-B902	1804.5046.02	200-MHz option
	R&S ZISO-B903	1804.5052.02	350-MHz option
	R&S ZISO-B905	1804.5069.02	500-MHz option
	R&S ZISO-B910	1804.5075.02	1-GHz option
Select your probe tip(s)	R&S ZISO-Z101	1803.4100.02	MMCX 1,5:1, 50 Ω, probe tip module for R&S RT-ZISO, 8 V_RMS, ±45 V_Peak, 1 kV_RMS CAT III
	R&S ZISO-Z201	1803.4200.02	MMCX 10:1, 10 Ω, probe tip module for R&S RT-ZISO, ±300 V_Peak, 1 kV_RMS CAT III

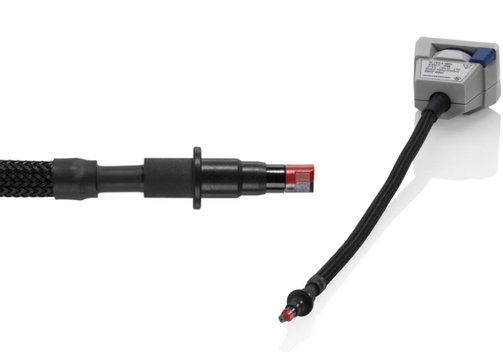

	R&S ZISO-Z202	1803.4300.02	SQPIN 25:1, 10 MΩ, probe tip module for R&S RT-ZISO, ±750 V_Peak, 1 kV_RMS CAT III
	R&S ZISO-Z203	1803.4400.02	WSQPIN 100:1, 40 MΩ, probe tip module for R&S RT-ZISO, ±3 kV_Peak, 1 kV_RMS CAT III

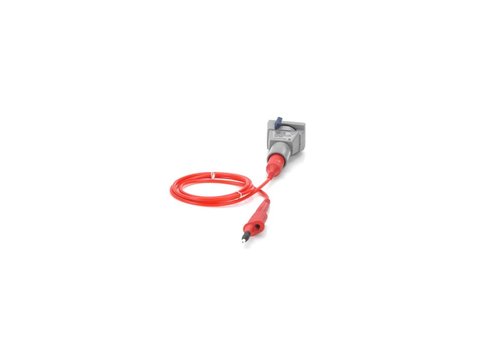

	R&S ZISO-Z301	1803.4500.02	Browser 10:1, 10 MΩ, probe tip module for R&S RT-ZISO, ±300 V_Peak, 300 V_RMS CAT III
	R&S ZISO-Z302	1803.4600.02	Browser 100:1, 100 MΩ, probe tip module for R&S RT-ZISO, ±3 kV_Peak, 1 kV_RMS CAT III
Bandwidth upgrade	R&S ZISO-B202	1804.5146.02	Extension to 200 MHz
	R&S ZISO-B203	1804.5152.02	Extension to 350 MHz
	R&S ZISO-B205	1804.5169.02	Extension to 500 MHz
	R&S ZISO-B210	1804.5175.02	Extension to 1 GHz

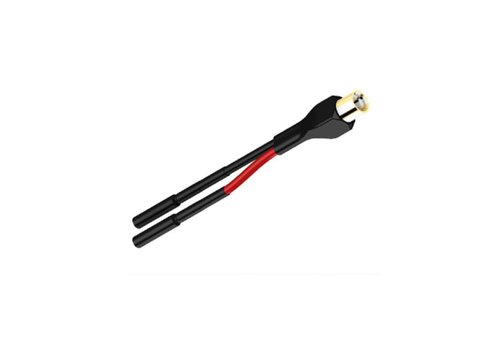

Select your accessories	R&S RT-ZAMXSQ	1803.1647.02	MMCX to square adaptor, -40...+125°C

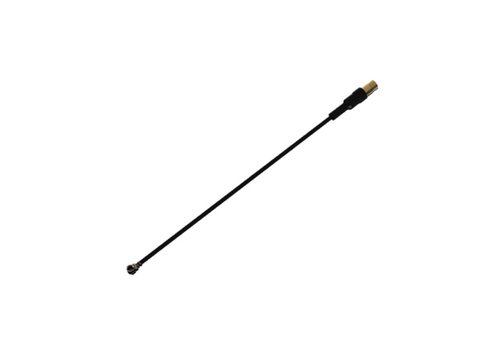

	R&S RT-ZAMXUFL	1803.1676.02	MMCX to UFL adaptor, -40...+125°C

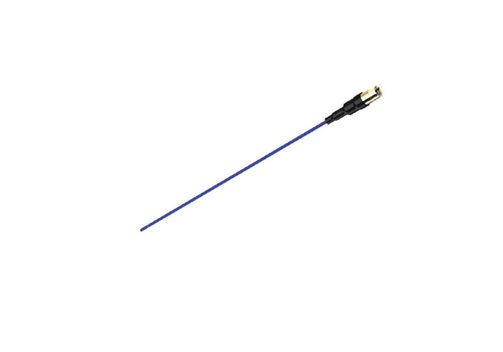

	R&S RT-ZAMXHTS	1803.1660.02	MMCX to soldering cable, -40...+155°C

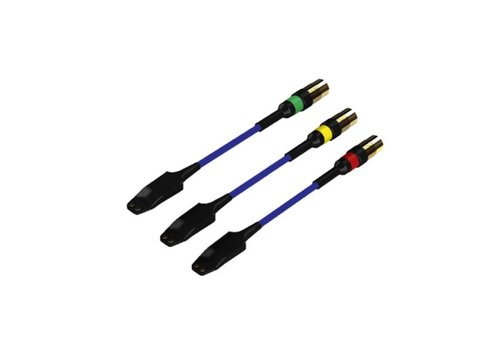

	R&S RT-ZAMXPAD	1803.1653.02	MMCX to solder-in adaptor, -40...+155°C

Model Overview - Pre-configured Bundle Models with Isolated Probes

Model		Includes...
R&S RT-ZISO01	1804.5000P11	Isolated 100-MHz probe bundle	3-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO01L	1804.5000P21	Isolated 100-MHz probe bundle	10-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO02	1804.5000P12	Isolated 200-MHz probe bundle	3-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO02L	1804.5000P22	Isolated 200-MHz probe bundle	10-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO03	1804.5000P13	Isolated 350-MHz probe bundle	3-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO03L	1804.5000P23	Isolated 350-MHz probe bundle	10-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO05	1804.5000P14	Isolated 500-MHz probe bundle	3-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO05L	1804.5000P24	Isolated 500-MHz probe bundle	10-m cable	Including R&S ZISO-Z301 probe tip
R&S RT-ZISO10	1804.5000P15	Isolated 1-GHz probe bundle	3-m cable	Including R&S ZISO-Z201 and R&S ZISO-Z301 probe tips
R&S RT-ZISO10L	1804.5000P25	Isolated 1-GHz probe bundle	10-m cable	Including R&S ZISO-Z201 and R&S ZISO-Z301 probe tips
