IkaLogic PS209 9-channel USB PC logic analyzers and protocol decoders
additional images:
Price
starting 349,00*
starting € 415,31 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 9 logic channels with 200 MS/s max. sampling rate.
  • Industrial version with receivers for CAN, LIN, RS232, and RS485.

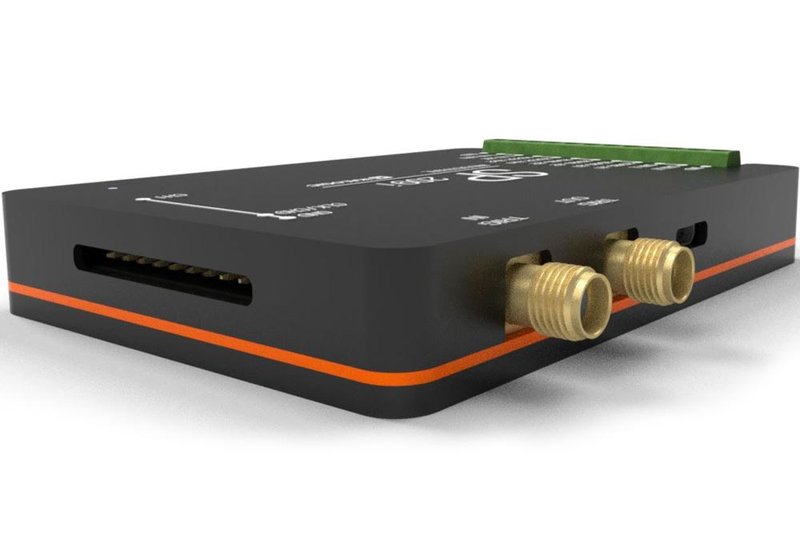

  • 2 SMA ports for precise triggering (in/out).

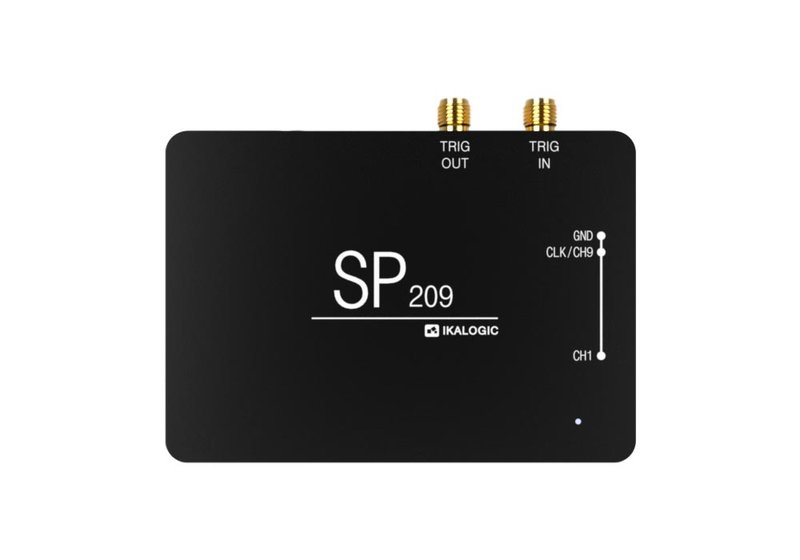

IkaLogic 9-Channel Logic Analyzers SP209

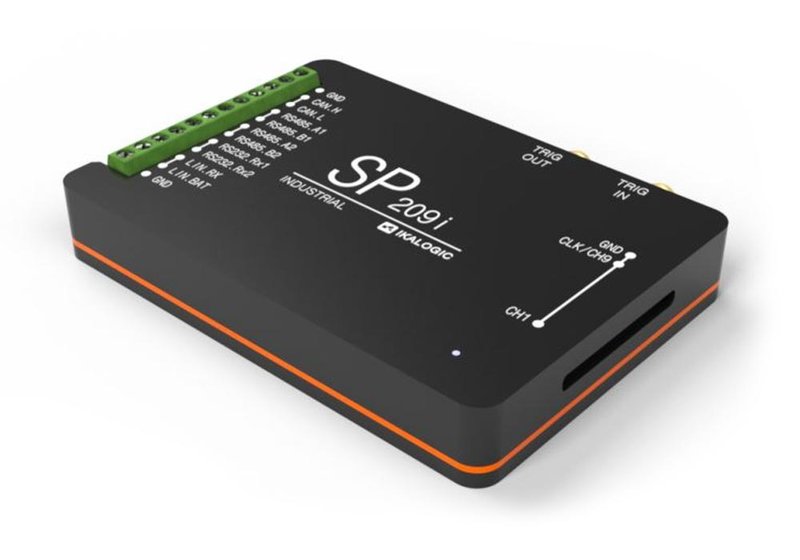

The IkaLogic SP209 series USB PC logic analyzers and protocol decoders are designed for the in depth analysis of logic signals and protocols with 200 MHz (5 ns) timing resolution. The devices offer 9-channel operation that allows 8 bit parallel data to be captured along with a clock or strobe signal. The SP209 logic analyzers are available in two versions, SP209 (standard) and SP209i (industrial version). Both offer 9 logic inputs, the model SP209i integrates additional industrial receivers for CAN, LIN, RS232, and RS485 interfaces and buses on screw terminal connectors.

  • USB PC logic analyzers and protocol decoders.
  • 9 logic channels with operating range 0...5 V and adjustable logic levels 1.8 V, 2.5 V, 3.3 V, 5 V.
  • Schmitt trigger input stages with adjustable thresholds.
  • 200 MHz sampling rate, with all 9 channels used.
  • External clock option (state mode), up to 50 MHz.
  • Precise trigger-in and trigger-out signals on SMA ports.
  • Industrial version with additional receivers for CAN, LIN, RS232, and RS485.
  • USB 2.0 HighSpeed, powered via USB.
  • Software ScanaStudio for Windows, Mac OS, and Ubuntu incl./download.

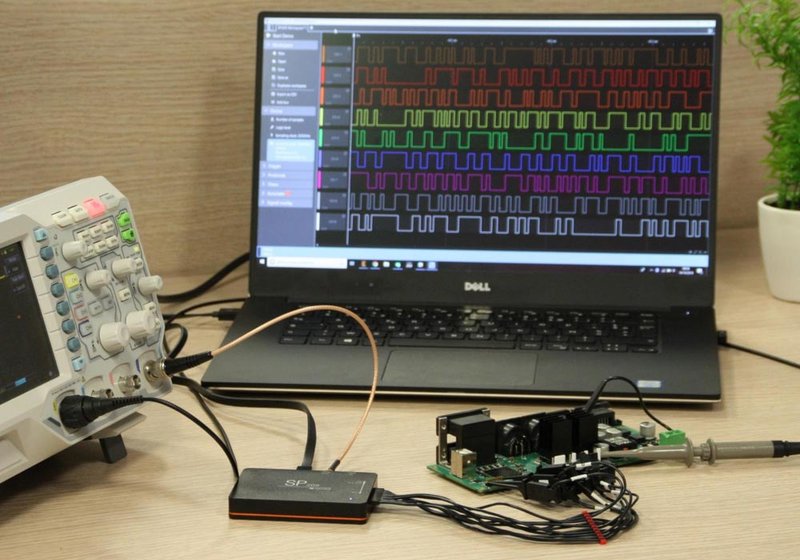

Applications

  • Embedded systems debugging.
  • Research and education.

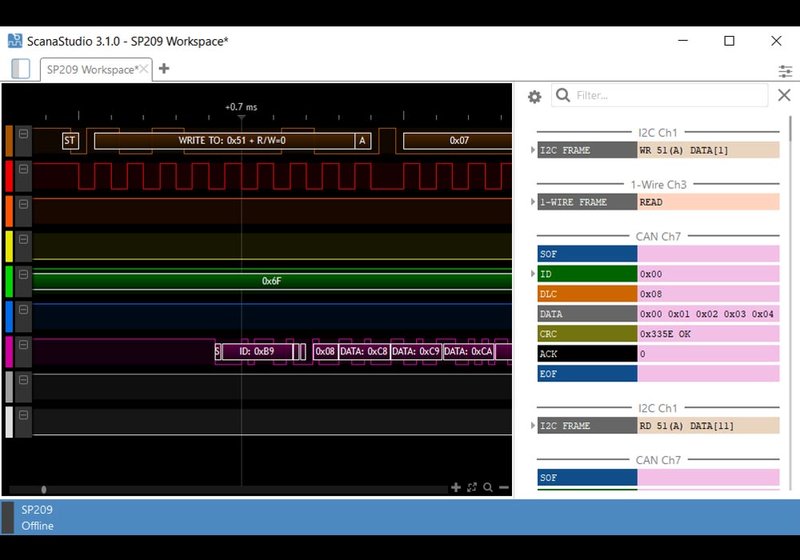

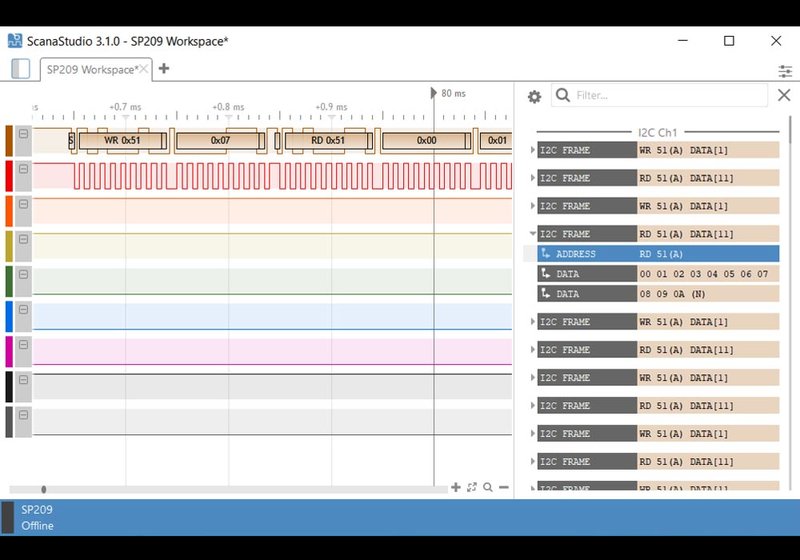

  • Serial protocols analysis, like I2C, SPI, UART or 1-Wire (non exhaustive list).
  • Industrial interface and bus analysis: RS232, RS485, CAN, LIN.
  • ADC diagnostic.

Model Overview

Model IkaLogic SP209 IkaLogic SP209i
Description Logic analyzer , standard version Logic analyzer, industrial version
Logic channel 9 9
Channel charcteristics Impedance 200 kΩ || 8 pF; 3 threshold circuits; hysteresis 0.62 V (min., at 3.3 V logic level); operating range 0...5 V; adjustable logic levels 1.8 V, 2.5 V, 3.3 V, 5 V (for each threshold); absolute max. ±25 V

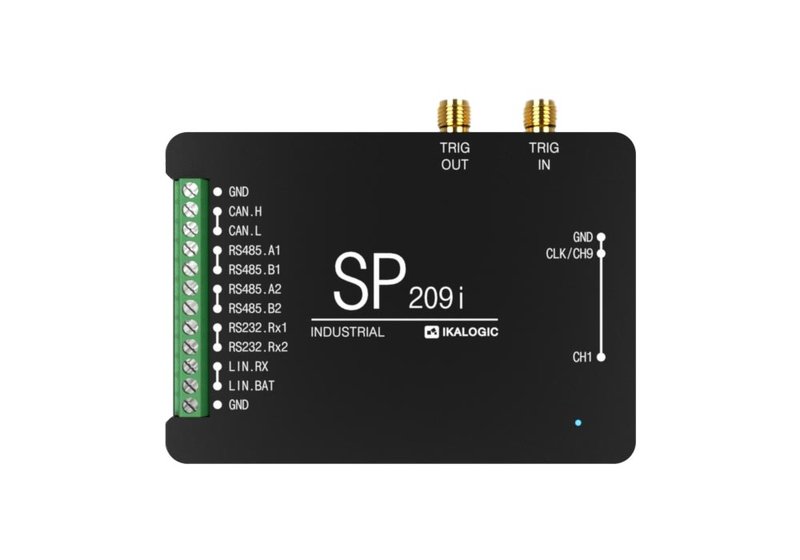

Industrial features - Logic channels can be multiplexed with dedicated industrial inputs that can be directly connected to: 2x RS232 channels (up to 1.5 MBd), 2x RS485 channels (can be combined to form one full duplex RS422 receiver), 1x CAN channel (compatible with CAN and CAN FD), and 1x LIN channel (incl. a battery input pin for voltage reference)
Timing and measurement Sample rate max. 200 MS/s (with all 9 channels used), external clock rate max. 50 MHz (state mode); logic inputs digital bandwidth 50 MHz, embedded memory 2 GB (DDR-3 sampling memory is used to buffer samples before streaming to host computer)
- Digital bandwidth RS232 1.5 Mbps, RS485 50 Mbps, CAN 8 Mbps, LIN 20 kbps
Connectors Connector for logic probe cable (included), 2x SMA (trigger output, external trigger input)
- Industrial port: 12 screw terminals for GND, CAN, RS485, RS232, LIN
Power Via Micro USB female, 5 V ±0.25 V/500 mA
Interface USB 2.0 HighSpeed
Indicators 3 state power status LED
Dimensions (mm) Aluminum housing, 60 x 85 x 13, approx. 90 g (standard)/105 g (version "i")

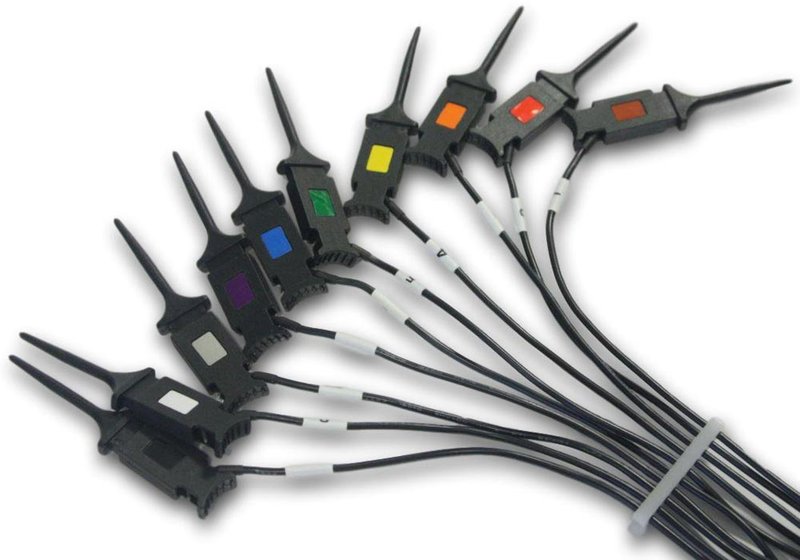

Included: SP 209 or SP 209i, 10 premium-quality leads micro-grabber probes set, 1 m Micro-USB cable, cable comb. Quick start guide/user manual and software via free download.
Software: (Download) ScanaStudio software for Windows 7/8/10, Mac OS 10.9 or later, and Ubuntu 14.04 or later.
