EOL/obsolete. Recommended replacement: ▸Airbox

WLg-IDA: Serial Device Server and WiFi Access Point/Bridge/Repeater

The ACKSYS WLg-IDA series are DIN-rail mountable modules designed for industrial and transportation applications, for example for material handling, real-time information transmission, and inventory management.

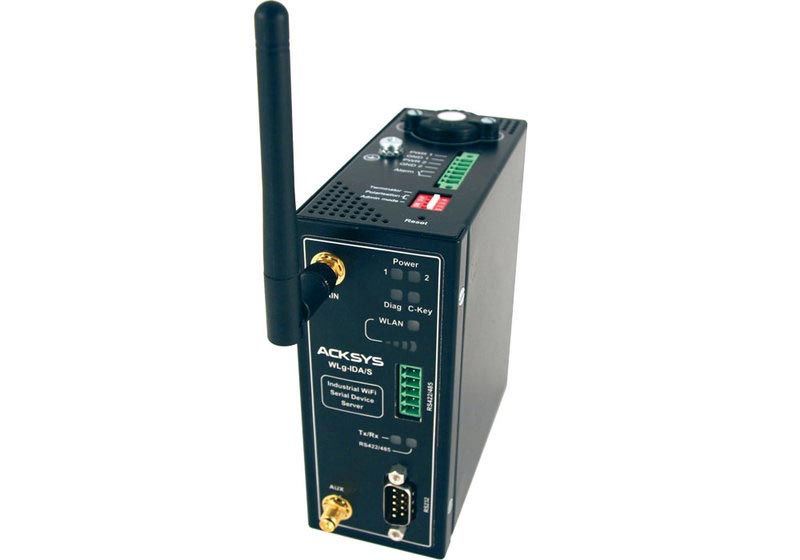

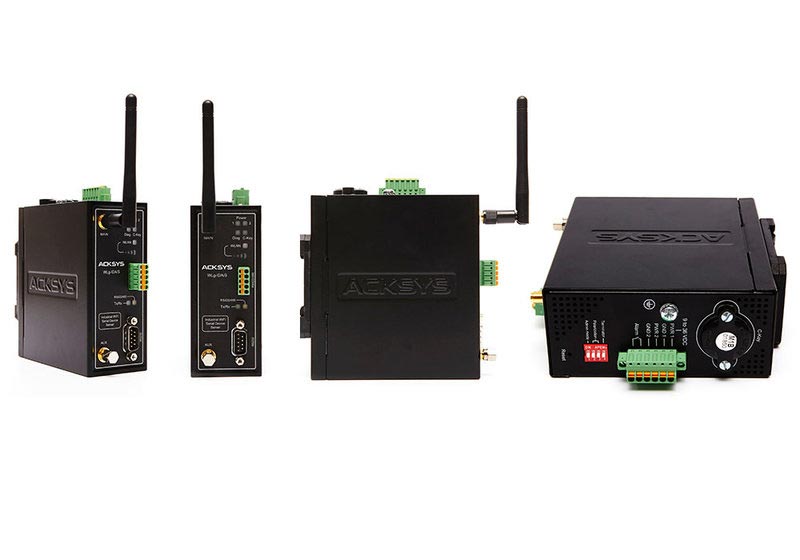

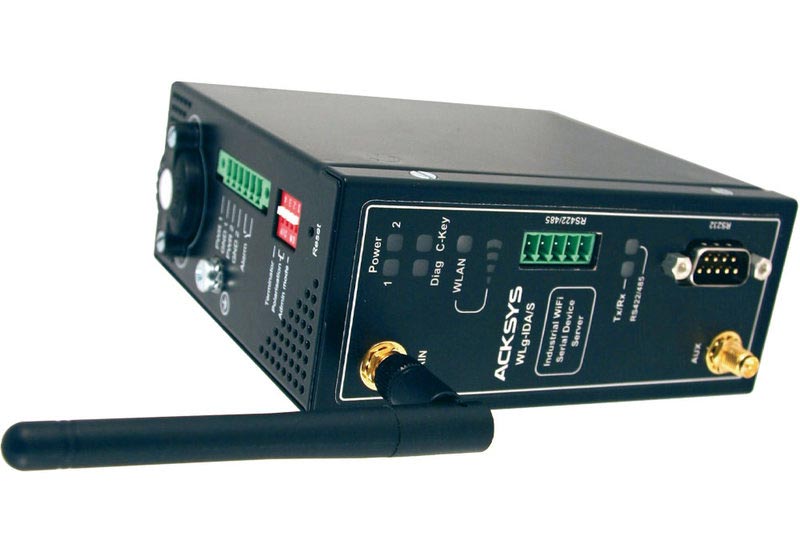

WLg-IDA/S - Wireless RS232/RS422/RS485 Serial Device Server

The ACKSYS WLg-IDA/S gives access to any serial equipments from Windows, UNIX and Linux computers connected to your WiFi Ethernet TCP/IP network. The module makes it possible to communicate between two distant serial equipments through the network, or directly with a peer to peer connection (Ad-Hoc mode). The configuration of the device is achieved using the web browser installed on your computer; it also offers SNMP administration/configuration.

  • Serial RS232/RS422/RS485 full duplex up to 250 Kbps.
  • 9...36 VDC wide range power supply.
  • IEEE 802.11 a/b/g/h WiFi radio (2.4/5 GHz).
  • Operating temperature range -25...+70°C.
  • Shock and vibration proof metal enclosure according to MIL-STD-810F, IP30, IN rail or panel mounting.
  • Point-to-point (virtual cable) and multipoint modes, virtual COM port redirector (ViP).
  • TCP client/server, UDP and MODBUS/TCP support.
  • Save/restore configuration (C-KEY, option).

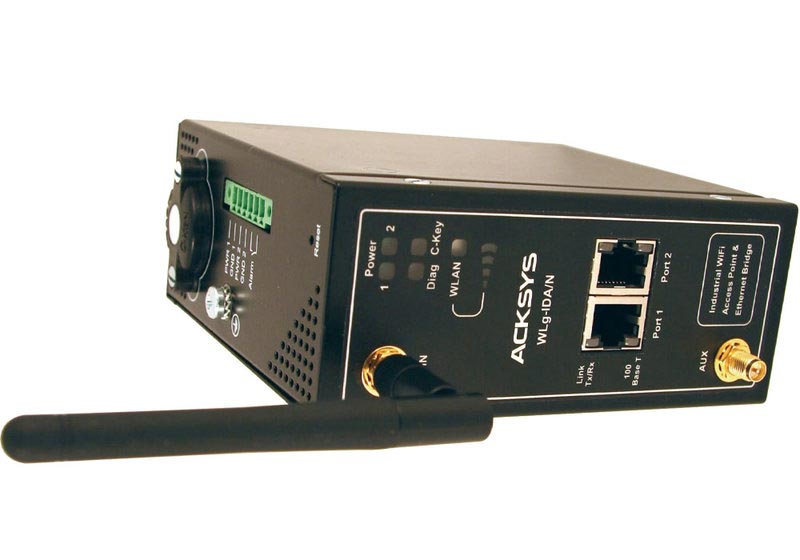

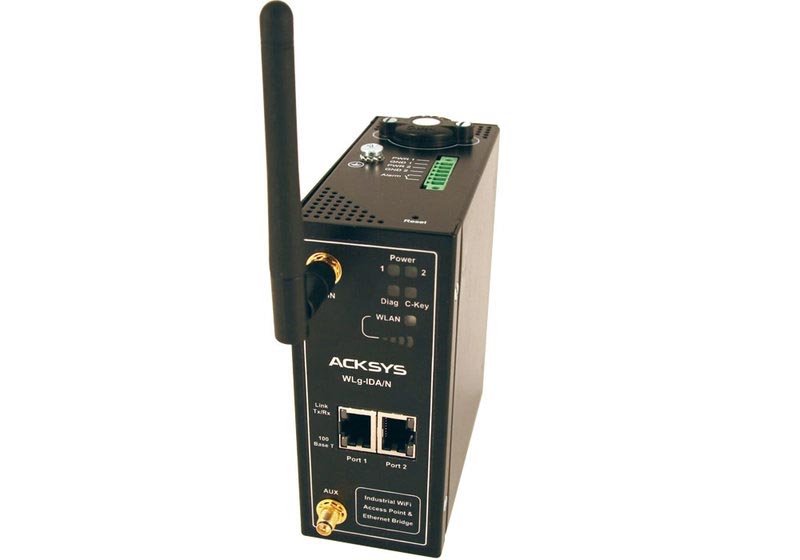

WLg-IDA/N - WiFi Access Point, 2-Port Ethernet Bridge and WDS Repeater

The ACKSYS WLg-IDA/N features a WLAN interface coupled to a 2-port Ethernet 10/100 designed for harsh industrial environments and automotive applications. The configuration of the device is achieved using the web browser installed on your computer; it also offers SNMP administration/configuration.

  • WiFi IEEE 802.11 a/b/g/h and super AG, up to 108 Mbps.
  • Security: WEP, WPA-PSK, WPA2-PSK and IEEE 802.1x RADIUS.
  • Web based configuration, SNMP administration.
  • Auto-sensing 10/100 Base TX network interface.
  • PoE IEEE 802.3af or +9...+36 VDC dual redundant power supply input.
  • Operating temperature range -20...+70°C.
  • Shock and vibration proof metal enclosure according to MIL-STD-810F, IP30, DIN rail or panel mounting.
  • Save/restore configuration (C-KEY, option).

Model Overview

Model Description
WLg-IDA/S RS232, RS422, RS485 serial to wireless Ethernet gateway/device server and virtual cable.
- EOL -
WLg-IDA/N WiFi access point, 2-port Ethernet bridge and WDS repeater (a/b/g/h).
Shipped with 1 dual band 2 dBi omnidirectional (2.4/5 GHz) antenna and 1 m of Ethernet RJ45 cable.
- EOL -
