Gossen Metrawatt CP30 Current Sensor Clamp
Description
Files/Downloads
Gossen Metrawatt CP30 Current Transformer Clamps
Model Overview
| Article no./model | Description | |

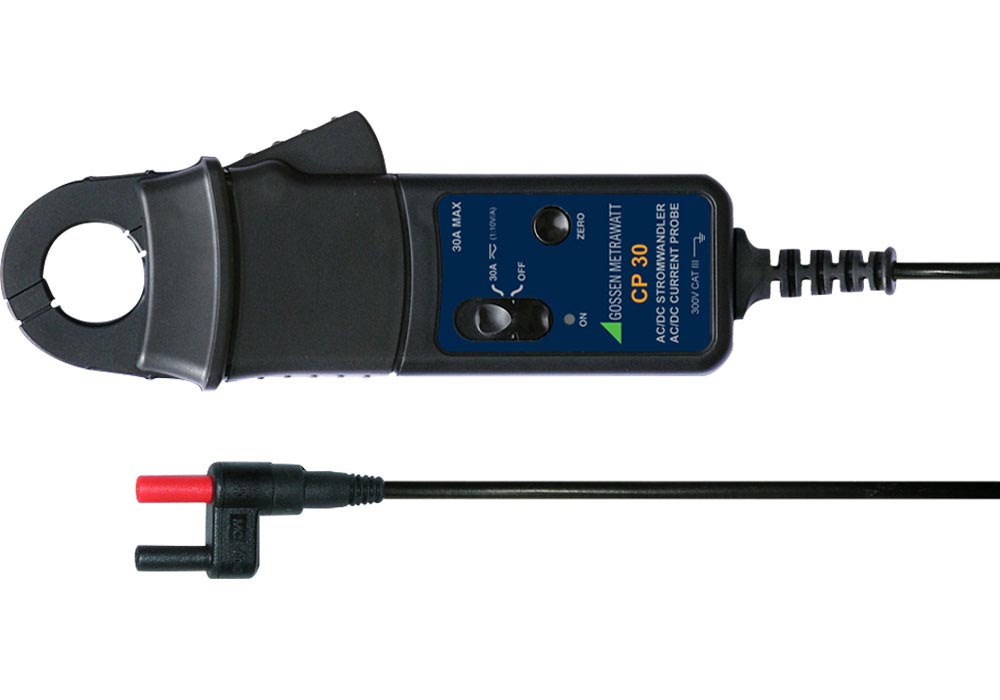

| Z201B | CP30 | Current sensor clamp with voltage output for multimeters, measuring range 0...30 ADC or ACPeak, resolution 1 mA, overload capacity 500 A (60 s), temperature coefficient /°C ±0.01% of rdg., transformation ratio 100 mV/A, overall DC accuracy ±1% of rdg., ±2 mA, frequency range DC...20 kHz (-1 dB), clamp opening 25 mm |
