EOL/this product is obsolete and not available anymore from the manufacturer.
Aaronia Signal and Tracking Generators

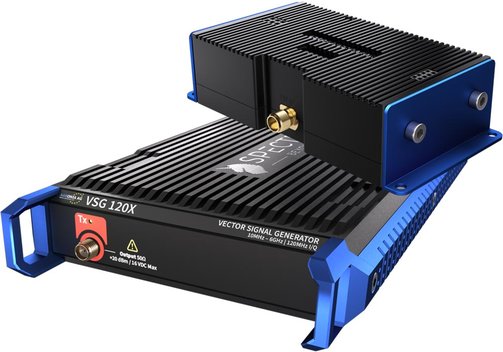

The Aaronia 401/00x series are compact RF signal generators as OEM modules (USB, stand-alone operation possible) or USB real-time vector signal generator/tracking generators as USB modules.
Model Overview

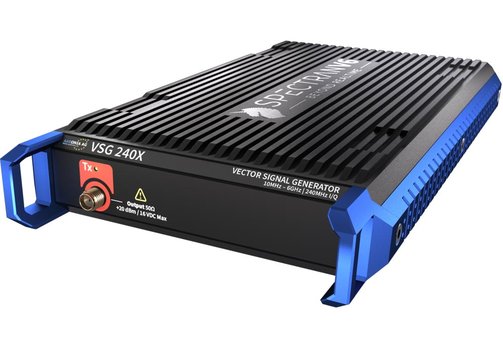

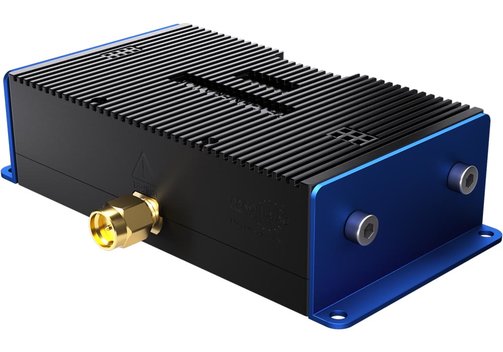

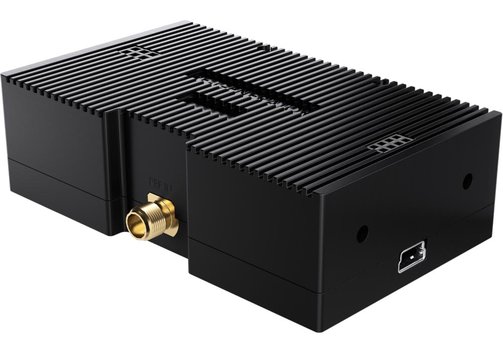

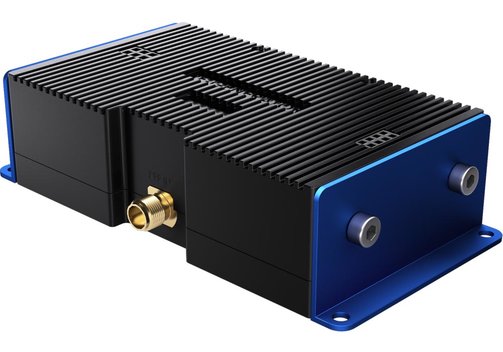

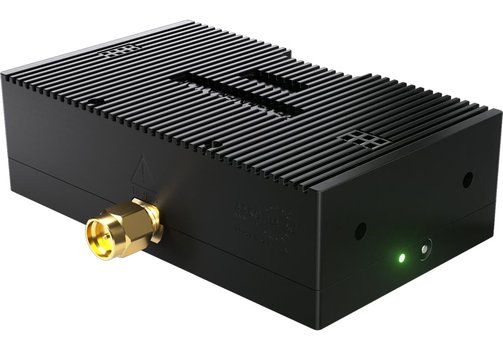

| Model | BPSG-4-OEM | BPSG-6-OEM | SPECTRAN-V6-VSG-120 | SPECTRAN-V6-VSG-240 |
| 401/002 | 401/004 | 401/005 | 401/006 | |
| Type | RF signal generator in compact OEM design | Vector signal generator/tracking generator | ||
| Frequency range | 35 MHz...4.4 GHz (accuracy: 1 Hz (<600 MHz) as well as 20 Hz (>600 MHz) | 23.5 MHz...6 GHz (accuracy: 1 Hz (<600 MHz) as well as 20 Hz (>600 MHz) | 75 MHz...6 GHz | |
| Power | Max. +17 dBm/min. -48 dBm | Max. +18 dBm/min. -45 dBm | Max. 20 dBm | |
| Dynamic range | ≤65 dB | ≤63 dB | - | |
| Sweep | - | 440 GHz/s | 1100 GHz/s | |
| Modulations | AM, FM, PM |
| ||

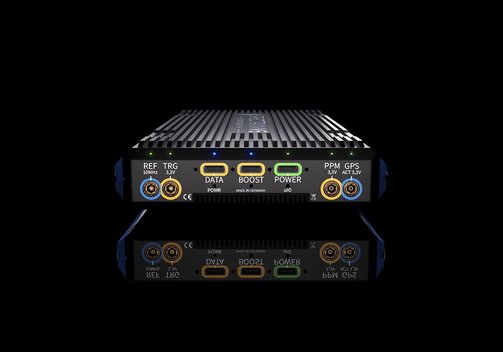

| Connection | SMA (male); SMA female: Reference clock for even higher accuracy | SMA (Tx), 4x SMB (trigger, refclock, GPS, PPM, all 50 Ω) | ||
| Interface | USB 1x or 2x | USB 3.0 (USB 3.1 Gen1; USB 3.2 Gen1) | ||
| Streaming bandwidth (complex I/Q) | - | 120 MHz (via 2x USB) | 240 MHz (via 2x USB) | |
| Power supply | Battery (incl.), 12 V adaptor/charger | USB 3.2 Gen 1 Type-C PD 3.0, typ. 15 W | ||
| Dimensions (mm) | 81 x 61 x 29; 150 g | 210 x 115 x 30; 850 g | ||
Included:
BPSG signal generator, carrying case, international power supply/charger, SMA tool, USB cable, SMA-to-SMA adaptor (female-female), PC control software.
SPECTRAN-V6-VSG120 or 240, USB power supply, USB power cable, USB data cable and USB stick.
