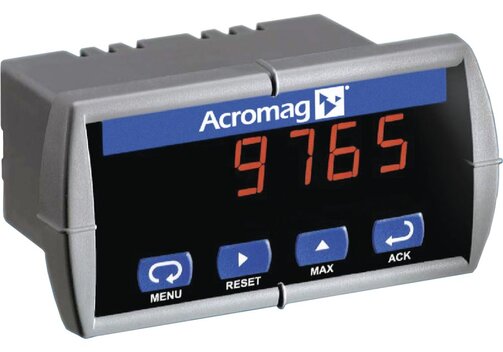

Acromac APM Series Panel Meters with Digital Display

Acromac APM Series Panel Meters with Digital Display

The Acromag APM series displays data collected from process current, DC voltage and temperature inputs.

• Panel meters with digital display.
• Inputs:
  4...20 mADC,
  ±20 mADC,
  ±10 VDC,
  thermocouples (type J, K, T, E),
  100 Ω platinum RTDs.
• Outputs (depending on model):
  4...20 mA (sink/source),
  dual SPDT (form C) 3-A relays for limit alarm or pump control,
  RS232, RS422/485 serial communication.
• Power requirements (depending on model):
  85...265 VAC or 90...265 VDC;
  12...24 VAC or 12...36 VDC.
• Operating temperature 0...+65°C.
• Push-button or PC programmable.
• 24 VDC isolated power (models -10).
• Modbus RTU communication.
• Data acquisition and logging capabilities with MeterView software.
• 0.56"/14.2 mm red LEDs; four digits (-1999 to 9999).

Model Overview
