Description
Files/Downloads

Benefits of the BK8540 DC Load up to 60 V, 30 A, 150 W

  • Very compact and light weight - space-saving.
  • Over-current and over-voltage protection.
  • Save up to 400 instrument settings.

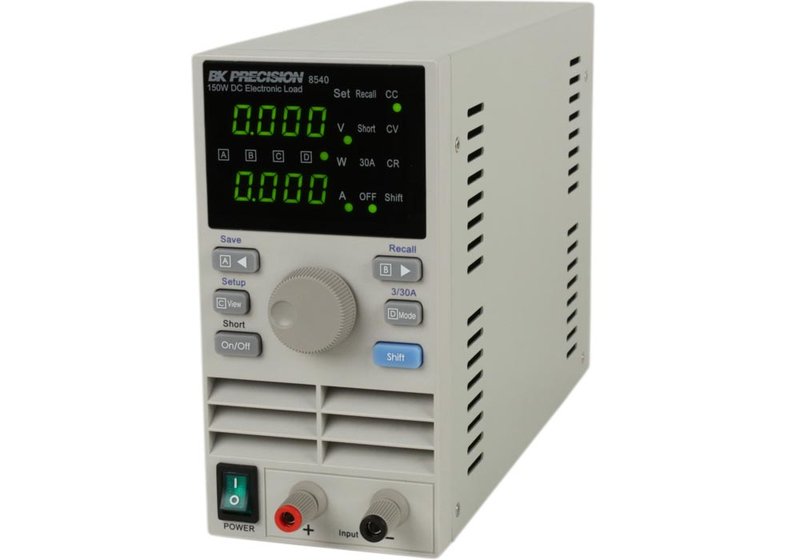

B+K Precision BK8540 150 W DC Electronic Load

The B+K Precision BK8540 is a very compact, economically priced DC electronic load. It can be used on both the bench and the production floor. The BK8540 can reliably test a 5 V power supply to 30 A and do it continuously. The load can operate in CC, CV or CR mode while voltage/current or resistance/power values are measured and displayed in real time. The BK8540's performance is comparable to most full size bench DC electronic loads, yet it does the job at half the price and takes up half the space on your bench.

  • Compact electronic DC load.
  • Operates between 0...60 VDC/1 mA...30 A (max. 150 W).
  • Easy operation.
  • Bright, easy-to-read display.
  • Very compact and light weight.
  • Two current ranges: 3 A (1 mA resolution) and 30 A (10 mA resolution).
  • CC (constant current), CR (constant resistance) and CV (constant voltage) operation.
  • Over-current and over-voltage protection.
  • Short mode to simulate shorts.
  • Up to 400 instrument settings can be saved.

Included: BK 8540, power cord, user manual.
