Brainboxes ED Series Ethernet Remote-I/O Modules

Brainboxes ED series Ethernet remote-I/O modules
additional images:
progressive price
taking 1 pcs
from
€ 138,00
taking 5 pcs
from
€ 134,55
taking 10 pcs
from
€ 132,48
Price
starting 138,00*
starting € 164,22 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
** currently out of stock
Stock:
Description
 PDF datasheet, specs:

Benefits

  • Remote measurement and control via Ethernet network.
  • Industrial versions with extended temperature range.
  • Models with wide range redundant dual power input +5...+30 VDC

Compact Remote Modules for Ethernet - Series ED-000/200, Wall-Mountable.

The Brainboxes ED-000/200 series are wall-mountable (optional DIN-rail mounting kit), industrial remote-I/O modules with various I/O combinations. They offer digital-I/O, relays or interface conversion to serial/RS232 - depending on the model. They are supported by a variety of software options.

  • Ethernet: 10BaseT/100BaseTX. Ethernet-to-I/O isolation. Supports Modbus TCP or ASCII commands.
  • Serial - ED-004/204: RS232 with 1 MBaud rate.
  • Digital-I/O: Number of channels see table below. Inputs: Individual NPN/PNP jumper configuration. Non-isolated. Outputs: Current sink low-side switch, open-drain MOSFET.
  • Relays - ED-038: 3 form A SPST, normally open. Contact ratings: 5 A at 30 VDC or 250 VAC or 110 AAC.
  • Wall-mountable, optional DIN-rail mountable, compact, rugged IP 30 housing.
  • Temperature range of -0...+60°C.
  • Status LED.
  • Power supply: +5...+30 VDC. Can use 5 V power from any computer USB port via optional accessory cable.
  • Signed drivers for a wide variety of third party softwares.

Remote Modules/Device Servers for Ethernet - Series ED-500, DIN-Rail Mountable.

The Brainboxes ED-500 series are DIN-rail mountable, industrial remote-I/O modules/device servers with various I/O combinations. Depending on the version they offer analog inputs/outputs, digital-I/O, relays or interface conversion to serial/RS232, RS422, RS485. For industrial applications, they have an extended temperature range of -30...+80°C and are supported by a variety of software options.

  • Ethernet: 10BaseT/100BaseTX, protocols: ICMP, IP, TCP, DHCP, Telnet, HTTP. Web server/browser interface. Ethernet-to-I/O isolation.
  • Serial - ED-504: RS232, RS422, RS485 port (software selectable) with 1 MBaud rate.
  • Digital-I/O: Number of channels see table below. Inputs: Individual NPN/PNP jumper configuration. Non-isolated. Outputs: Current sink low-side switch, open-drain MOSFET.
  • Relays - ED-538: 4 form A SPST, normally open. Contact ratings: 5 A at 30 VDC or 250 VAC or 110 AAC.
  • Analog inputs - ED-549: 8, independently configurable as differential voltage inputs (±10, ±5, ±2.5, ±1 V, ±500, ±250, ±150, ±75 mV) or current inputs (±20, 0...20, 4...20 mA). 16 bit resolution. Isolated from power, network, RS485 port.
  • Analog outputs - ED-560: 4, voltage outputs (0...10 V) or current outputs (0...20, 4...20 mA; sink, requires external power source). 12 bit resolution. Isolated from power, network, RS485 port.
  • Models with built-in RS485 gateway to NuDAM/ADAM industrial modules.
  • DIN-rail mountable, slim shape. IP 20 housing.
  • Extended temperature range of -30...+80°C.
  • Watchdog feature.
  • Status LED.
  • Power supply: Redundant dual power input +5...+30 VDC. Can use 5 V power from any computer USB port via optional accessory cable.
  • Signed drivers for a wide variety of third party softwares.

Model Overview

Model Ethernet Analog inputs Analog outputs Digital-I/O Relays Interface conversion Additional interfaces

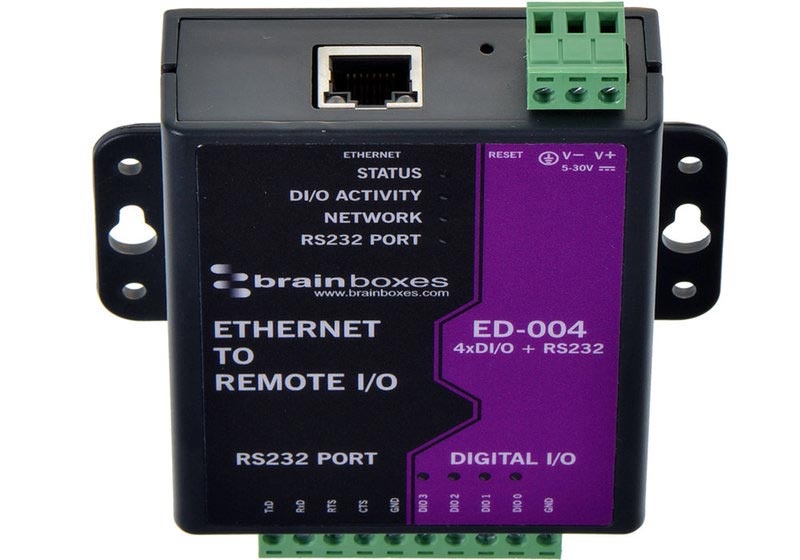

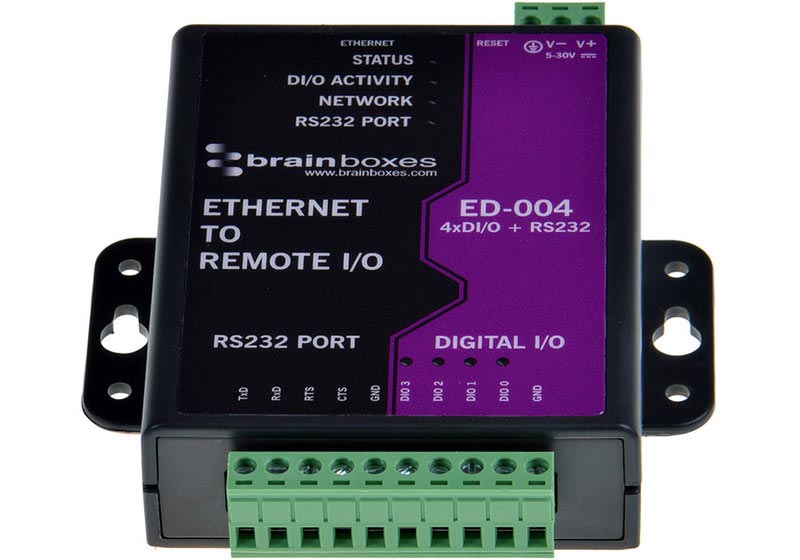

ED-004 1x Ethernet 10BaseT/100BaseTX (RJ45) - - 4 channels either input or output - 1x serial RS232, 1 MBaud -

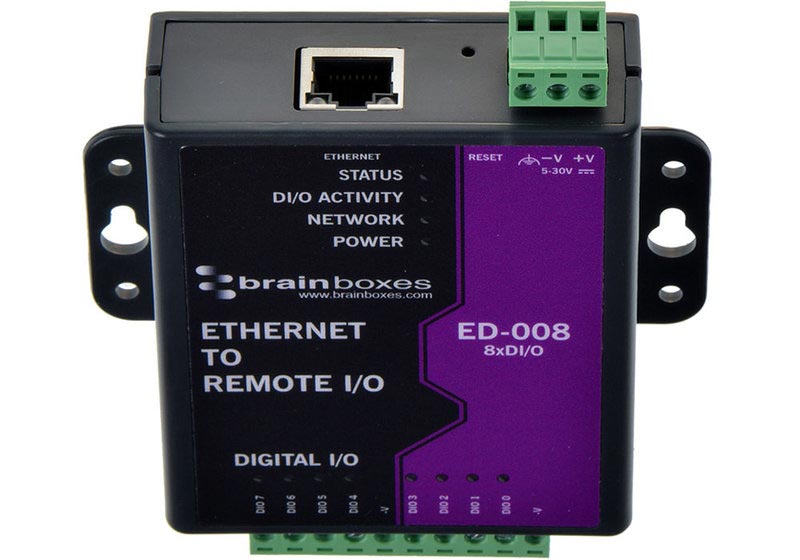

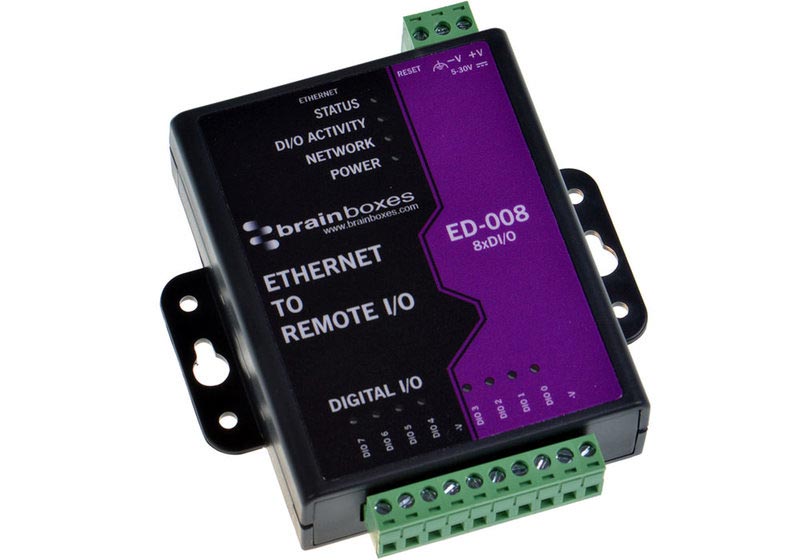

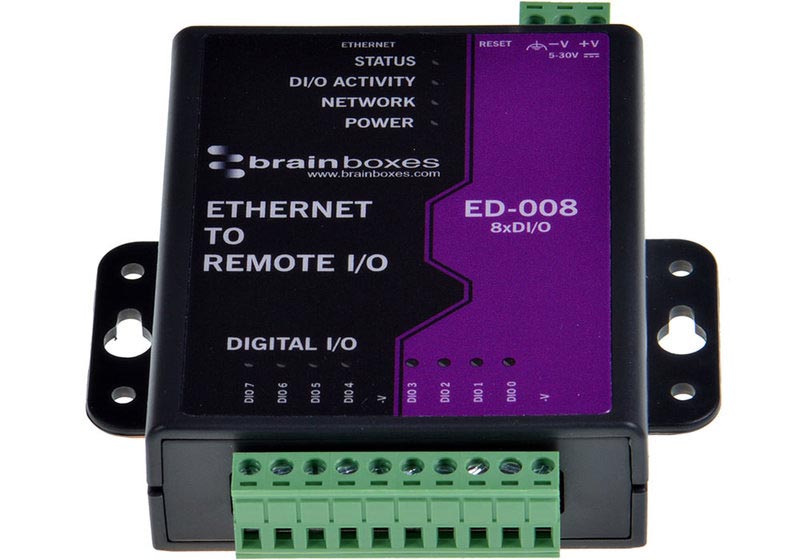

ED-008 1x Ethernet 10BaseT/100BaseTX (RJ45) - - 8 channels either input or output - - -

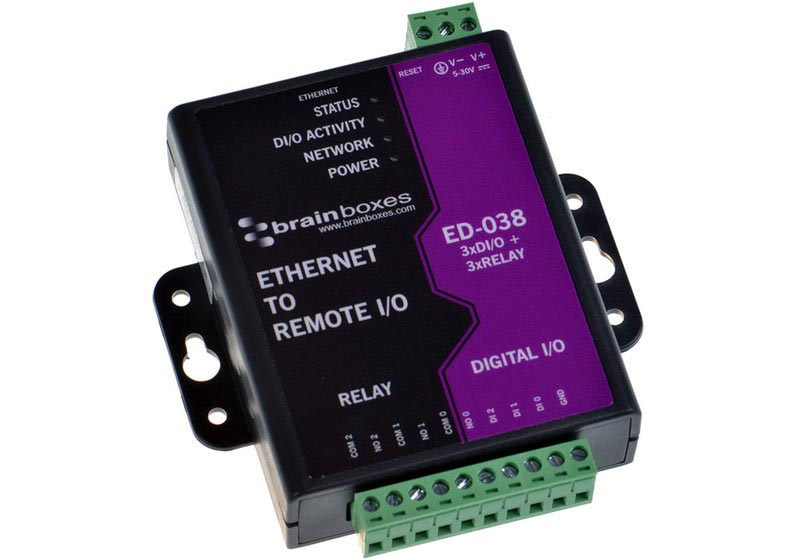

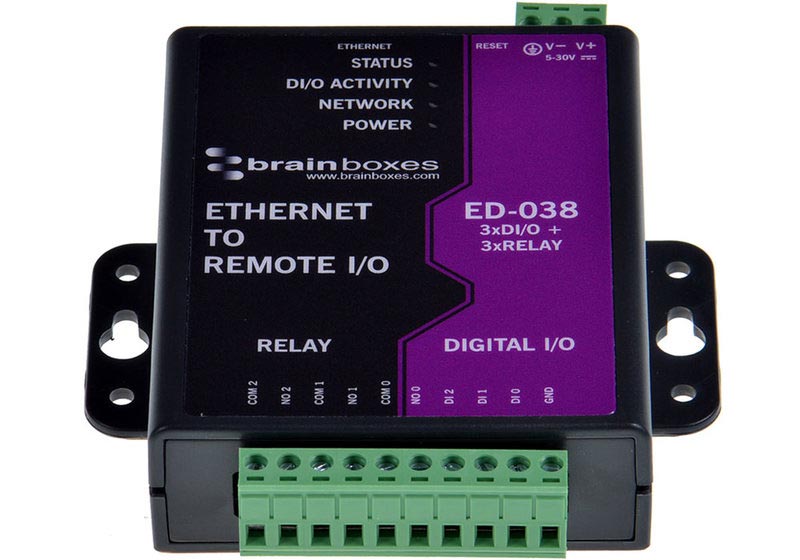

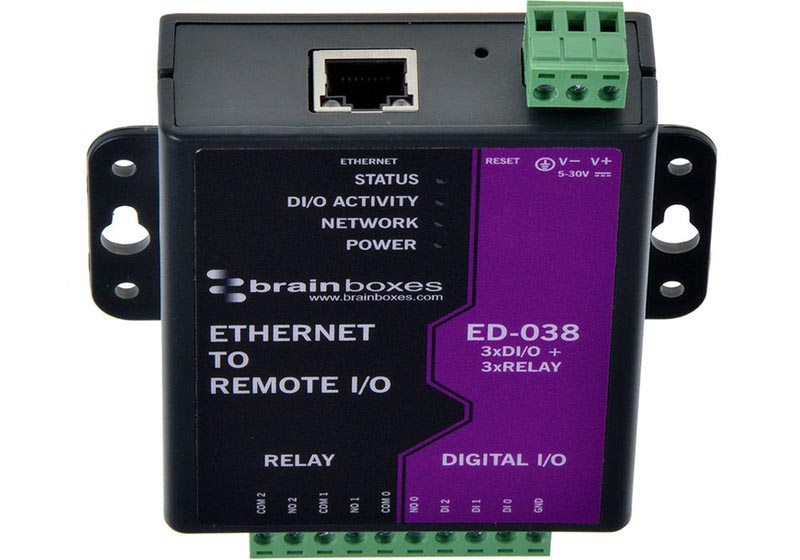

ED-038 1x Ethernet 10BaseT/100BaseTX (RJ45) - - 3 input channels 3, form A - -

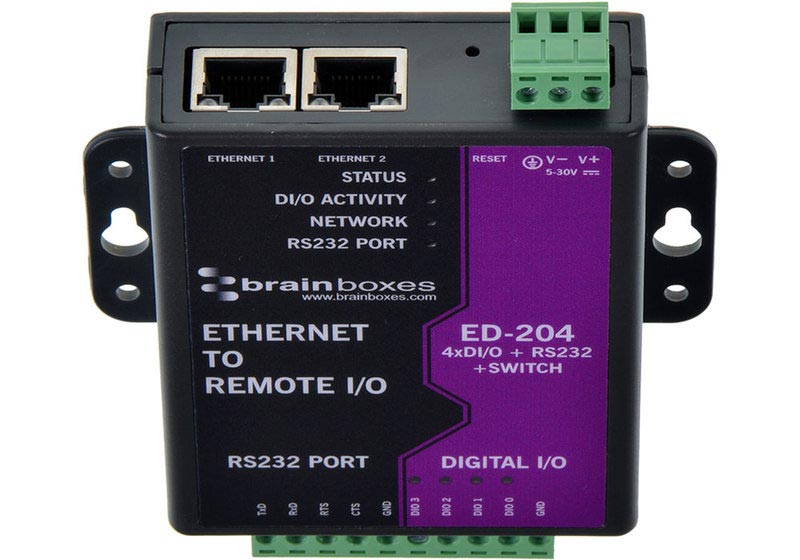

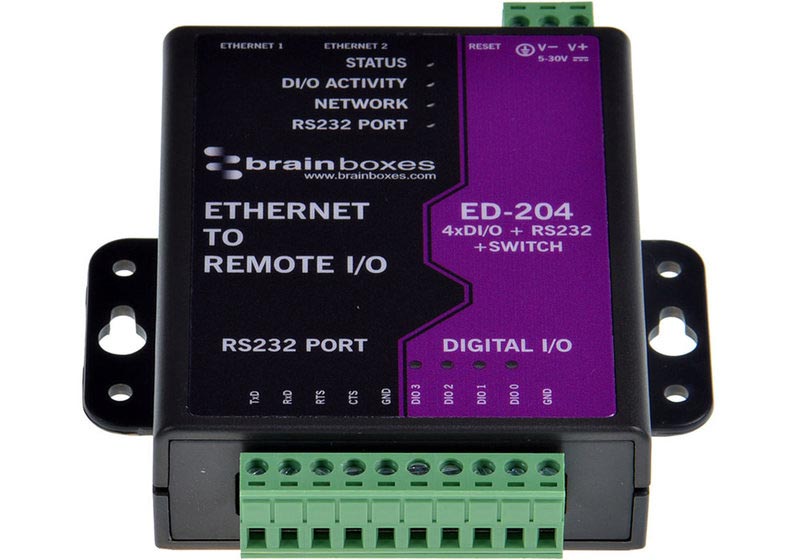

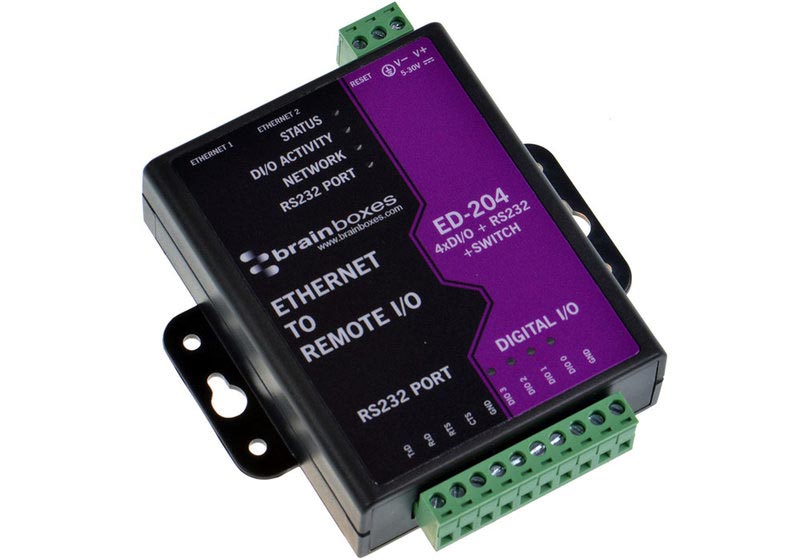

ED-204 2x Ethernet 10BaseT/100BaseTX (RJ45) - - 4 channels either input or output - 1x serial RS232, 1 MBaud -
ED-504** 2x Ethernet 10BaseT/100BaseTX (RJ45) - - 4 channels either input or output - 1x serial RS232/RS422/RS485, 1 MBaud -

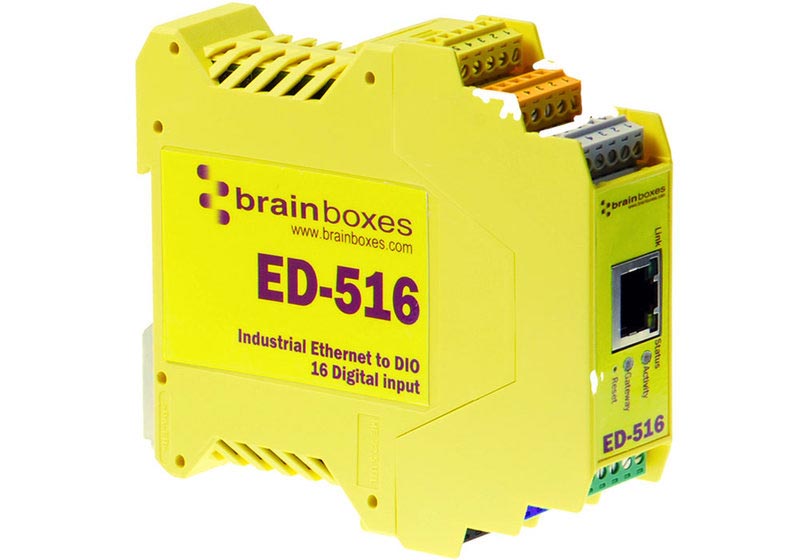

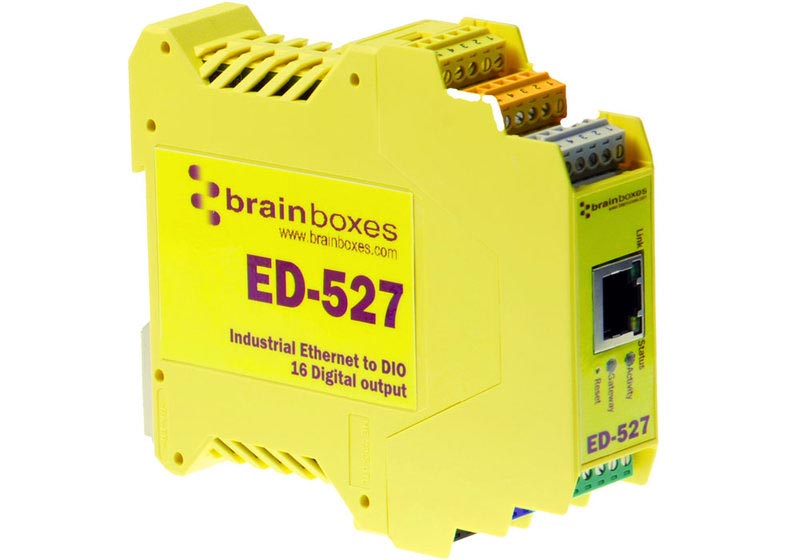

ED-516 1x Ethernet 10BaseT/100BaseTX (RJ45) - - 16 input channels - - NuDAM/ADAM module connection
ED-527 1x Ethernet 10BaseT/100BaseTX (RJ45) - - 16 output channels - - NuDAM/ADAM module connection
ED-538 1x Ethernet 10BaseT/100BaseTX (RJ45) - - 8 input channels 4, form A - NuDAM/ADAM module connection

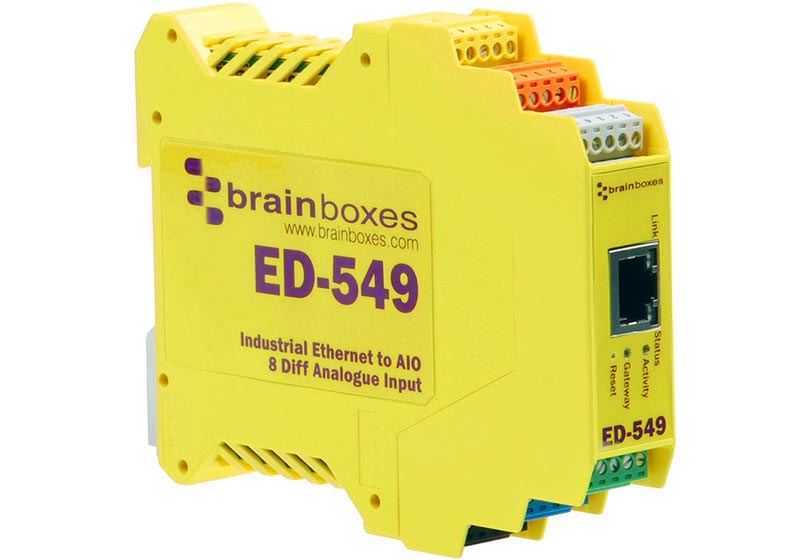

ED-549 1x Ethernet 10BaseT/100BaseTX (RJ45) 8 differential, voltage or current, 16 bit - - - - NuDAM/ADAM module connection

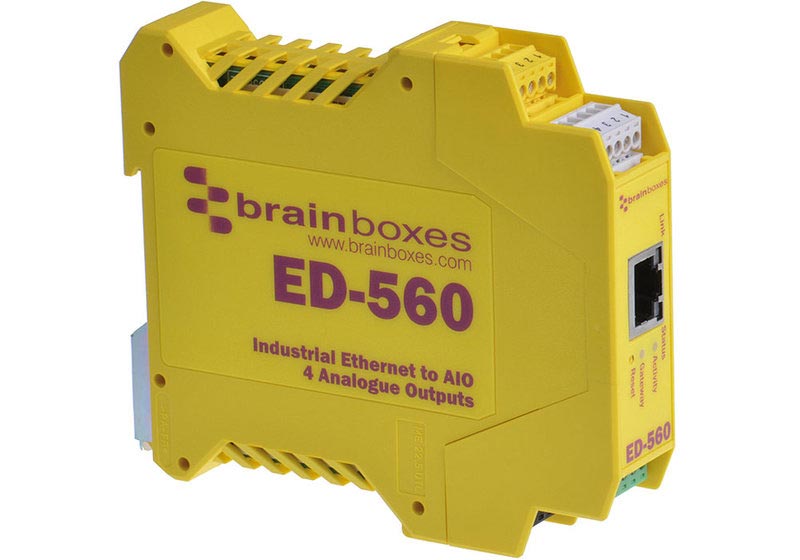

ED-560 1x Ethernet 10BaseT/100BaseTX (RJ45) - 4, current or voltage, 12 bit - - - NuDAM/ADAM module connection

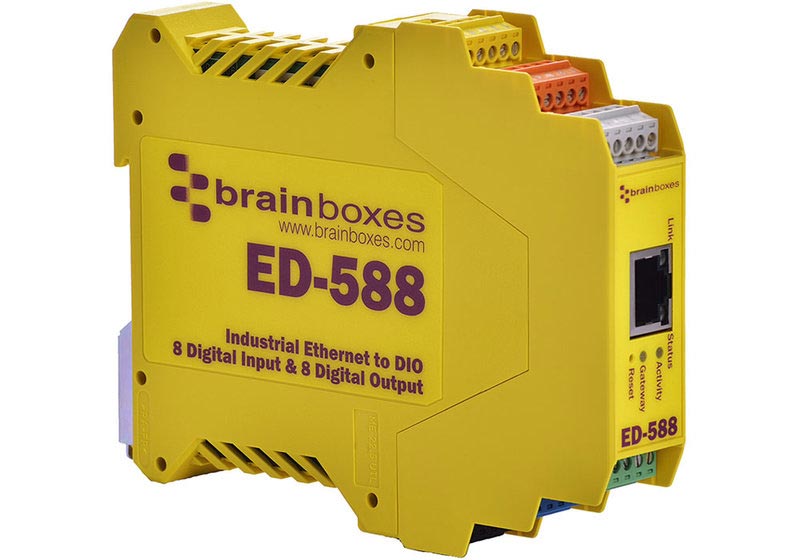

ED-588 1x Ethernet 10BaseT/100BaseTX (RJ45) . . 8 input channels, 8 output channels . . NuDAM/ADAM module connection

** This product is in a process of redesign and is currently not available.

Included: Module, installation CD including manual, Microsoft signed drivers & utilities, quick start guide.

Software: Driver support for operating system
Microsoft Windows 10, suitable for any device with a web browser, Windows 8 (32 bit and 64 bit editions), Windows Server 2012, Windows Server 2008 R2, Windows 7 (32 bit and 64 bit editions), Windows Server 2008 (32 bit and 64 bit editions), Windows Vista (32 bit and 64 bit editions), Windows XP (32 bit and 64 bit editions), Windows 2000,
Linux,
Raspberry Pi,
Android,
iOS,
Mac OS-X.

Can be used in a variety of environments like Microsoft .NET C#, Visual Basic C++, JavaScript, Android JAVA API, Java, PHP, Perl, Python. Compatible with COM port applications (eg. MATLAB, LabVIEW)
Boost.IO Manager lets you find, install and upgrade devices.

Accessories, options
starting 6,75*
starting € 8,03 brutto
starting 21,50*
starting € 25,59 brutto
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
