Brainboxes Pure Embedded Series
Benefits of the PE Series Embedded Ethernet Switches
- Very compact industrial embedded Ethernet switches.
- Seamless integration with design software - logical placements and fixed distances.
- 3D CAD files and PCB footprints.

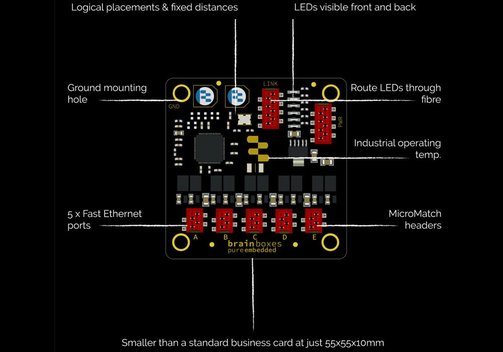

Brainboxes Pure Embedded Series
- 3D CAD files and PCB footprints.

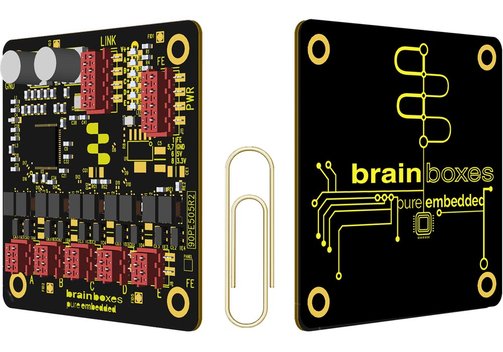

- Mega compact form - smaller than a standard business card.
- Seamless integration with design software - logical placements and fixed distances.
- Board-to-board and board-to-cable connection.
- Stability of design guaranteed for min. 10 years.
- LEDs visible in all orientations - option to route through fibre.
Brainboxes PE-205 - Pure Embedded DC-DC Industrial Power Supply Module 3.3 V, 4 W
The Brainboxes PE-205 is an embedded DC-DC power supply module. It offers a wide +5 to +30 VDC input range, with two 3.3-V outputs, designed to allow seamless integration with Brainboxes' Pure Embedded (PE) range of compact industrial switches, or any other low voltage device where space is a premium.

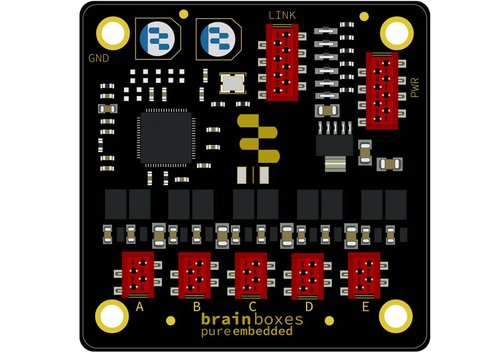

Brainboxes PE-505, PE-508, PE-151 - Pure Embedded 5- and 8-Port Industrial Ethernet Switches
The Brainboxes PE-505/508 are 5-/8-port 10/100 Ethernet, the Brainboxes PE-151 is a 5-port Gigabit Ethernet switch. The switches have a mega compact formfactor. 3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software. Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes, or by electrical signal wired out of the connector.

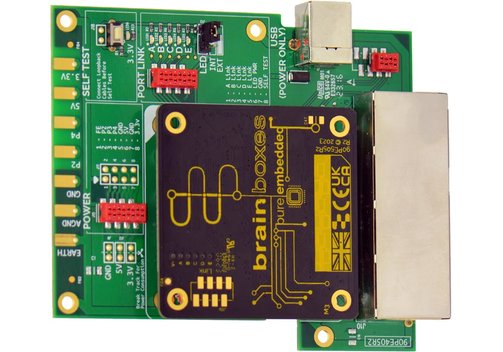

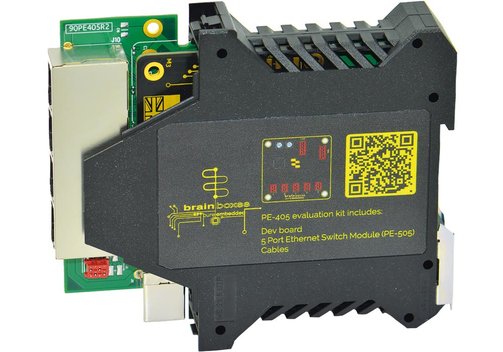

Brainboxes PE-405, PE-415 - Pure Embedded 5 Port Industrial Ethernet Evaluation Kits
The Brainboxes PE-405 is a 10/100 Ethernet switch evaluation kit, the Brainboxes PE415 is a Gigabit Ethernet switch evaluation kit. It allows easy access to all features of the PE-505 or PE-515 and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made. The kit includes the 5-port 10/100 Ethernet switch (PE-505 or PE-515), evaluation board (breaks out all ports and functionality to RJ45 or usable headers), 5x IDC header to RJ45 cable, IDC headers, USB power pable.
Model Overview
| Model | PE-205 | PE-405 | PE-415 | PE-505 | PE-508 | PE-515 |
| Type | DC-DC power supply module | 10/100 Ethernet evaluation kit | Gigabit Ethernet evaluation kit | 5-port 10/100 Ethernet unmanaged switch | 8-port 10/100 Ethernet unmanaged switch | 5-port Gigabit Ethernet unmanaged switch |
| Communication features | - | 5 Ethernet ports (4x RJ45 and 1x IDC); 10/100 Fast Ethernet | 5 Ethernet ports 4x RJ45 and 1x IDC); 10/100/1000 Gigabit Ethernet | 5 Ethernet ports; 10/100 Fast Ethernet | 8 Ethernet ports; 10/100 Fast Ethernet | 5 Ethernet ports; 10/100/1000 Gigabit Ethernet |
| Supplied power | 3.3 V, max. 4 W | - | - | - | - | - |
| Power input | +5...+30 VDC; power consumption max. 5 W | +3.3 or +5 VDC, reverse polarity protected; power consumption max. 2.5 W | +3.3 or +5 VDC, reverse polarity protected; power consumption max. 3.3 W | +3.3 or +5 VDC, reverse polarity protected; power consumption max. 2.5 W | +3.3 or +5 VDC, reverse polarity protected; power consumption max. 2.5 W | +3.3...+5 VDC, reverse polarity protected; power consumption max. 3.3 W |
| Operating temperate rating | -40...+85°C | -40...+85°C | -40...+85°C | -40...+85°C | -40...+85°C | -40...+85°C |
| Dimensions (mm) | 66.7 x 67.3 x 9.4; 0.022 kg | 117 x 98 x 22; 0.118 kg | 117 x 98 x 22; 0.123 kg | 55 x 55 x 7.1; 0.018 kg | 55 x 55 x 12.4; 0.019 kg | 55 x 55 x 12.1; 0.023 kg |
