DSCA49 Isolated Voltage Output Modules

DIN-Rail Mountable Transducers, Industrial Signal-Conditioning

DSCA49 Isolated Voltage Output Module with Bandwidth 1 kHz

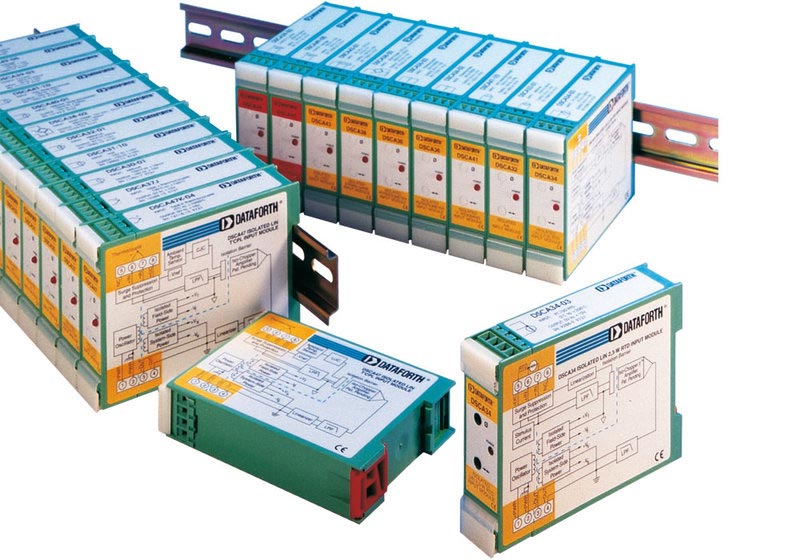

Like the 5B or 8B series, the DSCA49 from the DSCA series are modules for industrial signal conditioning. The difference is, that they don't require a backpanel, but can directly be mounted on DIN-rails.

• input and output range combination of 0...10 V and/or ±10 V in Kombinationen.

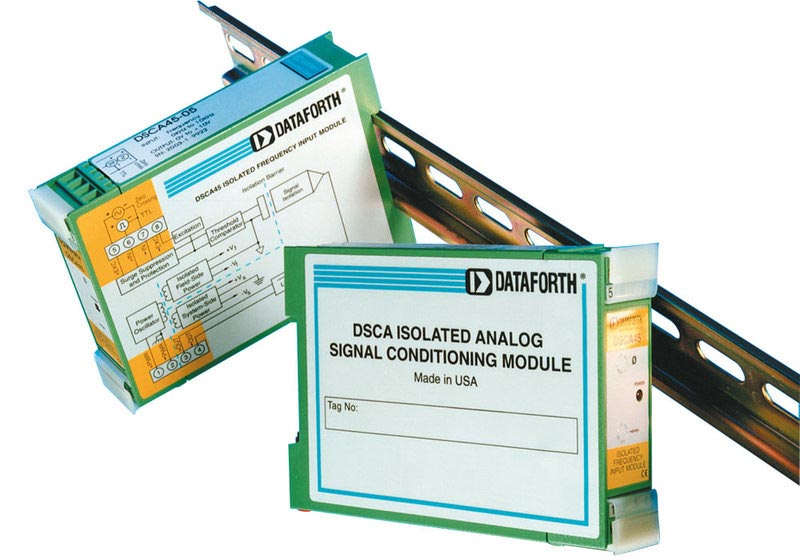

• 35 mm DIN-rail mountable.
• Pluggable screw terminals for signals and power.

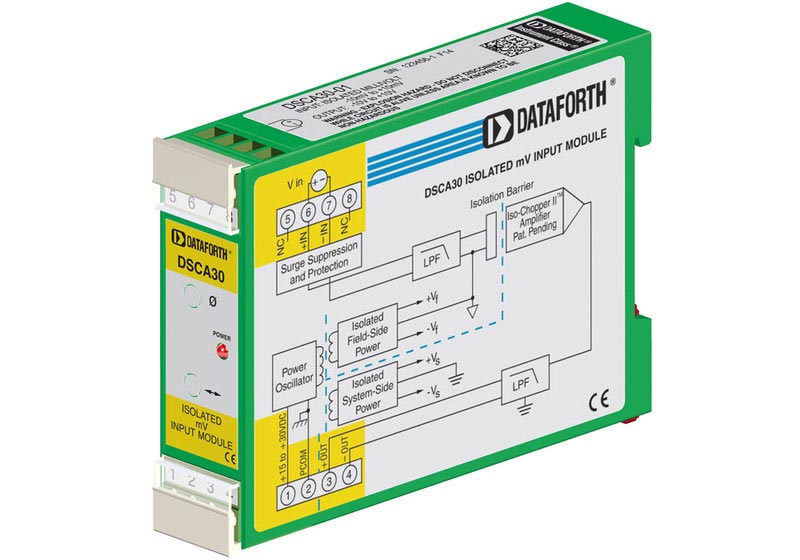

• Functional block diagram printed on the modules' enclosures.
• Power-on LED.
• High longtime stability.
• 3-way isolation up to 1.5 kV.

Model Overview

Information on product safety:

Manufacturer:
Dataforth Corporation, 3331 E. Hemisphere Loop, Tucson, Arizona (AZ) 85706-5011/USA
www.dataforth.com
