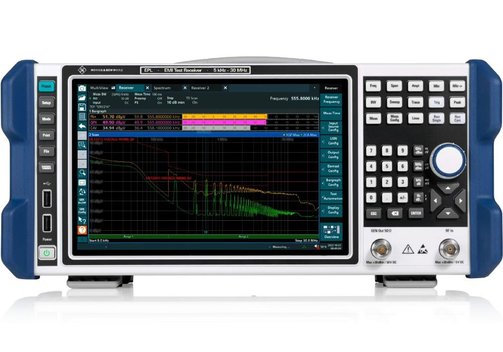

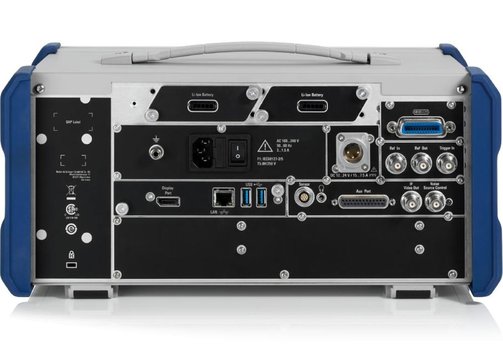

Rohde & Schwarz EPL1000 EMI Test Receiver
Benefits of the EPL1000 for Fast and Accurate Conducted Measurements
- For applications in the areas of pre-compliance and compliance.
- Frequency range 5 kHz to 30 MHz.
- Flexible option concept for upgrading according to requirements and budget.
Rohde & Schwarz EPL1000 EMI Test Receiver
The Rohde & Schwarz EPL1000 was specially designed for conducted measurements in the range of 5 kHz to 30 MHz for pre-compliance testing. The basic unit offers a time domain scan and preselection with preamplifier. It also fully complies with CISPR 16-1-1. The EPL1000 automatically performs radio interference measurements across several individually defined frequency ranges. The results can be easily saved and printed. The EPL devices also offer in-depth analysis functions, including a real-time spectrogram and four-channel crack rate analysis. Battery operation, a 12 V to 24 VDC input, and other extras make for extremely flexible use.
- Tests from 5 kHz to 30 MHz.
- Pre-compliance and compliance testing.
- Flexible option concept: purchase only what you need and upgrade at any time.
- Fast time domain scan.
- Battery operation for mains-independent use.
- Hardware protection and attenuation of strong signals.
- Automatic use of the full dynamic range and overload handling.
- EMI bandwidths and detectors.
- Improved measurement of broadband disturbances and short pulses.
- Measurements of small signals.
- Fully compliant with CISPR 16-1-1.
- Using CISPR-defined resolution bandwidths (RBWs), the EPL can measure the entire CISPR A or B band in a single measurement.
Model Overview
| Model | R&S EPL1000 |
| Basic product code | 1350.4444.10 |
| Frequency range | 5 kHz...30 MHz |
| CISPR 16-1-1 compliant | Full |
| Four-channel click rate analysis | Supported |
| Bar graph - level at a frequency | Supported |
| Realtime spectrogram - level vs. frequency and time | Supported |
| Zero span - level at a frequency vs. time | Supported |
| Time domain scan | Supported |
| Preselection with preamlifier | Supported |
| Display | 10.1"/25.7 cm LC TFT color display, resolution 1280x800 Pixel (WXGA) |
| Interfaces | USB, LAN/Ethernet |
| Power supply | Netz, optional battery (option FPL1-B31), or 12/24 VDC (option FPL-B30) |
| Dimensions (mm) | 408 x 189 x 235, 6.9 kg (without options; 8.6 kg with battery) |
Package Overview
| Model | Description | |
| EPL1000 | 1350.4444.10 | 30 MHz basic device EMI test receiver 5 kHz to 30 MHz, CISPR 16-1-1 compliant |
Included: Basis accessory of EPL series: power cord, quick start guide.
Information on product safety:
Manufacturer:
Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 München/DEU
www.rohde-schwarz.com
