FOTRIC specializes in state-of-the-art thermal and acoustic imaging technologies and also combines this expertise in "mix" cameras that combine both technologies in one device.
Thanks to high-quality technical specifications and models with sophisticated analysis functions in the device and AI assistance, the cameras help improve predictive maintenance, safety inspections, and energy efficiency in various industries. These include research and development/R&D, manufacturing, electric utilities, building inspection, maintenance and reliability, metallurgy, oil, and gas.

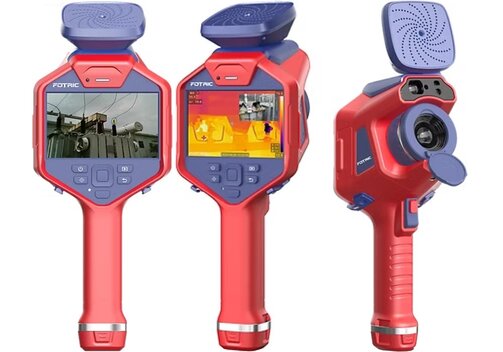

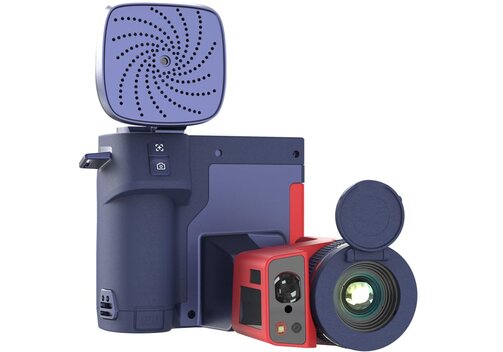

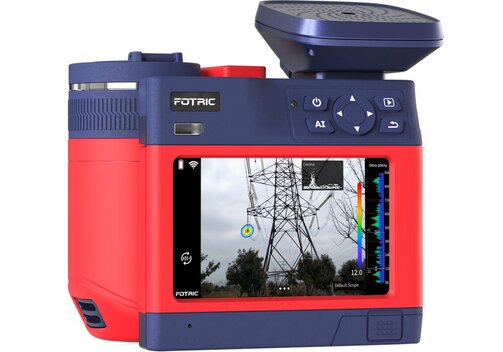

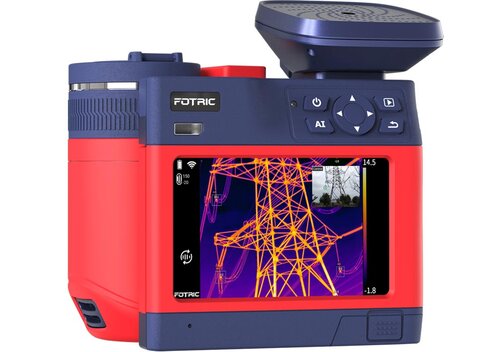

The FOTRIC AcoutTherm series are combined imaging cameras with thermal imaging and acoustic imaging. The VMix has a classic handheld "pistol grip" design, the PMix a swiveling camera design. Both cameras have up to 640x480 IR resolution and use up to 162 MEMS digital microphones. The cameras can work in three modes: IR, AC, and MiX.
Contact us to schedule an appointment with our experts and learn more about the extensive possibilities! Demo devices are also available upon request.
Model Overview
| Model | V5Mix | V7Mix | P5Mix | P7Mix |
| Design | Handheld, "pistol grip" | Handheld, "pistol grip" | Camera design, swiveling | Camera design, swiveling |
| iR resolution/number of pixels) | 384x288 | 640x480 | 384x288 | 640x480 |
| Thermal sensitivity (NETD/noise equivalent temperature difference) | 40 mK | 30 mK | 40 mK | 30 mK |
| Total measurement range (temperature range) | -20...+650°C | -20...+650°C | -20...+650°C | -20...+650°C |
| IR field of view FoV) | 25°x19° | 25°x19° | 25°x19° | 25°x19° |
| Accuracy | ±2°C or ±2%, whichever is greater | ±2°C or ±2%, whichever is greater | ±2°C or ±2%, whichever is greater (ambient temperature at 25°C) | ±1°C or ±1%, whichever is greater (ambient temperature at 25°C, range 0...+100°C), ±2°C or ±2% for other temperature range |
| Spectral range | 7...14 µm | 7...14 µm | 7...14 µm | 7...14 µm |
| Frame rate | 30 Hz | 30 Hz | 30 Hz | 30 Hz |
| Focus | Manual, auto focus | Manual, auto focus | Manual, auto focus | Manual, auto focus |
| Digital MEMS microphones | 140 | 162 | 140 | 162 |
| Acoustiv image FoV/field of view | 66°x52° | 66°x52° | 66°x52° | 66°x52° |
| Working distance | 0.3...100 m | 0.3...100 m | 0.3...100 m | 0.3...100 m |
| Frequency range | 2...100 kHz | 2...100 kHz | 2...100 kHz | 2...100 kHz |
| Detection mode | Leak, partial discharge | Leak, partial discharge | Leak, partial discharge | Leak, partial discharge |
| Touch screen | ✓ | ✓ | ✓ | ✓ |
| Digital camera | 13 MP | 13 MP | 5 MP (visual), 13 MP (acoustic) | 5 MP (visual), 13 MP (acoustic) |
| Video-capable | ✓ | ✓ | ✓ | ✓ |
