EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the TA3 Thermal Camera Adaptor for Smart Phones

  • Very easy to use, get started in seconds.
  • 256 x 192 thermal resolution.
  • Supported by a versatile app.

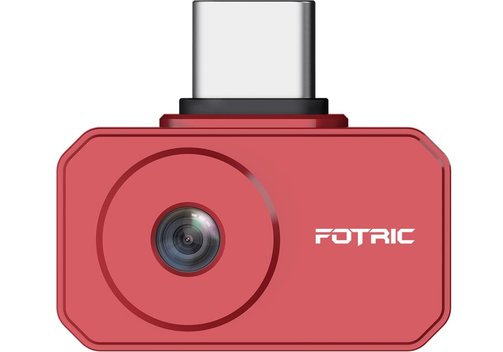

FOTRIC TA3 Plug-in Thermal Camera

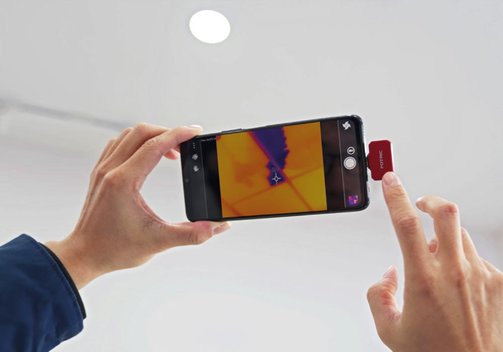

The FORTRIC TA3 is a plug-in thermal camery for smart phones. It takes vivid images with 256 x 192 thermal resolution and a 56° wide-angle lens. The TA3 only takes 1 s to plug it in and start shooting. It is powered from the smart phone and also makes use of the smart phone display. It is supported by the "ReShi"-App.

  • Plug-in thermal camera, plugs into the USB port of your smartphone.
  • Takes vivid images with 256 x 192 thermal resolution.
  • 56° field of view, more information, broader perspective.
  • Get started in 1 s to plug it in and start shooting.
  • Powered by your phone.
  • Very compact.
  • Paired with the "ReShi" app (accessible on Google Store).
  • Resizable and movable PIP feature, allows seamless fusion between the thermal and digital view.
  • 10 color palettes, offers more ways to look at the infrared world.

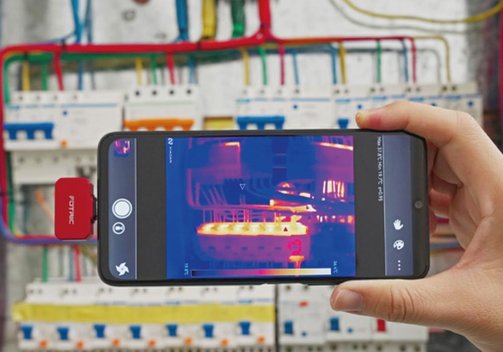

  • Temperature range from -10...550°C, from hunting, to electrical inspection, to furnace inspection, the limit is your imagination.

Model Overview

ModelFOTRIC TA3
DetectorResolution256 x 192
Detector pitch12 µm
NETD≤50 mK at 25°C
Spectral band8...14 µm
PerformanceFrame rate25 Hz
Operating temperature-10...+55°C
Storage temperature-40...+85°C
Typical power consumption350 mW
LensFocal length3.2 mm
ApertureF1.1
Field of view56.0°(H) x 42.2° (V), 71.3°(D)
Focus typeFixed focus
Temperature measurementTemperature range-10...+150°C, +50...+550°C (uncalibrated below 0°C)
Accuracy±3°C or ±3% of reading whichever is greater
Temperature measurement compensationDistance, ambient temperature, emissivity
EnclosureMax. dimension (mm) 30 x 26 x 10; approx. 10 g
InterfaceUSB type-C
Software functionsPalettes10
Temperature measurement toolsPoint, line and area temperature measurement tools
CompatibilityAndroid 6.0 and above cell phones
Software updatesOnline update

Included: FOTRIC TA3, portable storage case, quick start guide.
