Rohde & Schwarz FPC Series Spectrum Analyzers up to 3GHz
Benefits of the R&S FPC Spectrum Analyzers with Unrivaled Entry Class Performance
- Spectrum analyzer, tracking generator, and VNA.
- Frequency range 5 kHz to 1 GHz, 2 GHz, or 3 GHz.
- Large 10.1"/21 cm WXGA display.
Rohde & Schwarz FPC Series Spectrum Analyzers up to 3 GHz

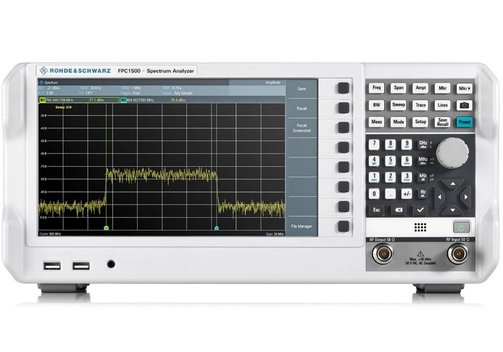

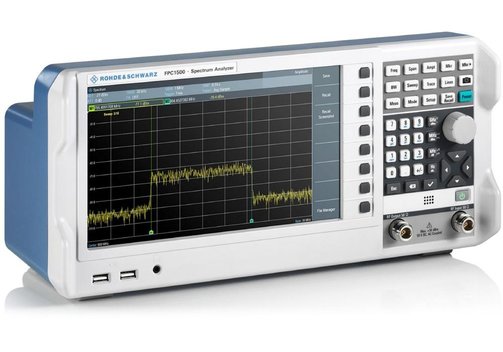

R&S FPC1000 and FPC1500 High-Quality Analyzers
With the R&S FPC series, Rohde & Schwarz proves that excellent quality and innovative technology do not have to be expensive. The spectrum analyzers of the FPC series offer unique performance and are easy on the wallet. The devices were developed and designed in Germany to meet the same quality standards as high-end devices. Thanks to their unique VSWR bridge equipment, 1-port vector reflection measurements can be performed, for example – ideal for impedance measurements of RF antennas or RF circuits using Smith charts or for detecting cable faults in long RF cables. Other options: tracking generator, signal generator (CW), modulation analysis, receiver mode.
- Spectrum analyzer, variants with co-generator and VNA.
- Frequency range 5 kHz to 1 GHz, 2 GHz, or 3 GHz.
- RF performance engineered in Germany.
- 10.1"/21 cm WXGA (1366x768 pixel) display – largest and highest resolution in class.
- Tracking generator and independent CW signal generator.
- Built-in VSWR bridge.
- One port vector network analyzer with Smith chart display.
Model Overview
| Model | R&S FPC1000 | R&S FPC1500 |
| Basic product code | 1328.6660.02 | 1328.6660.03 |
| Frequency range | 5 kHz...1 GHz, 2 GHz (option FPC-B2), 3 GHz (option FPC-B2 and -B3) | |
| Device type | Spectrum analyzer | Spectrum analyzer, tracking gneerator, VNA |
| SBB phase noise | <–92 dBc (1 Hz, f = 500 MHz, 30 kHz oOffset) | |
| DANL at 1 GHz | <–158 dBm/Hz FPC–B22 | |
| Resolution bandwidth (–3 dB) | 1 Hz...3 MHz in 1/3-sequence | |
| Display | 10.1"/21 cm WXGA, 1366x768 | |
| Interfaces | USB 2.0, LAN/Ethernet | |
| Dimensions (mm) | 396 x 178 x 147 (with feet: 396 x 185 x 156); 3 kg | |
Package Overview
| Model | Description | |
| FPC1000 | 1328.6660.02 | 1 GHz basic device - entry-level spectrum analyzer 5 kHz...1 GHz |
| FPC-P1 | 1328.6660P01 | Package with FPC1000 |
| FPC-P2 | 1328.6660P02 | Package with FPC1000, FPC-B2 frequency upgrade 1 GHz to 2 GHz |
| FPC-P3 | 1328.6660P03 | Package with FPC1000, FPC-B2 frequency upgrade 1 GHz to 2 GHz, FPC-B3 frequency upgrad 2 GHz to 3 GHz |
| FPC1000-RM | 1328.6660P97 | Package with FPC1000 spectrum analyzer, FPC-K43 receiver mode |
| FPC-COM1 | 1328.6660P98 | Package with FPC1000, FPC-B2 frequency upgrade 1 GHz to 2 GHz, FPC-B3 frequency upgrade 2 GHz to 3 GHz, FPC-B22 pre-amplifier, FPC-K7 modulation analysis, FPC-K43 receiver mode, FPC-K55 advanced measurements |
| FPC-EMI1 | 1328.6660P63 | Package with FPC1000, FPC B22 pre-amplifier, FPC-K43 receiver mode |
| FPC1500 | 1328.6660.03 | 1 GHz basic device entry-level spectrum analyzer 5 kHz...1 GHz with tracking generator |
| FPC-P1TG | 1328.6660P11 | Package with FPC1500 (with tracking generator) |
| FPC-P2TG | 1328.6660P12 | Package with FPC1500 (with tracking generator), FPC-B2 frequency upgrade 1 GHz to 2 GHz |
| FPC-P3TG | 1328.6660P13 | Package with FPC1500 (with tracking generator), FPC-B2 frequency upgrade 1 GHz to 2 GHz, FPC-B3 frequency upgrade 2 GHz to 3 GHz |
| FPC-COM2 | 1328.6660P99 | Package with FPC1000 (with tracking generator), FPC-B2 frequency upgrade 1 GHz to 2 GHz, FPC-B3 frequency upgrade 2 GHz to 3 GHz, FPC-B22 pre-amplifier, FPC-K7 modulation analysis, FPC-K42 vector reflection measurement, FPC-K43 receiver mode, FPC-K55 advanced measurements |
Included: Basic accessories for FPC series: power cable, USB cable for connection to PC.
Information on product safety:
Manufacturer:
Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 München/DEU
www.rohde-schwarz.com
