Benefits of the M Series IR Cameras with 8MP Visual Camera
- 6 model variants according to requirements and budget.
- High resolution thermal detector up to 640x480.
- Wide temperature measurement range up to -20...+650°C, high accuracy.

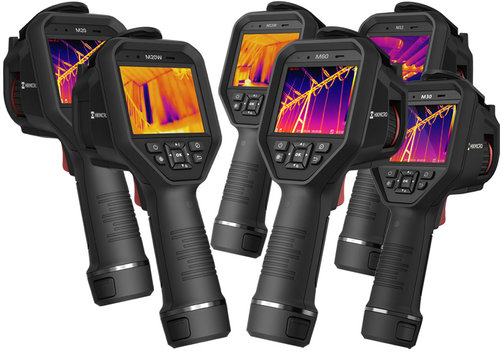

HIKMICRO M Series Handheld Thermal Cameras
Series M10, M11W, M20W, M30, M60 IR Cameras with Visual 8-MP Camera
The HIKMICRO M series handheld cameras are equipped with a 640x480 (M60), 384x288 (M30), 256x192 (M20W, M20), 192x144 (M11W, M11), or 160x120 (M10) resolution thermal detector. They help users to quickly find high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
- High sensitivity thermal module with a resolution of:
M60: 640x480 (307,200 pixels).
M30: 384x288 (110, 592 pixels).
M20W, M20: 256x192 (49,152 pixels).
M11W, M11: 192x144 (27,648 pixels).
MW10: 160x120 (19,200 pixels). - SuperIR up to
M60: 1280x960 (1,228,800 pixels).
M30: 768x576 (442,368 pixels).
M20W, M20: 512x384 (196,608 pixels).
M11W, M11: 384x288 (110,592 pixels). - Supports multiple palettes.
- High quality optical module with 8 MP resolution.
- Bi-spectrum image fusion, picture-in-picture preview.
- Wide temperature measurement range, high temperature measurement accuracy
M60: -20...+650°C; max. (±2°C/3.6°F, ±2%), for ambient temperature +15...+35°C (+59...+95°F) and object temperature above 0°C (32°F).
M30: -20...+550°C; up to ±2°C, ±2%.
M20W, M20, M11W, M11, M10: -20...+550°C; max. (±2°C/3.6°F, ± 2%), for ambient temperature +15...+35°C (+59...+95°F) and object temperature above 0°C (32°F). - 640x480 resolution 3.5"/8.9 cm LCD touch display.
- Long-distance laser light supplement for thermography targets.
- LED light supplement makes the device a torch in required scenarios.
- 1.0x to 8.0x continuous digital zom.
- Supports remote album access, download and quick report with APP.
Model Overview
| Model | Part number | IR resolution | Field of view (FOV) | Focus, NETD | Image frequency | Visible camera | Object temperature range | Storage media (SD) | Display | Battery | Interfaces |

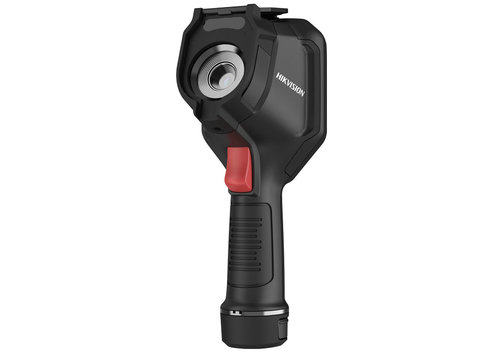

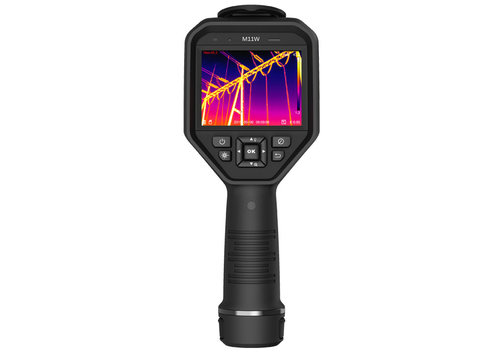

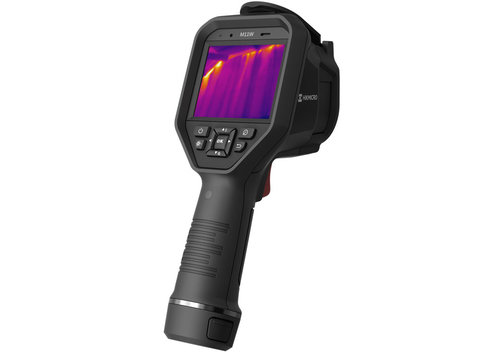

| M11W | HM-TP21S-3AQF/W-M11W | 192x144 | 37.2°x27.8° | Focus free, NETD <40 mK | 25 Hz | 8 MP | -20...550°C, ±2°C/±2% | 16 GB | 3.5"/8.9 cm 640x480 LCD touch screen | Replaceable | Wi-Fi, Bluetooth, USB type C, laser pointer |

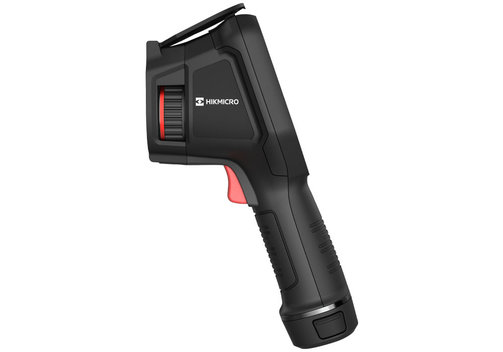

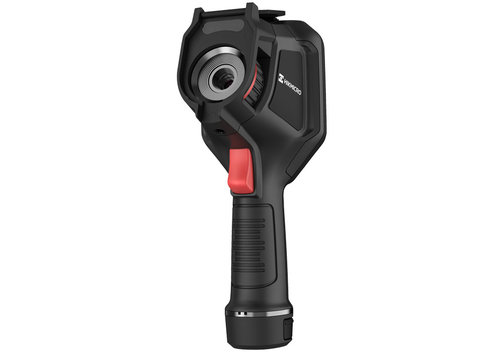

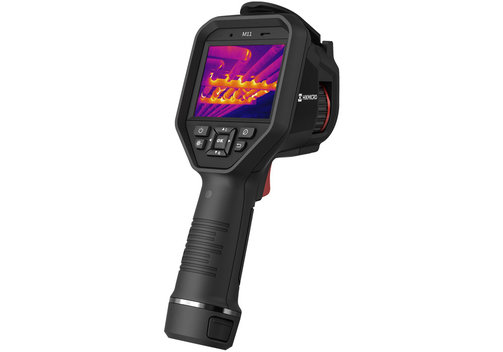

| M11 | HM-TP21S-7QF/W-M11 | 192x144 | 18.75°x14.1° | Manual focus, NETD <40 mK | 25 Hz | 8 MP | -20...550°C, ±2°C/±2% | 16 GB | 3.5"/8.9 cm 640x480 LCD touch screen | Replaceable | Wi-Fi, Bluetooth, USB type C, laser pointer |

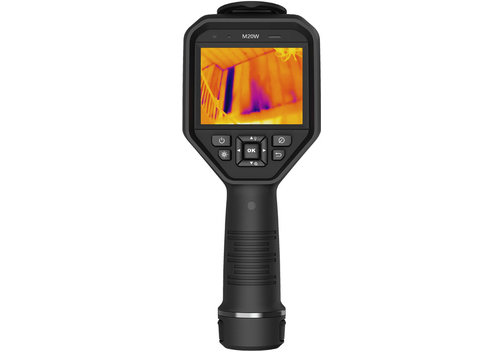

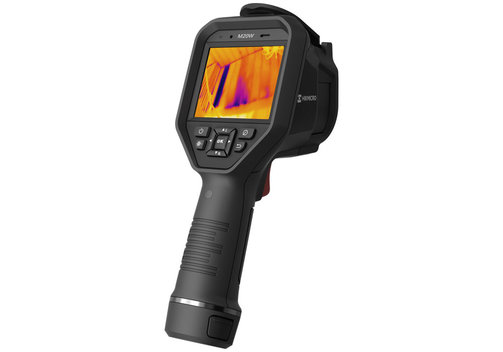

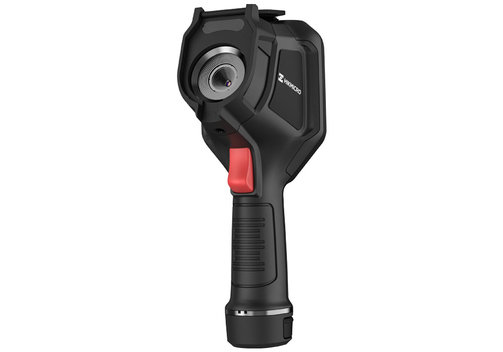

| M20W | HM-TP22-3AQF/W-M20W | 256x192 | 50°x37.2° | Focus free, NETD <40 mK | 25 Hz | 8 MP | -20...550°C, ±2°C/±2% | 16 GB | 3.5"/8.9 cm 640x480 LCD touch screen | Replaceable | Wi-Fi, Bluetooth, USB type C, laser pointer |

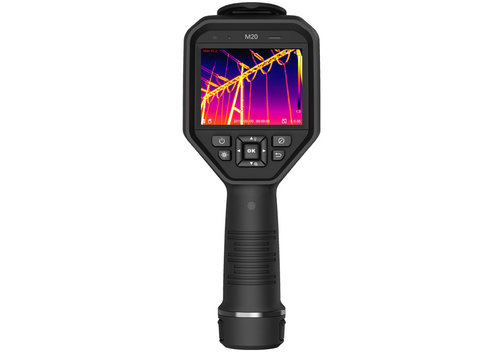

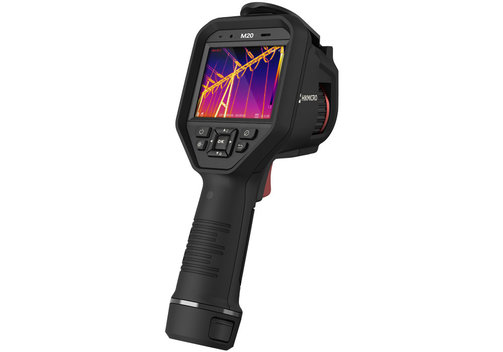

| M20 | HM-TP22-7QF/W-M20 | 256x192 | 25°x18.8° | Manual focus, NETD <40 mK | 25 Hz | 8 MP | -20...550°C, ±2°C/±2% | 16 GB | 3.5"/8.9 cm 640x480 LCD touch screen | Replaceable | Wi-Fi, Bluetooth, USB type C, laser pointer |

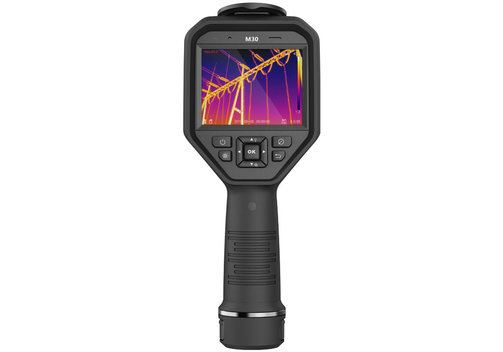

| M30 | HM-TP23-10VF/W-M30 | 384x288 | 38.2°x28.7° | Manual focus, NETD <35 mK | 25 Hz | 8 MP | -20...550°C, ±2°C/±2% | 64 GB | 3.5"/8.9 cm 640x480 LCD touch screen | Replaceable | Wi-Fi, Bluetooth, USB type C, laser pointer |

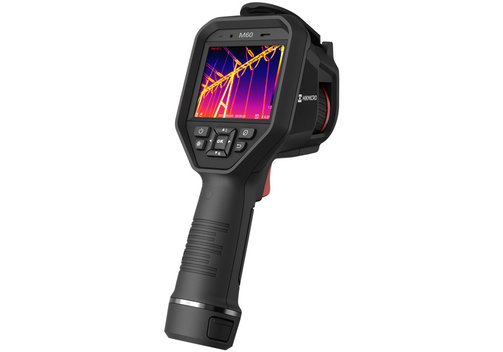

| M60 | HM-TP26-15QF/W-M60 | 640x480 | 41.9° x 33.3° | Manual focus, NETD <35 mK | 25 Hz | 8 MP | -20...650°C, ±2°C/±2% | 64 GB | 3.5"/8.9 cm 640x480 LCD touch screen | Replaceable | Wi-Fi, Bluetooth, USB type C, laser pointer |
Accessories Overview
| Type | Model | Description | |
| Battery | E097-13-1S1P26650 | Replaceable battery, 5000 m Ah, 3.7 V | for M series |
| Battery charger | HM-5202ZC | Battery charging base, power input 100...240 V/0.7 A, power output 12 V/2 A | for M series |
