HIKMICRO Mini Series IR Camera-Adaptor for Smartphones
Benefits of the Mini Series Plug-on Thermal Cameras for Smartphones
- Easy USB type-C connection to your Android smartphone - adds thermal imaging features.
- Thermal resolution up to 384x288, max. -20...+650°C (Mini3), high accuracy.
- Smartphone app for Android.
HIKMICRO Mini Series IR Camera-Adaptor for Smartphones

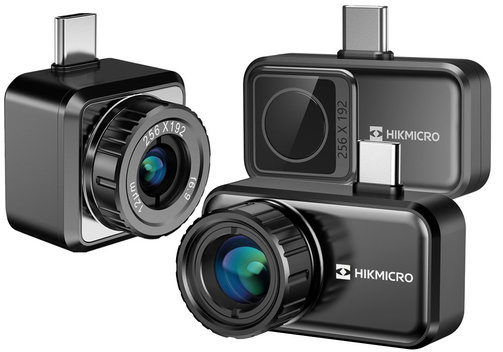

Series Mini2, Mini2plus, Mini3 Brings Thermal Imaging Features to your Android Smartphone
The HIKMICRO mini series makes your phone smarter by adding thermal imaging features. The Mini smartphone modules are designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with the functional thermal app for Andoid, the smartphone modules enable thermal imaging on your phone.

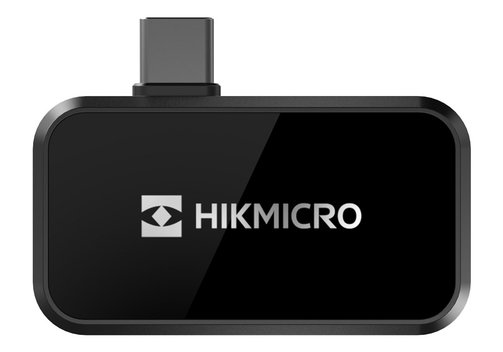

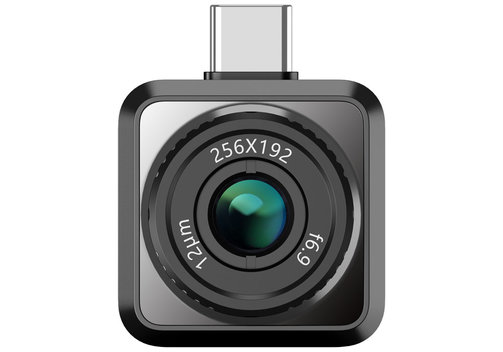

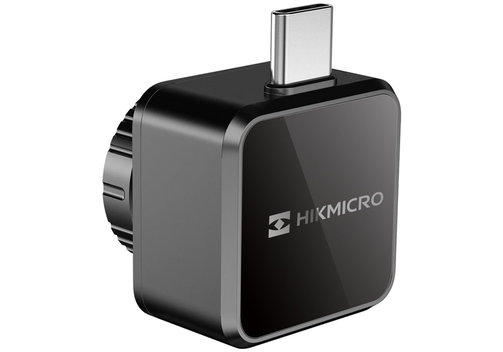

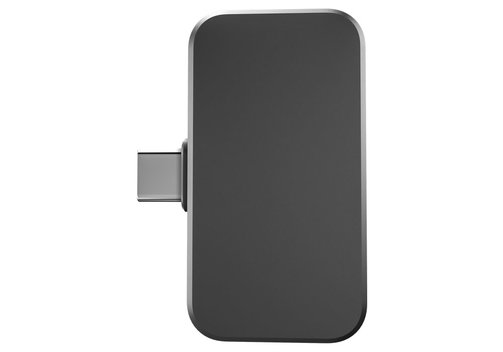

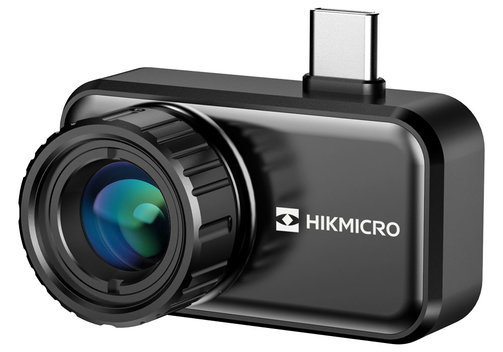

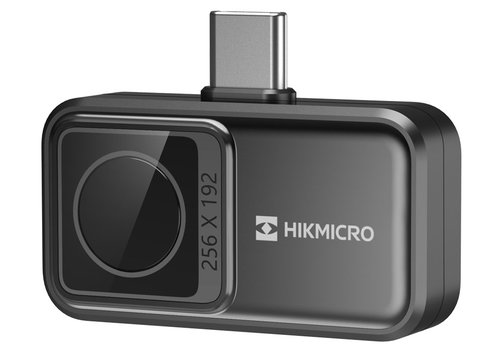

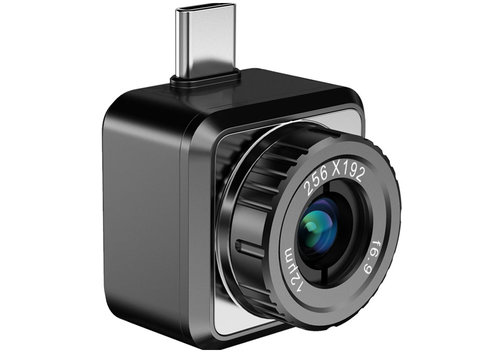

- Thermal resolution: 256x192 (49,152 pixels, Mini2 and Mini2Plus), or 384x288 (110,592 pixels, Mini3).
- NETD: <40 mK or <30 mK (at 25°C, F#=1.0).
- Accuracy: ±2°C (-20...+100°C); ±2% (+100...+350°C).
- Field of view (FOV) 50°x37.5° (Mini2), 25°x18.8° (Mini2Plus), or 26°x19° (Mini3).
- Focus free (Mini2) or with manual focus (Mini2Plus, Mini3).
- USB type-C interface (Android).
Model Overview
| Model | Mini2 V2 | Mini2Plus V2 | Mini3 | MiniX |
| Part number | HM-TJ12-3ARF-Mini2-V2 | HM-TJ32-7RF-Mini2Plus-V2 | HM-TJ33-10RF-Mini3 | HM-TJ52-3AQF/W-MiniX |
| IR resolution | 256x192 | 256x192 | 384x288 | 256x192 |
| NETD (at 25°C, F#=1.0) | <40 mK | <40 mK | <30 mK | <40 mK |
| Image frequency | 25 Hz | 25 Hz | 25 Hz | 25 Hz |
| Field of view (FOV) | 50°x37.5° | 25°x18.8° | 26°x19° | 37.2°x50.0° |
| Focus | Focus free | Manual | Manual | Manual |
| Object temperature range | -20...+150°C, +100...+400°C | -20...+150°C, +100...+400°C | -20...+150°C, +100...+650°C | -20...+120°C, +100...+550°C |
| Accuracy | Max. (±2°C/3.6°F, ±2%), applicable 60 s after start-up when ambient temperature +15...+35°C (+59...+95°F) and object temperature above 0°C (32°F) | |||
| Measurement tools | Center spot, hot spot, cold spot; user-definable: 3 spots, 1 line, and 3 rectangles | |||
| Interfaces | USB-C Android, USB-C iOS, Lightning iOS (incl. a Lightning to USB-C adapter) | Type-C interface for Android phone | Wifi 802.11 b/g/n (2.4 GHz and 5 GHz), USB Type-C; device compatibility: iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices | |
| Dimensions (mm) | 42 x 23 x 11; approx. 20 g | 27 x 27 x 24; approx. 26 g | 48 x 26 x 27; approx. 45 g | 155 x 39 x 32; approx. 158 g |
Mini2 (HM-TJ12-3ARF-Mini2) and Mini2Plus (HM-TJ32-7RF-Mini2Plus) are EOL/discontinued, replaced by versions V2.
Included: Thermal module Mini2 V2, Mini2Plus V2, Mini3, or MiniX, extension cord, USB adaptor, protective case, quick start guide; app via download/Google Play, also see compatibility list.
Information on product safety:
Manufacturer:
HIKMICRO Hangzhou Microimage Software Co., Ltd., Building A1, No. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang/CHN
www.hikmicrotech.com
