Description
Files/Downloads

Benefits

  • Makes it easy for designers to select and test the right antennas for their projects.
  • Offers easy to follow guide for antenna measurement.
  • Extremely compact in size with reduced form factor and USB-Interface.

Copper Mountain Technologies IoTest IoT Antenna Testing Kit

The reliability of an IoT device depends on the performance of its antenna. The Copper Mountain Technologies IoTest antenna testing kit helps designers of IoT devices to select and test the right antenna for their project.

In IoT design form factor is critical, and space is at a premium. The IoTest antenna testing kit has been specifically designed to help designers of IoT devices select and test the right antenna for their project, incorporating easy-to-use hardware, software, cable assembly and sample antennas, as well as educational materials and easy-to-follow guides.

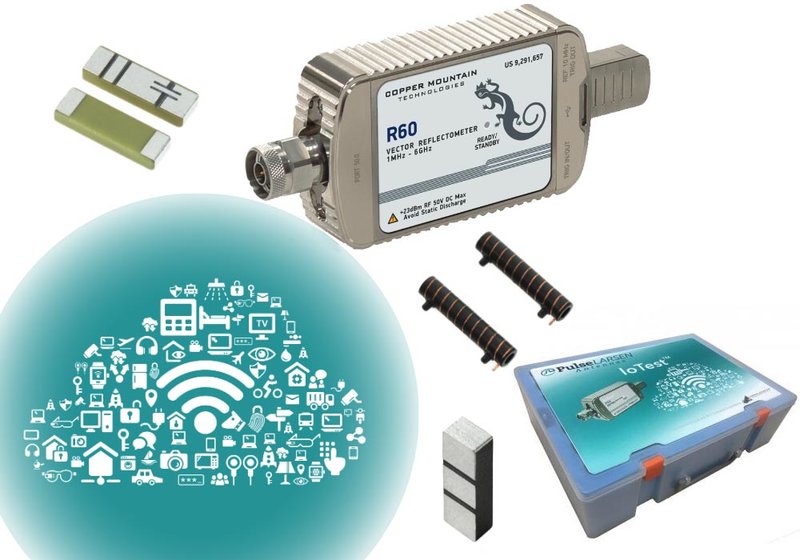

  • The IoTest testing kit includes
    • VNA/antenna analyzer R60,
    • antenna testing software,
    • demo antenna boards with specifications (GPS, WLAN, ISM, Wifi, Cellular antenna boards)
    • cable assembly to connect antennas to the analyzer,
    • P911 calibration kit.
  • Specially designed for the designers to select and test the right antennas for their projects.
  • Offers easy to follow guide for measurement of antennas.
  • Extremely compact in size with reduced form factor and USB interface.

Antenna Boards

  • W3544A-K: Embedded cellular 2G/3G pentaband composite antenna (824...2170 MHz).
  • W3796-K: Embedded cellular 2G/3G/4G composite antenna (698...2700 MHz).
  • W3544B-K: Embedded cellular 2G/3G pentaband composite antenna (824...2170 MHz).
  • W3136-K: Embedded ISM helical antenna (860...930 MHz).
  • W3139-868A-K: Embedded ISM helical antenna (860...930 MHz) with more ground clearance.
  • W3139-868B-K: Embedded ISM helical antenna (860...930 MHz) with less ground clearance.
  • W3139-915A-K: Embedded ISM helical antenna (860...930 MHz) with more ground clearance.
  • W3139-915B-K: Embedded ISM helical antenna (860...930 MHz) with less ground clearance.
  • W3010-K: Embedded GPS ceramic antenna (1575.42 MHz).
  • W3006-K: Embedded dual band Wifi ceramic antenna (2.4...6 GHz).
  • W3126-K: Embedded ISM helical antenna (315 MHz).
  • W3127-K: Embedded ISM helical antenna (433 MHz).
  • W3117-K: Embedded low profile helical antenna (869...894 MHz).
  • W3113-K: Embedded low profile helical antenna (902...928 MHz).
  • W3095-K: Embedded dual band GPS/2.4 GHz ceramic antenna (1575.42...2.4...2.5 GHz – 4.9...5.92 GHz) 2019-04-30 15 52 44-Pulse Electronics.
  • W3004-K: Embedded WLAN ceramic (5150...5950 MHz).
  • W3110-K: Embedded GPS helical antenna (1575.42 MHz).
  • W3108-K: Embedded 2.4 GHz helical antenna (2.4...2.5 GHz).
