Aaronia IsoLOG-3D-Mobile-PRO Portable 3D Antennas 9kHz...8GHz
Benefits of the IsoLOG-3D-Mobile-PRO All-in-one Antennas with two built-in Bypass Pre-Amplifiers
- Compatible with any spectrum analyzer.
- High gain and low noise.
- Manual or automatic axis switching.
Aaronia IsoLOG-3D-Mobile-PRO Portable 3D Antennas 9 kHz...8 GHz
The Aaronia IsoLOG-3D-Mobile-PRO are ultra light, small, portable, isotropic antennas available with three frequency range from 9 kHz to 3, 6 oder 8 GHz. The antennas are compatible with any spectrum analyzers and require no software installation, no power connection and no hardware changes - the ideal solution for 3D measurements under time pressure or mobile/outdoor/on the road.
- Compatible with any spectrum analyzer.
- 9 kHz to max. 8 GHz frequency range.
- High gain and low noise.
- Two built-in bypass pre-amplifiers (single or dual).
- Manual or automatic axis switching.
- Battery- or DC-powered.
- 6 h battery operating time.
Model Overview
| Model | Design | Frequency range | RF connector | Other tech. specs | |

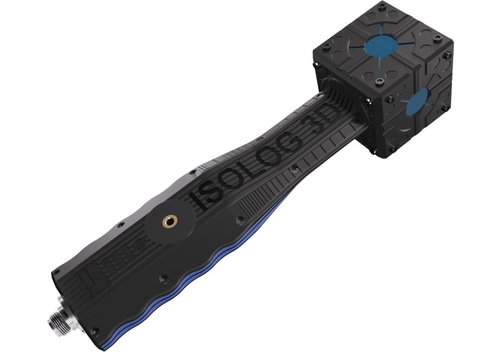

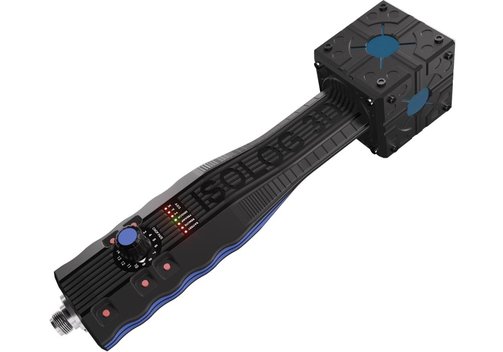

| IsoLOG-3D-Mobile-9030-PRO | 207/004 | Isotropic/3D, portabel | 9 kHz...3 GHz | N female (40 Ω), SMA or BNC with adaptor | 2 pre-amp. stages (+15 dB each at 2 GHz); chop/switch speed rate 1 Hz...50 kHz; dimensions (mm) 315 x 70 x 70; 350 g; tripod connection 1/4"; 650 mAh LiPo battery; USB 2.0 interface; temperature -10...+50°C (operation)/-20...+60°C (storage) |
| IsoLOG-3D-Mobile-9060-PRO | 207/005 | Isotropic/3D, portabel | 9 kHz...6 GHz | N female (40 Ω), SMA or BNC with adaptor | |
| IsoLOG-3D-Mobile-9080-PRO | 207/006 | Isotropic/3D, portabel | 9 kHz...8 GHz | N female (40 Ω), SMA or BNC with adaptor | |

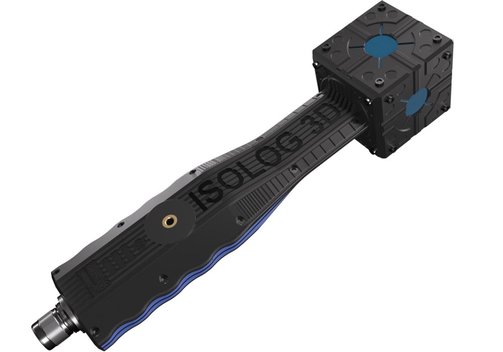

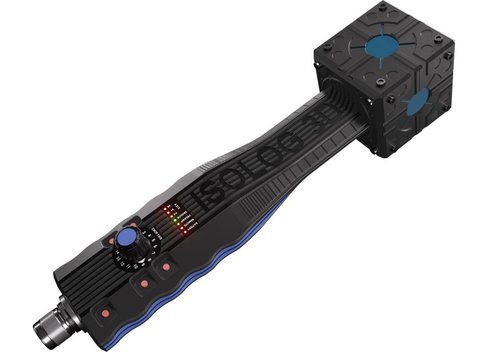

| IsoLOG-3D-Mobile-9030-PRO-N-male | 207/007 | Isotropic/3D, portabel | 9 kHz...3 GHz | N male (40 Ω), SMA or BNC with adaptor | 2 pre-amp. stages (+15 dB each at 2 GHz); chop/switch speed rate 1 Hz...50 kHz; dimensions (mm) 315 x 70 x 70; 350 g; tripod connection 1/4"; 650 mAh LiPo battery; USB 2.0 interface; temperature -10...+50°C (operation)/-20...+60°C (storage) |
| IsoLOG-3D-Mobile-9060-PRO-N-male | 207/008 | Isotropic/3D, portabel | 9 kHz...6 GHz | N male (40 Ω), SMA or BNC with adaptor | |
| IsoLOG-3D-Mobile-9080-PRO-N-male | 207/009 | Isotropic/3D, portabel | 9 kHz...8 GHz | N male (40 Ω), SMA or BNC with adaptor | |
Included: Antenna IsoLOG-3D-Mobile-9030-PRO, IsoLOG-3D-Mobile-9060-PRO, or IsoLOG-3D-Mobile-9080-PRO, built-in rechargeable battery, battery charger/power supply, transportation case, pistol grip with miniature tripod function, SMA-to-N adaptor for the connection of SMA cables.
