Description
Files/Downloads

Benefits of the IT-M7700 Series AC Power Supplies up to 3000 VA/3000 W

  • Harmonic analysis and simulation function.
  • Built-in abundant waveform database, including 30 harmonic distortion waveforms.
  • Optional three phase output available by three units Y-type external connections.

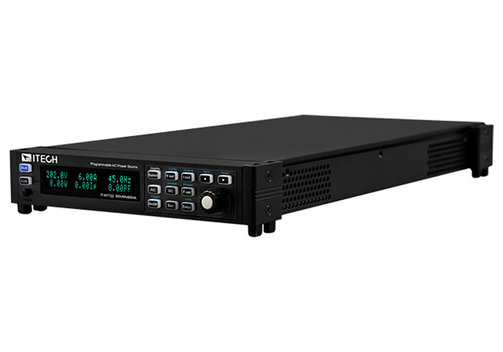

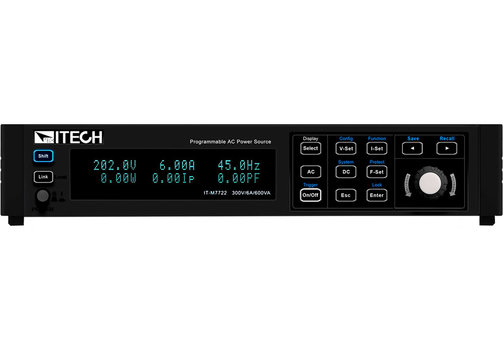

ITECH IT-M7700 High Performance Programmable AC Power Supply

Models ITECH IT-M7721, IT-M7722

The ITECH IT-M7700 series devices are high performance programmable AC power supplies in very compact, space-saving 1U half-rack size. Built-in power meter and arbitrary waveform generator make it convenient to simulate various arbitrary waveform outputs. The IT-M7700 power supplies can widely be used in multiple fields such as power energy products, home appliances, industrial electronics, avionics, military and IEC standards testing.

  • 1U half-rack compact design.
  • AC, DC, AC+DC output modes, DC voltage offset simulation in AC+DC mode.
  • Built-in AC power meter with powerful functions.
  • Built-in abundant waveform database, including 30 harmonic distortion waveforms.
  • List mode, simulate civil AC working condition, realize instantaneous power interruption simulation function (with PC/software).
  • Arbitrary waveform output function, user can customize waveforms.
  • Harmonic analysis function (IT-M7721, 7722, 7722E, 7723E).
  • Harmonic simulation function.
  • Surge/trap function.
  • Front and rear edge dimmer phase dimming function.
  • Settable output waveform start/stop phase angle.
  • Higher voltage available by two units in series connection (IT-M7721, 7722, 7722E, 7723E).
  • Three phase output available by three units Y-type external connections (IT-M7721, 7722, 7722E, 7723E).

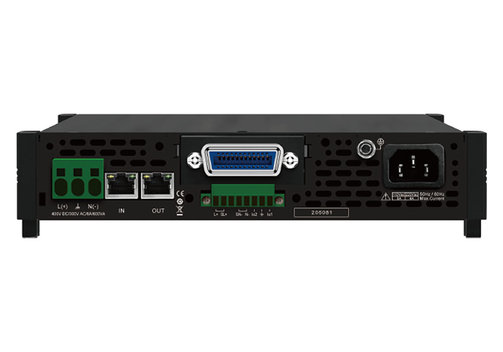

  • Optional interfaces include RS232, CAN, Ethernet/LAN, GPIB/IEEE488, USB_TMC, USB_VCP, external analog IO.
  • With professional software, set up programs comply with multinational security regulations and test conditions, to complete military, civil aviation electronics and IEC related standards testing.

Model Overview

ModelVoltageCurrentFrequencyPower AC/DC
IT-M7721300 V3 A45...1000 Hz300 VA/300 W
IT-M7722300 V6 A45...1000 Hz600 VA/600 W
IT-M7722E (EOL)300 V7.5 A45...1000 Hz750 VA/750 W
IT-M7723300 V/600 V12 A/6 A45...1000 Hz1200 VA/1200 W
IT-M7723E300 V15 A45...1000 Hz1500 VA/1500 W
IT-M7724 (EOL)300 V/600 V30 A/15 A45...1000 Hz3000 VA/3000 W
