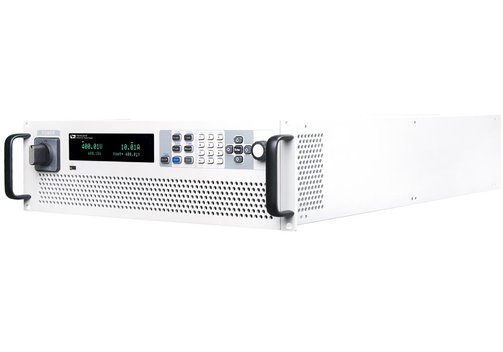

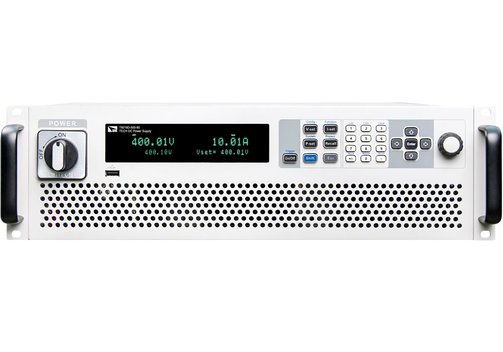

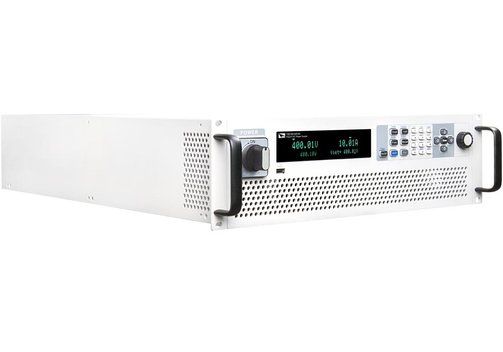

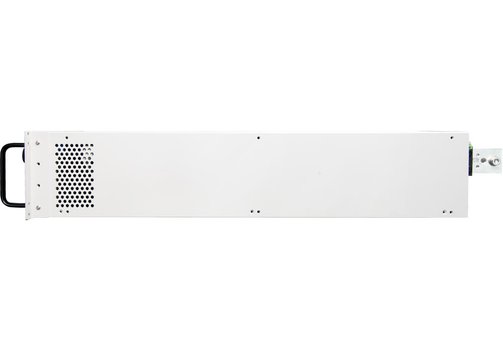

ITECH IT6000D Series High Power Programmable DC Power Supply
Benefits of the IT6000D Series DC Power Supplies up to 144 kW/2 MW
- Master-slave parallel, the power can be paralleled up to 2 MW
- Power efficiency up to approx. 95%.
- Supports external data recording function, internal buffing, SCPI commands.
ITECH IT6000D Series High Power Programmable DC Power Supply
The IT6000D single channel output programmable DC power supply is applicable in laboratories and automatic test system to provide high-power and stable DC supply. The autoranging output feature enables a wide range of flexible voltage and current combinations at full power. The IT6000D series has a wide range of applications and the devices provide a power range of up to 5 kW to 144 kW, current up to 8000 A, as well as voltage up to 2250 V. Besides, IT6000D provides multi built-in communication interfaces to simplify and accelerate the testing development. The compact 3U design saves rack space. Multiple units of the same model can be paralleled easily for higher power up to a maximum of 2 MW.
- Master-slave parallel, power can be paralleled up to 2 MW.
- Current up to 8000 A by paralleling.
- The adoption of high frequency switching structure supports the automatic switching between CV and CC (constant current/constant voltage).
- Provides various protections: OVP, OCP, OPP, OTP, protection of power failure and UVP.
- Supports data recording function, can continuously record the Max, Min, Average values of output voltage and current, and it can automatically execute data by sequence.
- Support solar panel I-V curves simulation.
- Power efficiency up to 92%.
- High power density of 18 kW in 3U.
- Supports external data recording function, internal buffing, and the PC will periodically read data from the power supply, the shortest interval of sampling is 10 µs.

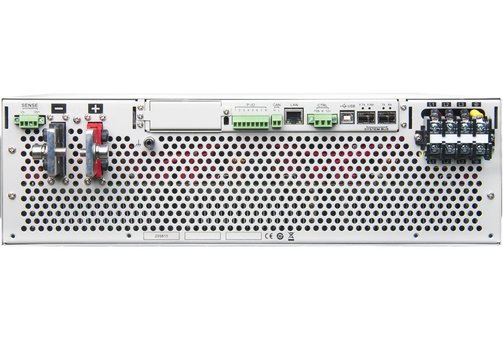

- Built-in communication interfaces USB, CAN, Ethernet/LAN, digital-I/O, optional GPIB, analog, and RS232.
- Supports SCPI; built-in web server.
Model Overview
Due to the large number of variants, please send us an inquiry for the desired version!
| Model | Voltage | Current | Power | Resolving | Accuracy | Interface | Dimensions |
| IT6005D-80-150 | 80 V | 150 A | 5 kW | 0.001 V/0.01 A | ≤0.02% + 0.02% F.S./ ≤0.1% + 0.1% F.S. | USB, CAN, LAN/Ethernet, digital-I/O port, optional GPIB, analog, RS232 | 3U |
| IT6054D-300-675 | 300 V | 675 A | 54 kW | 0.01 V/0.1 A | 15U | ||
| IT6036D-300-450 | 300 V | 450 A | 36 kW | 0.01 V/0.01 A | 6U | ||
| IT6018D-300-225 | 300 V | 225 A | 18 kW | 0.01 V/0.01 A | 3U | ||
| IT6012D-300-150 | 300 V | 150 A | 12 kW | 0.01 V/0.01 A | 3U | ||
| IT6006D-300-75 | 300 V | 75 A | 6 kW | 0.01 V/0.01 A | 3U | ||
| IT6120D-80-2040 | 80 V | 2040 A | 120 kW | 0.001 V/0.1 A | 27U | ||
| IT6105D-80-2040 | 80 V | 2040 A | 105 kW | 0.001 V/0.1 A | 27U | ||
| IT6090D-80-2040 | 80 V | 2040 A | 90 kW | 0.001 V/0.1 A | 27U | ||
| IT6075D-80-2040 | 80 V | 2040 A | 75 kW | 0.001 V/0.1 A | 27U | ||
| IT6060D-80-1800 | 80 V | 1800 A | 60 kW | 0.001 V/0.1 A | 15U | ||
| IT6045D-80-1350 | 80 V | 1350 A | 45 kW | 0.001 V/0.1 A | 15U | ||
| IT6030D-80-900 | 80 V | 900 A | 30 kW | 0.001 V/0.1 A | 6U | ||
| IT6015D-80-450 | 80 V | 450 A | 15 kW | 0.001 V/0.01 A | 3U | ||
| IT6010D-80-300 | 80 V | 300 A | 10 kW | 0.001 V/0.01 A | 3U | ||
| IT6108D-500-720 | 500 V | 720 A | 108 kW | 0.01 V/0.1 A | 27U | ||
| IT6090D-500-600 | 500 V | 600 A | 90 kW | 0.01 V/0.1 A | 27U | ||
| IT6072D-500-480 | 500 V | 480 A | 72 kW | 0.01 V/0.01 A | 15U | ||
| IT6054D-500-360 | 500 V | 360 A | 54 kW | 0.01 V/0.01 A | 15U | ||
| IT6036D-500-240 | 500 V | 240 A | 36 kW | 0.01 V/0.01 A | 6U | ||
| IT6018D-500-120 | 500 V | 120 A | 18 kW | 0.01 V/0.01 A | 3U | ||
| IT6012D-500-80 | 500 V | 80 A | 12 kW | 0.01 V/0.01 A | 3U | ||
| IT6006D-500-40 | 500 V | 40 A | 6 kW | 0.01 V/0.001 A | 3U | ||
| IT6144D-300-1800 | 300 V | 1800 A | 144 kW | 0.01 V/0.1 A | 27U | ||
| IT6126D-300-1575 | 300 V | 1575 A | 126 kW | 0.01 V/0.1 A | 27U | ||
| IT6108D-300-1350 | 300 V | 1350 A | 108 kW | 0.01 V/0.1 A | 27U | ||
| IT6090D-300-1125 | 300 V | 1125 A | 90 kW | 0.01 V/0.1 A | 27U | ||
| IT6072D-300-900 | 300 V | 900 A | 72 kW | 0.01 V/0.1 A | 15U | ||
| IT6144D-500-960 | 500 V | 960 A | 144 kW | 0.01 V/0.1 A | 27U | ||
| IT6126D-500-840 | 500 V | 840 A | 126 kW | 0.01 V/0.1 A | 27U | ||
| IT6090D-1500-200 | 1500 V | 200 A | 90 kW | 0.1 V/0.01 A | 27U | ||
| IT6072D-1500-160 | 1500 V | 160 A | 72 kW | 0.1 V/0.01 A | 15U | ||
| IT6054D-1500-120 | 1500 V | 120 A | 54 kW | 0.1 V/0.01 A | 15U | ||
| IT6036D-1500-80 | 1500 V | 80 A | 36 kW | 0.1 V/0.01 A | 6U | ||
| IT6018D-1500-40 | 1500 V | 40 A | 18 kW | 0.1 V/0.001 A | 3U | ||
| IT6144D-800-600 | 800 V | 600 A | 144 kW | 0.01 V/0.1 A | 27U | ||
| IT6126D-800-525 | 800 V | 525 A | 126 kW | 0.01 V/0.1 A | 27U | ||
| IT6108D-800-450 | 800 V | 450 A | 108 kW | 0.01 V/0.01 A | 27U | ||
| IT6090D-800-375 | 800 V | 375 A | 90 kW | 0.01 V/0.01 A | 27U | ||
| IT6072D-800-300 | 800 V | 300 A | 72 kW | 0.01 V/0.01 A | 15U | ||
| IT6054D-800-225 | 800 V | 225 A | 54 kW | 0.01 V/0.01 A | 15U | ||
| IT6036D-800-150 | 800 V | 150 A | 36 kW | 0.01 V/0.01 A | 6U | ||
| IT6018D-800-75 | 800 V | 75 A | 18 kW | 0.01 V/0.01 A | 3U | ||
| IT6012D-800-50 | 800 V | 50 A | 12 kW | 0.01 V/0.01 A | 3U | ||
| IT6006D-800-25 | 800 V | 25 A | 6 kW | 0.01 V/0.001 A | 3U | ||
| IT6144D-2250-200 | 2250 V | 200 A | 144 kW | 0.1 V/0.01 A | 27U | ||
| IT6126D-2250-175 | 2250 V | 175 A | 126 kW | 0.1 V/0.01 A | 27U | ||
| IT6108D-2250-150 | 2250 V | 150 A | 108 kW | 0.1 V/0.01 A | 27U | ||
| IT6090D-2250-125 | 2250 V | 125 A | 90 kW | 0.1 V/0.01 A | 27U | ||
| IT6072D-2250-100 | 2250 V | 100 A | 72 kW | 0.1 V/0.01 A | 15U | ||
| IT6054D-2250-75 | 2250 V | 75 A | 54 kW | 0.1 V/0.01 A | 15U | ||
| IT6036D-2250-50 | 2250 V | 50 A | 36 kW | 0.1 V/0.01 A | 6U | ||
| IT6018D-2250-25 | 2250 V | 25 A | 18 kW | 0.1 V/0.001 A | 3U | ||
| IT6144D-1500-320 | 1500 V | 320 A | 144 kW | 0.1 V/0.01 A | 27U | ||
| IT6126D-1500-280 | 1500 V | 280 A | 126 kW | 0.1 V/0.01 A | 27U | ||
| IT6108D-1500-240 | 1500 V | 240 A | 108 kW | 0.1 V/0.01 A | 27U |
