Description
Files/Downloads

Benefits of the IT6600C SeriesDC Power Supplies and E-Loads

  • Bidirectional power supply and e-load in one.
  • Up to 42 kW of DC power in 3U.
  • Dual-channel design, channels can be connected in series or parallel for max. 10 MW.

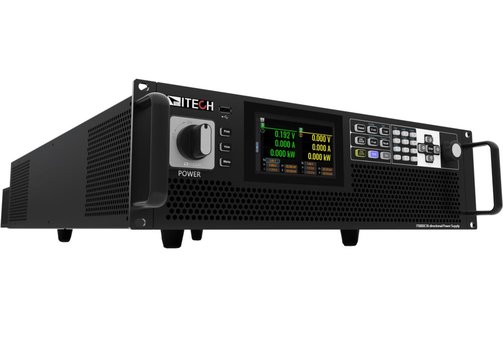

ITECH IT6600C Bidirectional Programmable DC Power Supply

The IT6600C is a series of bidirectional DC power supplies based on advanced third-generation SiC technology. The devices have a touch screen and intuitive GUI and are an ideal solution for complex high-power testing in the fields of automobiles, energy storage, industry, green energy, for R&D, verification, production, etc. A 3U height single unit can output 21 kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach a maximum power of 42 kW. The IT6600C series devices are not only power supplies, but also excellent electronic loads. They can not only output power as a DC power supply, but also act as a DC electronic load, absorbing power and feeding clean power back to the grid to realize energy recycling.

  • Bidirectional, integrating power supply and e-load in one.
  • High power density, up to 42 kW in 3U.
  • Independent dual-channel design in 3U unit, and channels can be connected in series or parallel.
  • High efficient power regeneration.

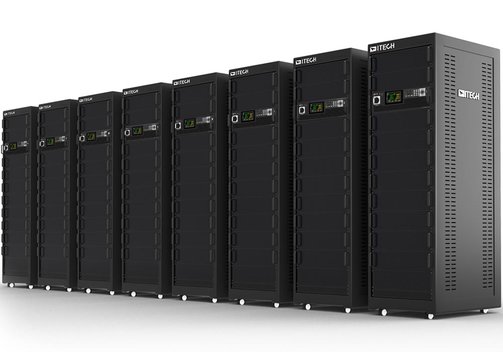

  • Master-slave current equalizing, output max. 10 MW in parallel, no performance lost.

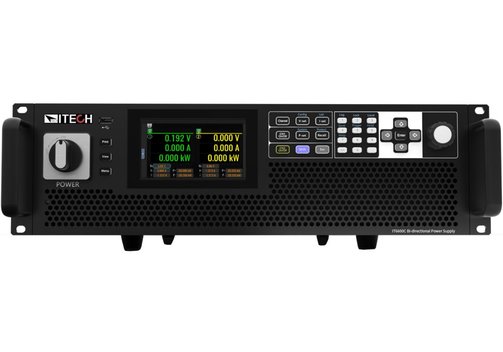

  • 5"/12.7 cm touch screen with intuitive GUI.
  • Dynamic response ≤200 µs.
  • Rise time ≤1 ms.
  • High precision ≤0.03% +30 mA.

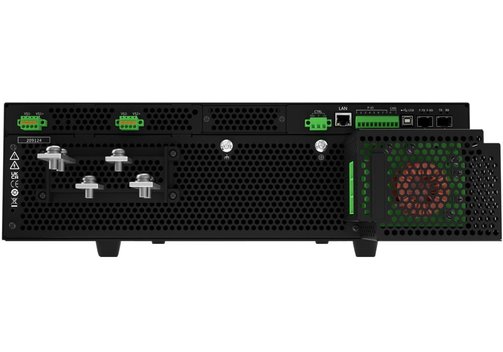

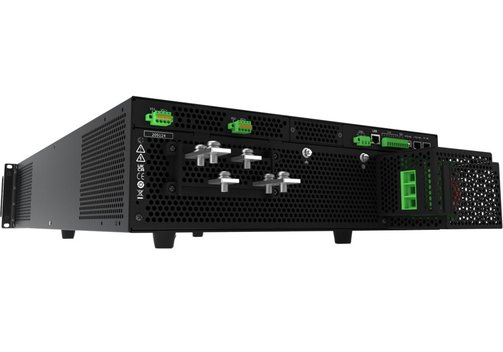

  • Built-in communication interface:
    USB (USB-TMC/USB-VCP),
    LAN (Rawsocket/Modbus-TCP/Profinet/VNC/VXI-11/Web/Telnet),
    CAN 2.0B (CANopen/CAN2.0),
    digital-I/O,
    optional: GPIB, EtherCAT, analog, and RS232.
  • CC/CV priority.
  • Can be used as a battery simulator (with optional BSS2000 battery simulation software).
  • Battery test function, supports battery charge/discharge mode.
  • Accurately simulate the IV characteristic output of Si, GaAs and other solar panels.
  • Built-in standard multi-channel solar array simulation software.
  • Fuel cell simulation (with optional FCS3000 fuel cell simulation software).
  • List function, dynamic working condition simulation with tens of millions of points.
  • Built-in IEC 61000-4-17/IEC 61000-4-29 waveforms.
  • Built-in 9 standard automotive voltage curves, including LV123, LV148, ISO21498-2, etc.
  • Output impedance is adjustable.
  • Redundancy function, helps to check the status of each single unit or cabinet and ensure the overall output.

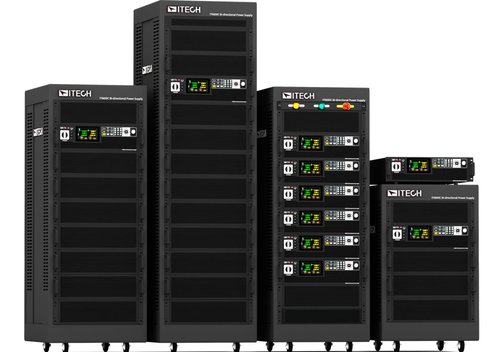

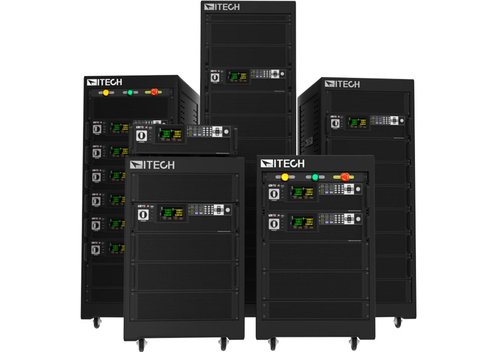

Model Overview

ModelMax. output voltageMax. output currentMax. output powerSpecificationHeight
IT6642C-1200-2001200 V±200 A±42 kW600 V/±100 A/±21 kW x 2 channels600 V/±200 A/±42 kW x 1 channel1200 V/±100 A/±42 kW x 1 channel3U
IT6684C-1200-400±400 A±84 kW600 V/±200 A/±42 kW x 2 channels600 V/±400 A/±84 kW x 1 channel1200 V/±200 A/±84 kW x 1 channel15U
IT66126C-1200-600±600 A±126 kW600 V/±300 A/±63 kW x 2 channels600 V/±600 A/±126 kW x 1 channel1200 V/±300 A/±126 kW x 1 channel15U
IT66168C-1200-800±800 A±168 kW600 V/±400 A/±84 kW x 2 channels600 V/±800 A/±168 kW x 1 channel1200 V/±400 A/±168 kW x 1 channel27U
IT66210C-1200-1000±1000 A±210 kW600 V/±500 A/±105 kW x 2 channels600 V/±1000 A/±210 kW x 1 channel1200 V/±500 A/±210 kW x 1 channel27U
IT66252C-1200-1200±1200 A±252 kW600 V/±600 A/±126 kW x 2 channels600 V/±1200 A/±252 kW x 1 channel1200 V/±600 A/±252 kW x 1 channel27U
IT66294C-1200-1400±1400 A±294 kW600 V/±700 A/±147 kW x 2 channels600 V/±1400 A/±294 kW x 1 channel1200 V/±700 A/±294 kW x 1 channel27U
IT66336C-1200-1600±1600 A±336 kW600 V/±800 A/±168 kW x 2 channels600 V/±1600 A/±336 kW x 1 channel1200 V/±800 A/±336 kW x 1 channel37U
IT66378C-1200-1800±1800 A±378 kW600 V/±900 A/±189 kW x 2 channels600 V/±1800 A/±378 kW x 1 channel1200 V/±900 A/±378 kW x 1 channel37U
IT66420C-1200-2000±2000 A±420 kW600 V/±1000 A/±210 kW x 2 channels600 V/±2000 A/±420 kW x 1 channel1200 V/±1000 A/±420 kW x 1 channel37U
IT6642C-1600-1201600 V±120 A±42 kW600 V/±60 A/±21 kW x 2 channels600 V/±120 A/±42 kW x 1 channel1200 V/±60 A/±42 kW x 1 channel3U
IT6684C-1600-240±240 A±84 kW600 V/±120 A/±42 kW x 2 channels600 V/±240 A/±84 kW x 1 channel1200 V/±120 A/±84 kW x 1 channel15U
IT66126C-1600-360±360 A±126 kW600 V/±180 A/±63 kW x 2 channels600 V/±360 A/±126 kW x 1 channel1200 V/±180 A/±126 kW x 1 channel15U
IT66168C-1600-480±480 A±168 kW600 V/±240 A/±84 kW x 2 channels600 V/±480 A/±168 kW x 1 channel1200 V/±240 A/±168 kW x 1 channel27U
IT66210C-1600-600±600 A±210 kW600 V/±300 A/±105 kW x 2 channels600 V/±600 A/±210 kW x 1 channel1200 V/±300 A/±210 kW x 1 channel27U
IT66252C-1600-720±720 A±252 kW600 V/±360 A/±126 kW x 2 channels600 V/±720 A/±252 kW x 1 channel1200 V/±360 A/±252 kW x 1 channel27U
IT66294C-1600-840±840 A±294 kW600 V/±420 A/±147 kW x 2 channels600 V/±840 A/±294 kW x 1 channel1200 V/±420 A/±294 kW x 1 channel27U
IT66336C-1600-960±960 A±336 kW600 V/±480 A/±168 kW x 2 channels600 V/±960 A/±336 kW x 1 channel1200 V/±480 A/±336 kW x 1 channel37U
IT66378C-1600-1080±1080 A±378 kW600 V/±570 A/±189 kW x 2 channels600 V/±1080 A/±378 kW x 1 channel1200 V/±540 A/±378 kW x 1 channel37U
IT66420C-1600-1200±1200 A±420 kW600 V/±600 A/±210 kW x 2 channels600 V/±1200 A/±420 kW x 1 channel1200 V/±600 A/±420 kW x 1 channel37U
IT6642C-2250-1002250 V±100 A±42 kW600 V/±50 A/±21 kW x 2 channels600 V/±100 A/±42 kW x 1 channel1200 V/±50 A/±42 kW x 1 channel3U
IT6684C-2250-200±200 A±84 kW600 V/±100 A/±42 kW x 2 channels600 V/±200 A/±84 kW x 1 channel1200 V/±100 A/±84 kW x 1 channel15U
IT66126C-2250-300±300 A±126 kW600 V/±150 A/±63 kW x 2 channels600 V/±300 A/±126 kW x 1 channel1200 V/±150 A/±126 kW x 1 channel15U
IT66168C-2250-400±400 A±168 kW600 V/±200 A/±84 kW x 2 channels600 V/±400 A/±168 kW x 1 channel1200 V/±200 A/±168 kW x 1 channel27U
IT66210C-2250-500±500 A±210 kW600 V/±250 A/±105 kW x 2 channels600 V/±500 A/±210 kW x 1 channel1200 V/±250 A/±210 kW x 1 channel27U
IT66252C-2250-600±600 A±252 kW600 V/±300 A/±126 kW x 2 channels600 V/±600 A/±252 kW x 1 channel1200 V/±300 A/±252 kW x 1 channel27U
IT66294C-2250-700±700 A±294 kW600 V/±350 A/±147 kW x 2 channels600 V/±700 A/±294 kW x 1 channel1200 V/±350 A/±294 kW x 1 channel27U
IT66336C-2250-800±800 A±336 kW600 V/±400 A/±168 kW x 2 channels600 V/±800 A/±336 kW x 1 channel1200 V/±400 A/±336 kW x 1 channel37U
IT66378C-2250-900±900 A±378 kW600 V/±450 A/±189 kW x 2 channels600 V/±900 A/±378 kW x 1 channel1200 V/±450 A/±378 kW x 1 channel37U
IT66420C-2250-1000±1000 A±420 kW600 V/±500 A/±210 kW x 2 channels600 V/±1000 A/±420 kW x 1 channel1200 V/±500 A/±420 kW x 1 channel37U

Options and Accessories

CategoryModelDescription
For parallel connectionIT-E511-15U15U unit, black, 800x550x908 (mm)
IT-E511-27U27U unit, black, 800x600x1441 (mm)
IT-E511-37U37U unit, black, 800x600x1886 (mm)
IT-E168Optical fiber kit for parallel connection, for parallel communication between single units
IT-E169Optical fiber kit for parallel connection, for parallel communication between cabinets
Other accessoriesIT-E258E5 m power cord for 3U unit, EU standard, AC input
IT-E258E-15U5 m power cord for 15U unit, EU standard, AC input
IT-E258E-27U5 m power cord for 27U unit, EU standard, AC input
IT-E258E-37U5 m power cord for 37U unit, EU standard, AC input
IT-E1601-blacksupport EtherCAT
IT-E176GPIB
IT-E177RS232 and analog
IT-E179Relay board
IT-E183Series and parallel boxes, cabinet configuration, direct switching between series and parallel
SoftwareFCS3000Fuel cell simulation software
BSS2000Battery simulation software, basic version-single channel
BSS2000 ProBattery simulation software, premium version-single channel
BSS2000MBattery simulation software, multi-channel version

Information on product safety:

Manufacturer:
ITECH, No.918, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586/TWN
www.itechate.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
info@meilhaus.com

Datasheet_ITECH_IT6600C_en.pdf
