ITECH IT6600D High Power Programmable DC Power Supply

New
ITECH IT6600D high power programmable DC power supply
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~10-25 workdays
Item available at short notice. Delivery Time ~10-25 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Benfits of the IT6600D Series Bidirectional DC Power Supplies with Touch Screen

  • Up to 42 kW of DC power in 3U.
  • Dual-channel design, channels can be connected in series or parallel for max. 10 MW.
  • Touch screen and vaiety of interface options.

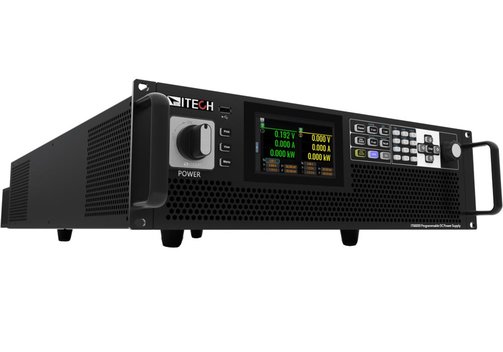

The ITECH IT6600D is a series of bidirectional DC power supplies with touch screen and intuitive GUI. They are based on third-generation SiC technology. A 3U height single unit can output 21 kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach a maximum power of 42 kW. One unit of the IT6600 series can cover the output range of 3 to 5 "normal" power supplies, so they can be applied to various applications requiring high voltage or high current. IT6600D's CC/CV priority allows the output mode to be selected based on the specific needs of the DUT, which is especially important during precision measurements. High-precision, high-speed features and a variety of standard communication interfaces enable IT6600D to be widely used in laboratories, production lines and automatic test systems.

  • High power density, up to 42 kW in 3U.
  • Independent dual-channel design in 3U unit, and channels can be connected in series or parallel.
  • Master-slave current sharing, output max. 10 MW in parallel, no performance lost.

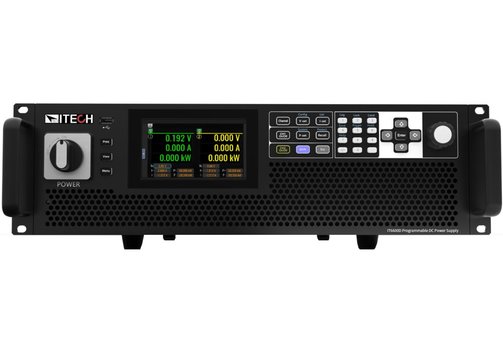

  • 5"/12.7 cm touch screen with intuitive GUI.
  • Data recorder function.
  • Oscilloscope function, instant data analysis and saving.
  • CC/CV priority.
  • List function, dynamic working condition simulation with tens of millions of points.
  • Redundancy function, helps to check the status of each single unit or cabinet and ensure the overall output.
  • Built-in communication interface:
    USB (USB-TMC/USB-VCP),
    LAN (Rawsocket/Modbus-TCP/Profinet/VNC/VXI-11/Web/Telnet),
    CAN 2.0B (CANopen/CAN2.0),
    digital-I/O,
    optional: GPIB, EtherCAT, Analog, and RS232.
  • Free PC software.

Model Overview

ModelMax. output voltageMax. output currentMax. output powerSpecificationHeight
IT6642D-1200-2001200 V200 A42 kW600 V/100 A/21 kW x 2 channels600 V/200 A/42 kW x 1 channel1200 V/100 A/42 kW x 1 channel3U
IT6684D-1200-4001200 V400 A84 kW600 V/200 A/42 kW x 2 channels600 V/400 A/84 kW x 1 channel1200 V/200 A/84 kW x 1 channel15U
IT66126D-1200-6001200 V600 A126 kW600 V/300 A/63 kW x 2 channels600 V/600 A/126 kW x 1 channel1200 V/300 A/126 kW x 1 channel15U
IT66168D-1200-8001200 V800 A168 kW600 V/400 A/84 kW x 2 channels600 V/800 A/168 kW x 1 channel1200 V/400 A/168 kW x 1 channel27U
IT66210D-1200-10001200 V1000 A210 kW600 V/500 A/105 kW x 2 channels600 V/1000 A/210 kW x 1 channel1200 V/500 A/210 kW x 1 channel27U
IT66252D-1200-12001200 V1200 A252 kW600 V/600 A/126 kW x 2 channels600 V/1200 A/252 kW x 1 channel1200 V/600 A/252 kW x 1 channel27U
IT66294D-1200-14001200 V1400 A294 kW600 V/700 A/147 kW x 2 channels600 V/1400 A/294 kW x 1 channel1200 V/700 A/294 kW x 1 channel27U
IT66336D-1200-16001200 V1600 A336 kW600 V/800 A/168 kW x 2 channels600 V/1600 A/336 kW x 1 channel1200 V/800 A/336 kW x 1 channel37U
IT66378D-1200-18001200 V1800 A378 kW600 V/900 A/189 kW x 2 channels600 V/1800 A/378 kW x 1 channel1200 V/900 A/378 kW x 1 channel37U
IT66420D-1200-20001200 V2000 A420 kW600 V/1000 A/210 kW x 2 channels600 V/2000 A/420 kW x 1 channel1200 V/1000 A/420 kW x 1 channel37U
IT6642D-2250-1001200 V100 A42 kW1200 V/50 A/21 kW x 2 channels1200 V/100 A/42 kW x 1 channel2250 V/50 A/42 kW x 1 channel3U
IT6684D-2250-2001200 V200 A84 kW1200 V/100 A/42 kW x 2 channels1200 V/200 A/84 kW x 1 channel2250 V/100 A/84 kW x 1 channel15U
IT66126D-2250-3001200 V300 A126 kW1200 V/150 A/63 kW x 2 channels1200 V/300 A/126 kW x 1 channel2250 V/150 A/126 kW x 1 channel15U
IT66168D-2250-4001200 V400 A168 kW1200 V/200 A/84 kW x 2 channels1200 V/400 A/168 kW x 1 channel2250 V/200 A/168 kW x 1 channel27U
IT66210D-2250-5001200 V500 A210 kW1200 V/250 A/105 kW x 2 channels1200 V/500 A/210 kW x 1 channel2250 V/250 A/210 kW x 1 channel27U
IT66252D-2250-6001200 V600 A252 kW1200 V/300 A/126 kW x 2 channels1200 V/600 A/252 kW x 1 channel2250 V/300 A/252 kW x 1 channel27U
IT66294D-2250-7001200 V700 A294 kW1200 V/350 A/147 kW x 2 channels1200 V/700 A/294 kW x 1 channel2250 V/350 A/294 kW x 1 channel27U
IT66336D-2250-8001200 V800 A336 kW1200 V/400 A/168 kW x 2 channels1200 V/800 A/336 kW x 1 channel2250 V/400 A/336 kW x 1 channel37U
IT66378D-2250-9001200 V900 A378 kW1200 V/450 A/189 kW x 2 channels1200 V/900 A/378 kW x 1 channel2250 V/450 A/378 kW x 1 channel37U
IT66420D-2250-10001200 V1000 A420 kW1200 V/500 A/210 kW x 2 channels1200 V/1000 A/420 kW x 1 channel2250 V/500 A/420 kW x 1 channel37U
IT6642D-1600-1201200 V120 A42 kW800 V/60 A/21 kW x 2 channels800 V/120 A/42 kW x 1 channel1600 V/60 A/42 kW x 1 channel3U
IT6684D-1600-2401200 V240 A84 kW800 V/120 A/42 kW x 2 channels800 V/240 A/84 kW x 1 channel1600 V/120 A/84 kW x 1 channel15U
IT66126D-1600-3601200 V360 A126 kW800 V/180 A/63 kW x 2 channels800 V/360 A/126 kW x 1 channel1600 V/180 A/126 kW x 1 channel15U
IT66168D-1600-4801200 V480 A168 kW800 V/240 A/84 kW x 2 channels800 V/480 A/168 kW x 1 channel1600 V/240 A/168 kW x 1 channel27U
IT66210D-1600-6001200 V600 A210 kW800 V/300 A/105 kW x 2 channels800 V/600 A/210 kW x 1 channel1600 V/300 A/210 kW x 1 channel27U
IT66252D-1600-7201200 V720 A252 kW800 V/360 A/126 kW x 2 channels800 V/720 A/252 kW x 1 channel1600 V/360 A/252 kW x 1 channel27U
IT66294D-1600-8401200 V840 A294 kW800 V/420 A/147 kW x 2 channels800 V/840 A/294 kW x 1 channel1600 V/420 A/294 kW x 1 channel27U
IT66336D-1600-9601200 V960 A336 kW800 V/480 A/168 kW x 2 channels800 V/960 A/336 kW x 1 channel1600 V/480 A/336 kW x 1 channel37U
IT66378D-1600-10801200 V1080 A378 kW800 V/540 A/189 kW x 2 channels800 V/1080 A/378 kW x 1 channel1600 V/540 A/378 kW x 1 channel37U
IT66420D-1600-12001200 V1200 A420 kW800 V/600 A/210 kW x 2 channels800 V/1200 A/420 kW x 1 channel1600 V/600 A/420 kW x 1 channel37U

Options and Accessories

CategoryModelDescription

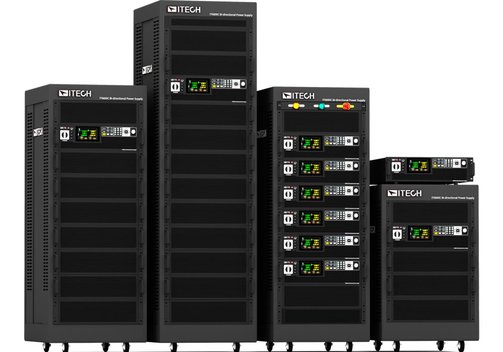

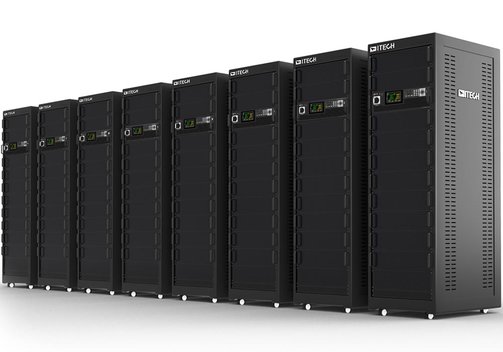

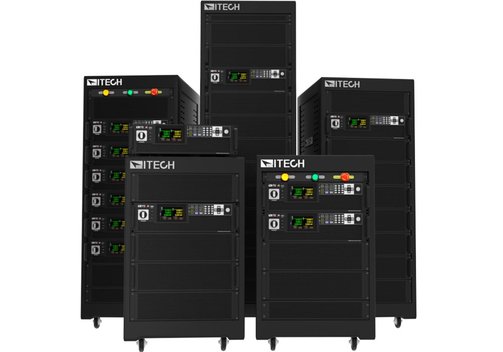

For parallel connectionIT-E4029-15U15U unit, black, 800x550x908 (mm)
IT-E4029-27U27U unit, black, 800x600x1363 (mm)
IT-E4029-37U37U unit, black, 800x600x1764 (mm)
IT-E168Optical fiber kit for parallel connection, for parallel communication between single units
IT-E169Optical fiber kit for parallel connection, for parallel communication between cabinets
Other accessoriesIT-E258E5 m power cord for 3U unit, EU standard, AC input
IT-E258E-15U5 m power cord for 15U unit, EU standard, AC input
IT-E258E-27U5 m power cord for 27U unit, EU standard, AC input
IT-E258E-37U5 m power cord for 37U unit, EU standard, AC input
IT-E1601-blacksupport EtherCAT
IT-E176GPIB
IT-E177RS232 and analog
IT-E179Relay board
IT-E183Series and parallel boxes, cabinet configuration, direct switching between series and parallel

Information on product safety:

Manufacturer:
ITECH, No.918, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586/TWN
www.itechate.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
info@meilhaus.com

Datasheet_ITECH_IT6600D_en.pdf
