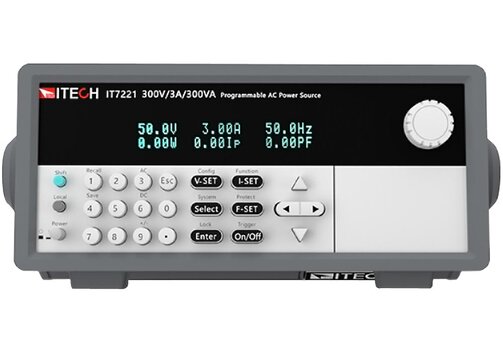

ITECH IT7220 Series Programmable AC/DC Power Supplies
Benefits of the IT7200/IT7220 AC/DC Power Supplies up to 300/600 VA
- Up to 300 or 600 VA in only ½-rack 2U size.
- 300 VAC L-N rated output, 45...500 Hz.
- Versatile functions such as power meter, waveforms, LIST etc.
ITECH IT7220 Series Programmable AC/DC Power Supplies
The ITECH IT7220 series programmable AC/DC power supplies are cost-effective test solutions for research and development, production, and laboratories. They feature a 2U half-rack form factor and can be used either as benchtop units or as rack-mount units. The IT7220 series units deliver a maximum power of 300 VA or 600 VA and feature powerful waveform editing and simulation capabilities, as well as comprehensive protection. Using features such as LIST, waveform adjustment, and harmonic simulation, various power disturbance waveforms can be simulated. These include, for example, voltage sags, momentary power outages, and the waveform specified in the IEC 61000-4-11 standard. The integrated USB and LAN interfaces enable easy ATE integration and remote data monitoring. The IT7220 series is ideal for applications such as testing small household appliances, industrial IoT, power modules, power tools, and more.
- AC/DC power supplies in 2U half-rack compact design, suitable for both bench top and ATE integration.
- Output modes AC, DC, AC+DC.
- 300 VAC L-N rated output, 45...500 Hz.
- Built-in AC power meter and up to 50th harmonic analysis capability.
- Built-in rich waveforms: sine, square, triangle, sawtooth, clip sine.
- Up to 50th order harmonic simulation function.
- Rich waveform editing functions: LIST, Surge&Trap, user-defined.
- Built-in rich waveform database, including 30 harmonic distortion waveforms.
- The start/stop phase angle of the output waveform can be set.
- Standard USB and LAN/Ethernet interface.
Model Overview
| Model | Voltage | Current | Power | Resolution | Accuracy | Interfaces | Size |
| IT7222 | 300 VAC L-N | 6 A | 600 VA | 100 mV/10 mA | U: ±(0.25% + 0.25% x F.S.); I: ±(0.25% + 0.25% x F.S.) | Standard USB, LAN/Ethernet | ½ 2U |
| IT7221 | 300 VAC L-N | 3 A | 300 VA | 100 mV/10 mA | U :±(0.25% + 0.25% x F.S.); I: ±(0.25% + 0.25% x F.S.) | Standard USB, LAN/Ethernet | ½ 2U |
