ITECH IT7800 High-Power Programmable AC/DC Power Supply

Benefits of the IT7800 Series 1- and 3-Phase Power Supplies

• Up to 15 kVA in 3-U size; up to 960 kVA.
• Touch-panel operation.
• Single phase, three-phase, reverse phase, and multi-channel.

ITECH IT7800 High-Power Programmable AC/DC Power Supply

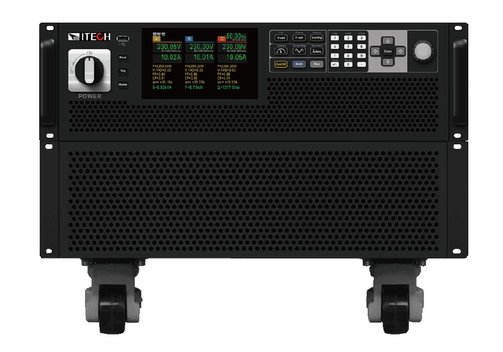

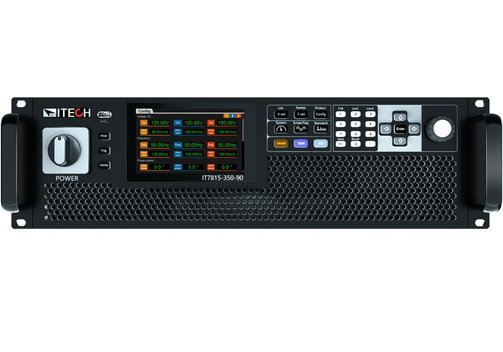

The ITECH IT7800 is a series of programmable AC/DC power supplies. In a 3U housing, they offer power up to 15 kVA, voltage ranges up to 350 V L-N and 500 V L-N. The output power can be increased up to 960k VA by configuring master-slave parallel. The devices have an intuitive LCD touch panel interface. The IT7800 series devices also have a built-in power meter and arbitrary waveform generator. The generator can simulate harmonics and other arbitrary waveform output. For models IT7806-350-90 and higher the users can choose single phase, three-phase, reverse phase, and multi-channel totally 4 output modes. With programmable outputs and complete measurements the ITECH IT7800 series is designed for new energy, power electronics, research institutes etc.

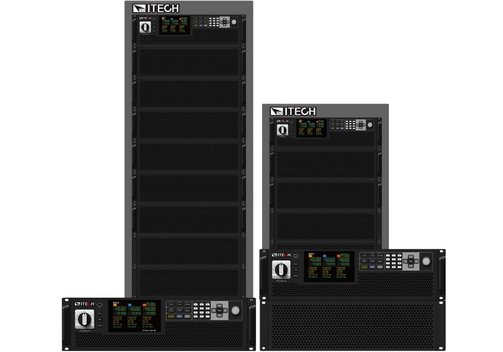

• Up to 15 kVA in 3U size; master-slave parallel with current sharing technology, up to 960 kVA - multiple units in parallel work as one.
• Voltage up to 350 V L-N, 500 V on request.
• Output frequency 16...2400 Hz, programmable slew rate setting for changing voltage and frequency.
• Built-in single/three-phase AC power meter.
• Multi-channel function, single unit can connect/test up to 3 DUTs (not for 3 and 5 kVA models).
• 4 output modes: AC, DC, AC+DC, DC+AC.
• Choose single phase, three-phase, reverse phase output mode, to simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests for 3-phase models and etc. (3 and 5 kVA models only single-phase).
• Comprehensive harmonics measurement and analysis, up to 50th (voltage and current harmonic analysis, voltage harmonic simulation).
• Harmonics, inter-harmonics waveform synthesizer, according to IEC 61000-4-13.
• Programmable output impedance, according to IEC 61000-3-3 on request.
• Intuitive touch screen interface.
• Simulate arbitrary waveform output, csv-file import supported.
• Built-in various waveforms.
• List mode simulates the power supply reproduction function to realize the simulation function of instantaneous power interruption.
• Provides various trigger input/output signals. When amplitude/frequency change, trigger signals can be generated to synchronously capture the current waveform of DUTs.
• Output 0...360° start/stop phase angle can be set.
• Surge/Sag function.
• Relay CTRL function, to cut off the connection between instrument and DUT.
• Frequency lock and phase lock function, tracking the external signal frequency and phase, to achieve 6-phase and 12-phase power output.
• Built-in USB, CAN, Ethernet/LAN, digital-I/O interface, optional GPIB, analog, and RS232.
• Build-in IEC standard compliance testing waveforms for IEC 61000-4-11, -4-13, -4-14, 4-28.
