ITECH IT8700P+ Modular Multi-channel DC Electronic Loads
Description
Files/Downloads
Benefits of the IT8700P+ Series Programmable Modular Loads
- Multi-channel modular 2- or 4-slot DC electronic load.
- Dual-channel modules can display each channel information simultaneously without switching.
- Measurement resolution 0.1 mV/0.1 mA.

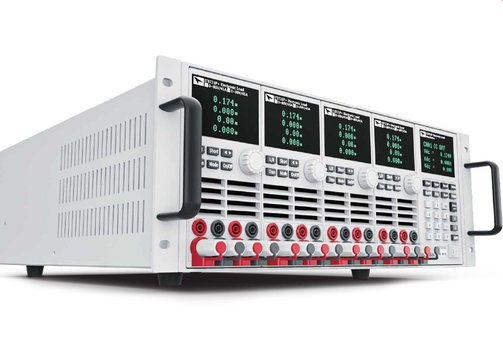

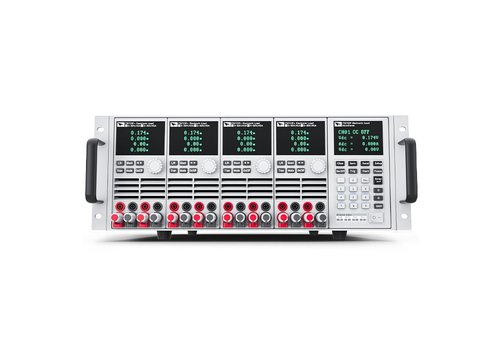

ITECH IT8700P+ Modular Multi-channel DC Electronic Loads

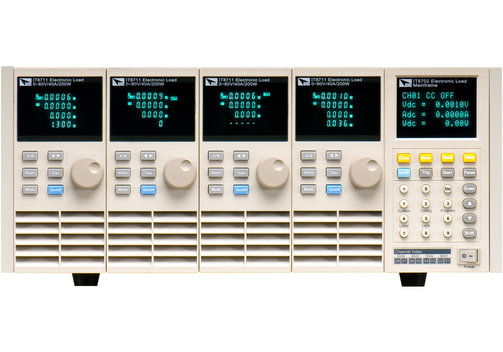

The ITECH IT8700P+ series are modular, programmable, electronic DC loads. A single main frame with 2 or 4 module slots can control up to 8 channels, or 16 channels with an additional main frame extension. The system has a high resolution and accuracy, as well as a transient mode, which improves your test efficiency. It can be operated via the mainframe control panel, or controlled by software using the built-in USB, LAN/Ethernet, RS232, or GPIB/IEEE488 (option "G" on request) interface.
- Three-stage current range, higher accuracy and lower ripple.
- Supports master-slave parallel connection of 16-channel modules, flexibly extends power.
- Faster dynamic response, the current rising and falling slope of a single module can reach 12 A/µs.
- Stable operation down to zero volts, suitable for low-voltage capacitors, solar cells, fuel cells, and other low-voltage high current power supplies.
- Faster loop speed, precise control of current without overshoot.
- The voltage and current measurement speed is upgraded to 250 kHz, good for system integration.
- Comprehensive protection functions: OVP, OCP, OPP, OTP, sense protection.
- Compatible with IT8700P mainframe, old and new modules can be matched.
- Short-circuit peak current measurement function.

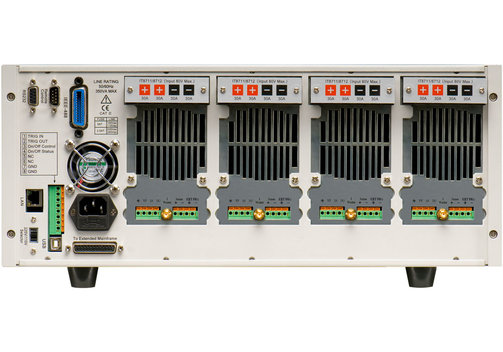

- Available front/rear terminals.
- 8 operating modes: CC, CV, CR, CW, CV+CC, CR+CC, CW+CC, CV+CR (CR-LED).
- Automatic test function to tell whether the test results exceed the set specifications.
- Built-in LAN/Ethernet, USB, RS232 interfaces (optional models "G": GPIB).
- CV loop speed is adjustable to match different DUTs.
- Multi channel synchronous control.
Model Overview and Previous Versions (Some Available On Request)
| Model | Voltage | Current | Power | Resolution | Accuracy | Size (all in mm) | |
| IT8700P+ High Speed Multi-channel DC Electronic Load | |||||||
| IT8701P | Main frame for two modules | ||||||
| IT8702P | Main frame for four modules | ||||||

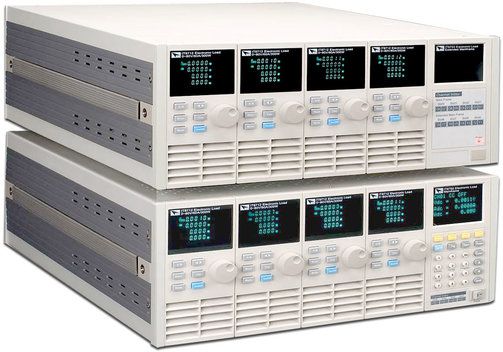

| IT8703P | Extended main frame (additional 4 slots/modules) | ||||||
| IT8721P+ | Load module | Channel 1/2: 150 V | Channel 1/2: 20 A | Channel 1/2: 150 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8722P+ | Load module | Channel 1/2: 150 V | Channel 1/2: 20 A | Channel 1/2: 250 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8722BP+ | Load module | Channel 1/2: 600 V | Channel 1/2: 15 A | Channel 1/2: 250 W | 0.1 mV/0.1 mA | ±(0.05%+0.025%FS)/±(0.05%+0.07%FS) | 82 x 183 x 573 |
| IT8723P+ | Load module | Channel 1/2: 150 V | Channel 1/2: 45 A | Channel 1/2: 300 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8731P+ | Load module | 150 V | 40 A | 200 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8732P+ | Load module | 150 V | 60 A | 400 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8732BP+ | Load module | 600 V | 20 A | 300 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.08%FS) | 82 x 183 x 573 |
| IT8733P+ | Load module | 150 V | 20 A | 600 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8733BP+ | Load module | 600 V | 30 A | 500 W | 0.1 mV/0.1 mA | ±(0.05%+0.025%FS)/±(0.05%+0.08%FS) | 82 x 183 x 573 |
| IT8700P Multi-channel Programmable DC Electronic Load | |||||||
| IT8722P | Load module | Channel 1: 80 V; channel 2: 80 V | Channel 1: 20 A; channel 2: 20 A | Channel 1: 250 W; channel 2: 250 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8722BP | Load module | Channel 1: 500 V; channel 2: 500 V | Channel 1: 15 A; channel 2: 15 A | Channel 1: 250 W; channel 2: 250 W | 1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8723P | Load module | Channel 1: 80 V; channel 2: 80 V | Channel 1: 45 A; channel 2: 45 A | Channel 1: 300 W; channel 2: 300 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8731P | Load module | 80 V | 40 A | 200 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8732P | Load module | 80 V | 60 A | 400 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8732BP | Load module | 500 V | 20 A | 300 W | 1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8733P | Load module | 80 V | 120 A | 600 W | 0.1 mV/1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.1%FS) | 82 x 171 x 596 |
| IT8733BP | Load module | 500 V | 30 A | 500 W | 1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 171 x 596 |
| IT8700 Multi-channel DC Electronic Load - "First Generation" | |||||||
| IT8701 | Main frame for two modules (EOL/discontinued) | ||||||
| IT8702 | Main frame for four modules (EOL/discontinued) | ||||||
| IT8703 | Extended main frame, additional 4 slots (EOL/discontinued) | ||||||
| IT8722 | Load module (EOL/discontinued) | Channel 1: 80 V; channel 2: 80 V | Channel 1: 20 A; channel 2: 20 A | Channel 1: 250 W; channel 2: 250 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8722B | Load module | Channel 1: 500 V; channel 2: 500 V | Channel 1: 15 A; channel 2: 15 A; | Channel 1: 250 W; channel 2: 250 W | 1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8723 | Load module (EOL/discontinued) | Channel 1: 80 V; channel 2: 80 V; | Channel 1: 45 A; channel 2: 45 A; | Channel 1: 300 W; channel 2: 300 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8731 | Load module (EOL/discontinued) | 80 V | 40 A | 200 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8732 | Load module (EOL/discontinued) | 80 V | 60 A | 400 W | 0.1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8732B | Load module | 500 V | 20 A | 300 W | 1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
| IT8733 | Load module (EOL/discontinued) | 80 V | 120 A | 600 W | 0.1 mV/1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.1%FS) | 82 x 183 x 573 |
| IT8733B | Load module | 500 V | 30 A | 500 W | 1 mV/0.1 mA | ±(0.025%+0.025%FS)/±(0.05%+0.05%FS) | 82 x 183 x 573 |
