ITECH IT8900G/L High Speed and High Power DC Electronic Loada

Benefits of the IT8900G/L DC Loads up to 54 kW

• Maximum power per unit 2 to 54 kW; parallel connection up to 600 kW.
• Voltage ranges 150 V, 600 V, 1200 V.
• Versatile operating modes and extensive functions.

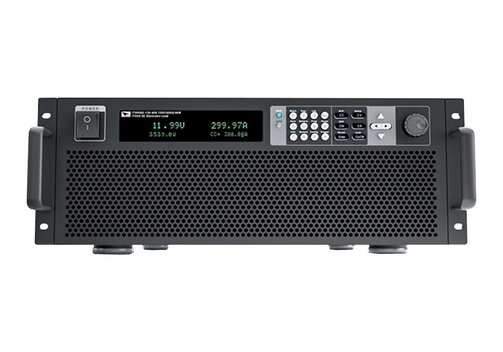

ITECH IT8900G/L High Speed and High Power DC Electronic Loads

The ITECH IT8900G/L series is a family of high-speed, high-power electronic DC loads featuring fast current rise and fall times and high voltage withstand capability. Models are available with three voltage ranges 150 V, 600 V, and 1200 V, with maximum power per unit ranging from 2 kW to 54 kW. The maximum power can be expanded to 600 kW via a master-slave parallel configuration. The power density is very high: even a unit with a height of just 4U can handle 6 kW. The IT8900G/L offers up to 4 or 8 operating modes, including dynamic mode, OCP and OPP tests, a self-test, and a battery test. The IT8900G/L series is suitable for testing EV batteries, A/D power supplies, server power supplies, DC charging stations, on-board chargers (OBCs), industrial motors, fuel cells, power electronics, and other power electronics products.

• Maximum power of single unit 2 to 54 kW.
  Master/slave parallel control, power expansion up to 600 kW.
• Voltage ranges 150 V, 600 V, 1200 V.
  Current ranges 4U module up to 600 A.
• Multiple operating modes CC, CV, CR, CP, CC+CV, CV+CR, CR+CC, CP+CC (models "L" only CC, CV, CR, CP).
• Fast current rise and fall and 30  kHz dynamic mode (150-V models "G" only 30 kHz).
• CV loop speed adjustable to match different power supplies.
• Low voltage and high current loading, internal resistance about 0.7 mΩ.
• 500 kHz high speed voltage and current sampling rate.
• Time measurement, battery discharge test.
• Short circuit simulation, automatic test function.
• Soft power on, soft power off to prevent voltage fluctuation during on/off.
• Timing control list programming, OCP/OPP test.
• I-monitor.
• Built-in USB, LAN/Ethernet, RS232, GPIB/IEEE488, CAN, external analog.
• Highly accurate voltage and current measurement.
• Support OVP, OCP,OPP, OTP, current oscillation protection, current limit, power limit, fan blocking protection, reverse alarm, etc.
• Power failure memory function, memory capacity of 100 groups.
• Independent control by master unit, easy to maintain and install.

Model Overview
