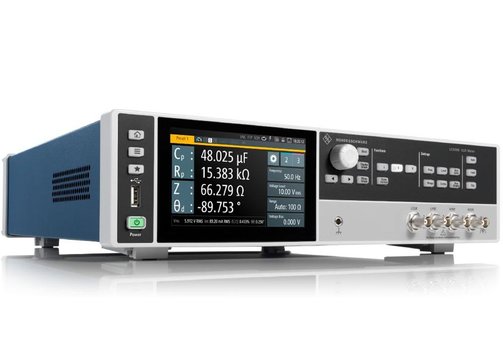

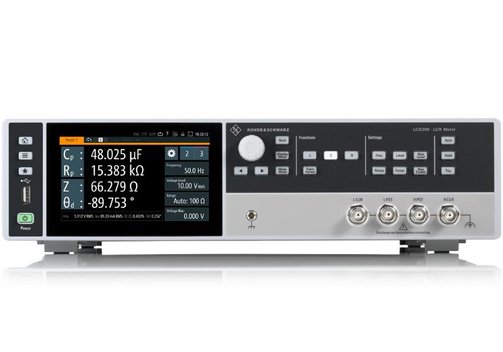

Rohde & Schwarz LCX100/LCX200 LCR Meter up to 10MHz
Benefits of the R&S LCX Series Measuring Instruments for Inductance L, Capacitance C, Resistance R
- Basic frequency range 4 Hz...300 kHz, upgradeable to 10 MHz.
- All important functions for component testing.
- Touch-screen, USB and Ethernet/LAN, optional GPIB.

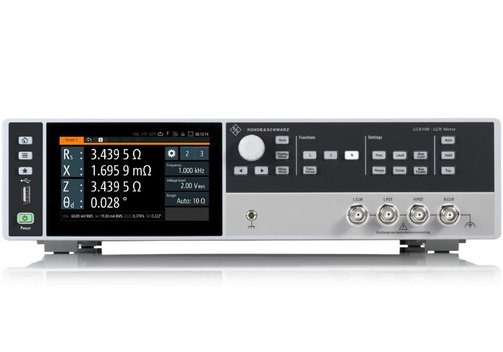

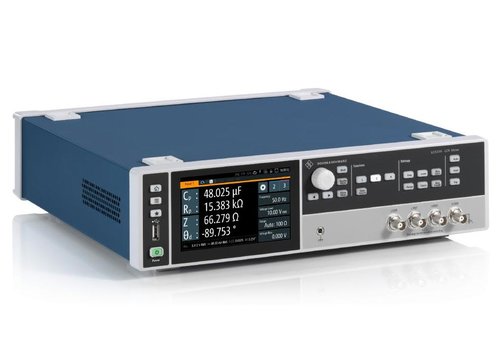

Rohde & Schwarz LCX100/LCX200 LCR Meters up to 10 MHz
The Rohde & Schwarz LCX100 and LCX200 LCR meters are versatile and measure extremely accurately and quickly. This makes them ideal for demanding applications in research, development, and production. The two device variants and various options/upgrade possibilities cover applications with measurement frequencies up to 300 kHz, 500 kHz, 1 MHz, or 10 MHz. In addition, the devices offer options such as internal and external bias functions, comprehensive analysis capabilities, and versatile test adaptors.
- LCR meters for measuring Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N.
- Frequency range 4 Hz to 300 kHz, 500 kHz, 1 MHz, or 10 MHz expandable.
- Basic accuracy of ±0.05% for impedance measurements.
Basic accuracy of ±0.03° for impedance measurements. - DC bias up to 40 V.
- Data recording (logging function to USB stick or interface).

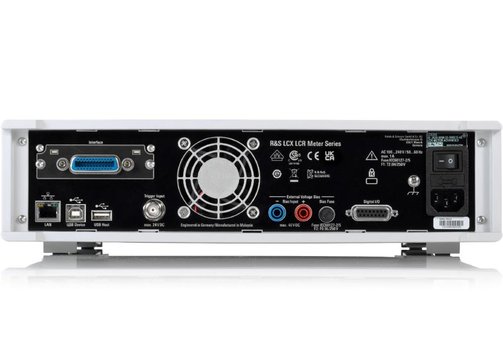

- Touchscreen, USB, LAN/Ethernet, and optional IEEE488/GPIB interfaces.
- Can upgraded as needed: frequency and function upgrades.
Model Overview
| Model | R&S LCX100 | R&S LCX200 |
| Basic product code | 3629.8856.02 | 3629.8856.03 |
| Measurement functions | Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N | |
| Frequency range | DC, 4 Hz...300 kHz | DC, 4 Hz...500 kHz DC, 4 Hz...1 MHz (with option LCX-K201), DC, 4 Hz...1 MHz at 10 Ω/10 MHz at 100 Ω (with option LCX-K210) |
| Test signal voltage (RMS) | 10 mV...10 V | ≤1 MHz: 10 mV...10 V, ≤5 MHz: 50 mV...2 V, >5 MHz: 100 mV...1 V |
| Test signal current | 1...200 mA | ≤1 MHz: 1...100 mA, >1 MHz bis ≥5 MHz: 1...20 mA, >5 MHz: 1...10 mA |
| Bias | Voltage internal 0...10 V, voltage external, input 0...40 V, current internal 0...200 mA | |
| Source impedance | 100 Ω, 10 Ω | |
| Measurement range | 10 mΩ...10 MΩ | |
| Basic accuracy | For impedance measurement 0.05%, for dissipation factor D: ±0.00053 (±0.0006), for phase measurements 0.03° | |
| Interfaces | USB-TMC, USB-CDC (virtual COM), LAN/Ethernet, optional IEEE488/GPIB | |
| Display | 5"/12.7 cm TFT display, 800x480 pixel, WVGA touch-screen | |
| Dimensions (mm) | 362 x 99 x 357; 2.7 kg | |
Package Overview
| Model | Description | |
| LCX100 | 3629.8856.02 | LCR meter basic device - measurement frequenby up to 300 kHz |
| LCX200 | 3629.8856.03 | LCR meter basic device - measurement frequenby up to 500 kHz, upgradeable to 1 MHz or 10 MHz, test signale up to 10 V/200 mA, bias: current internal, voltage internal/external, RDC and transformer measurements, USB/LAN interface |
| LCX200COM | 3629.8856P99 | Package with LCX200 LCR meter, LCX-K106 enhanced analysis option, LCX-K107 binning option, LCX-K108 enhanced bias option, LCX-K210 frequency upgrade to 10 MHz |
Included: LCR meter LCX 100 or 200, set of power cables, quick start guide.
Information on product safety:
Manufacturer:
Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 München/DEU
www.rohde-schwarz.com
