Gossen Metrawatt METRACLIP EARTH Erdungsmesszange

Benefits of METRACLIP EARTH - Measuring Ground Loop Resistance, Loop Inductance, Touch Voltage, Leakage Current

• Earth clamp meter - clamp generator and meter in a single device.
• Safe measurements of ground loop resistance, loop inductance, touch voltage and leakage current.
• Compact, minimal weight, handy: User friendly for one-hand operation.

Gossen Metrawatt METRACLIP EARTH Erdungsmesszange

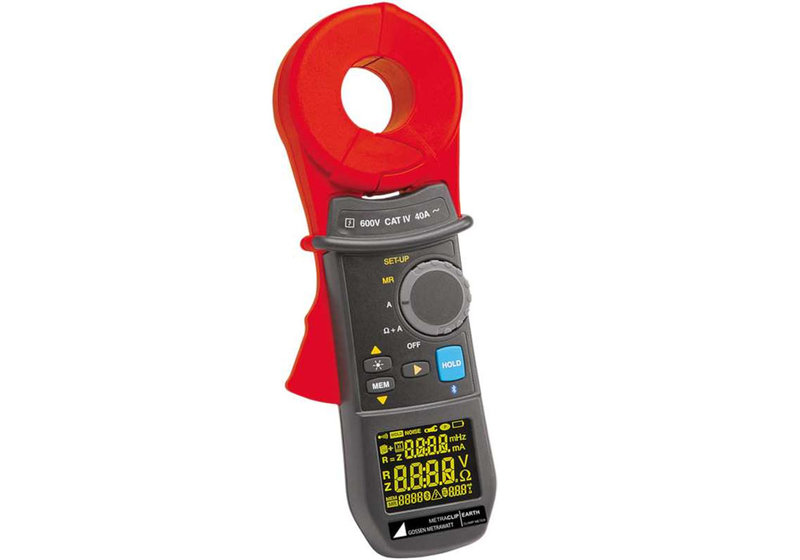

The earth clamp meter METRACLIP EARTH (M312N) is used to test the resistance of any conductive system which demonstrates loop characteristics. The following measurements are possible:

• Earth resistance measurement if grounding is connected in series to the equipotential bonding conductor.
• Other earth measurements, for example via overhead ground wires or interconnected transmission towers for power transmission or telecommunications.
• Measurements at distributed ground connections with a common ground plane.
• Measurement functions:
  • Ground loop resistance: 0,01...1500 Ω
  • Loop inductance: 10...500 µH.
  • Leakage current: 0,2 mA...40 AAC.
  • Touch voltage: 0,1...75 V.

More Features

• Compact and user-friendly - one-hand operation thanks to minimal weight and easy to open clamp with spring force compensation.

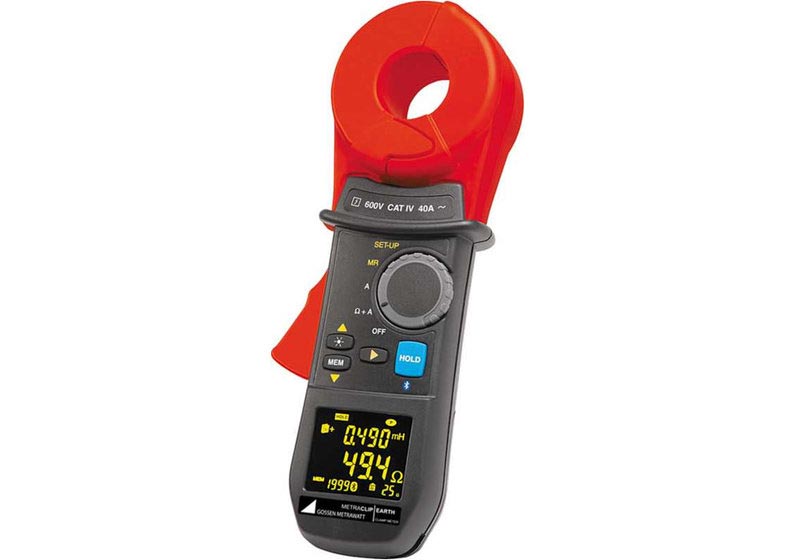

• Large OLED display: Up to 3 measured values can be read simultaneously.
• Clamp opening Ø 35 mm max.
• Minimal influence due to interference current.
• Measured value memory for resistance and leakage current, each with date and time.
• Extremely safe thanks to CAT IV 600 V.
