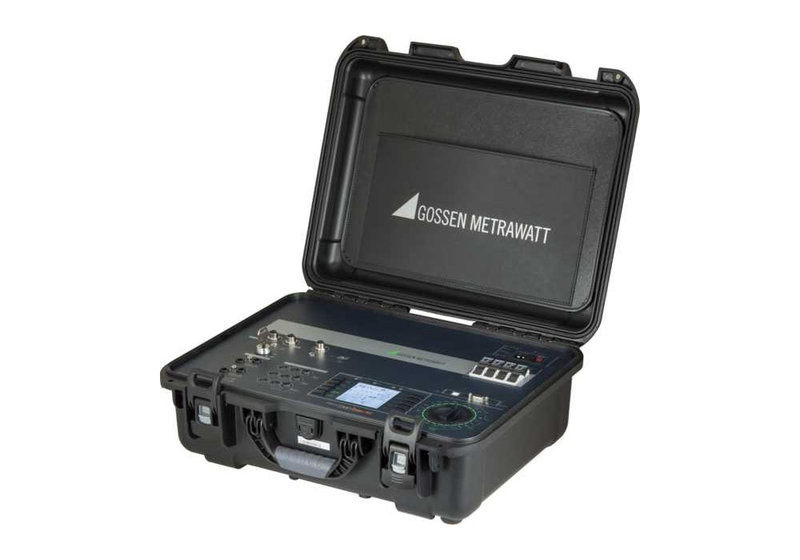

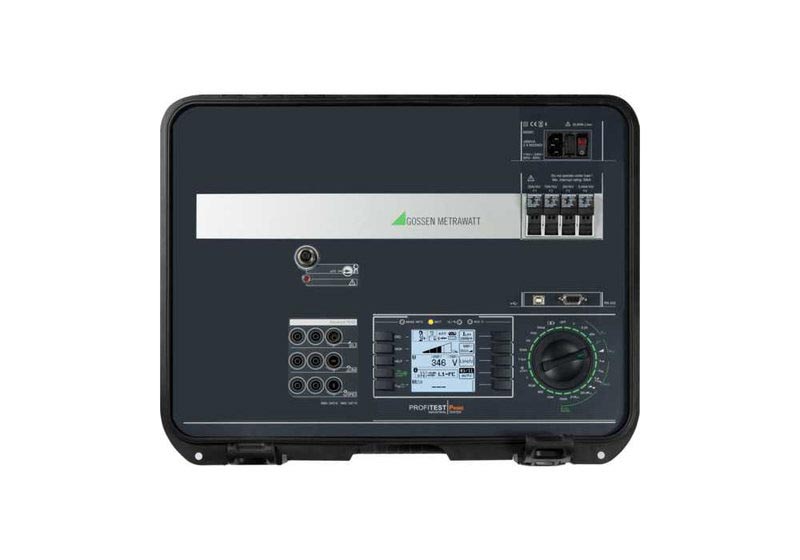

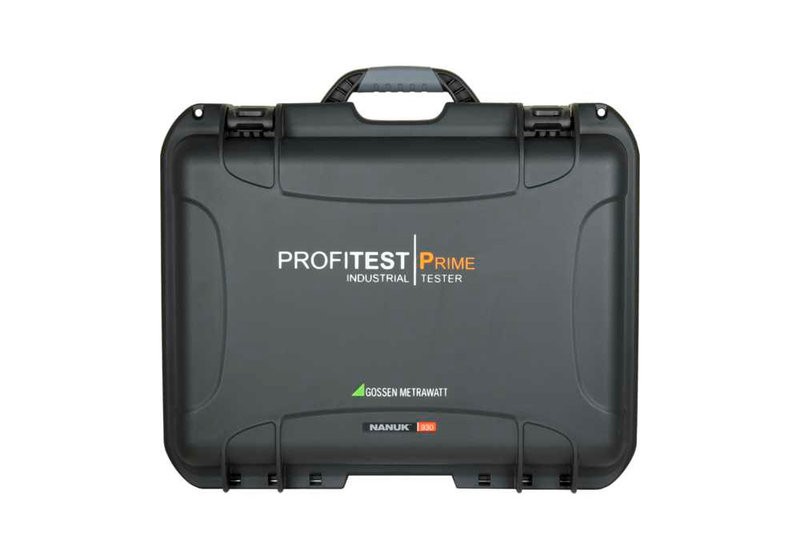

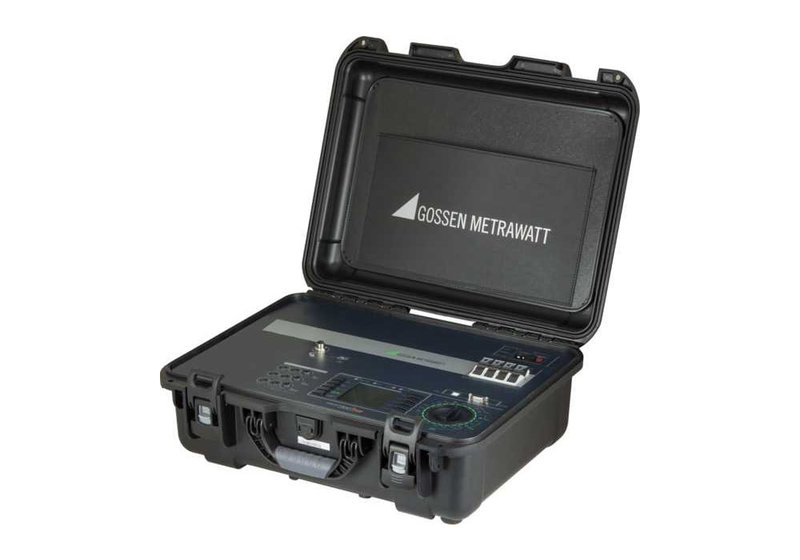

Gossen Metrawatt PROFITEST PRIME (M506) Testing Instrument Series

Benefits of the PROFITEST PRIME for Testing of Electric Safety Measures

• All-in-one test instrument for a wide field of applications. All measurements without unplugging/plugging leads.
• Pre-defined test sequences for well-structured testing.
• Report generation ensures consistent and lasting administration of customer data and measured values.

Gossen Metrawatt PROFITEST PRIME (M506) Testing Instrument Series

Testing of Electrical Machines, Equipment and Installations

Testing the effectiveness of safety measures in electrical systems is necessary in many applications and is required in accordance with legislation and regulations set forth by official authorities, operating companies and insurance companies. The PROFITEST PRIME (M506) is the first all-in-one test instrument for electrical equipment in AC and DC systems, machines switchgear and controlgear assemblies, industrial systems, wind power turbines, power generators and electric charging stations. Thanks to its broad-based range of applications and numerous test options, investment costs for the required test technology are significantly reduced.

• Measurement in AC/DC systems.
• Measurement of internal system resistance and fault loop resistance with high test current up to 690 VAC/800 VDC without tripping RCD types A and B.
• Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, automatic polarity reversal and 25 A.
• Testing of RCD types A, AC, F, B, B+, EV, MI and G/R, SRCDs and PRCDs.
• Combined RCD test with continuously rising ramp, time to trip, tripping current.
• Insulation measurement up to 1000 V with rising ramp.
• Testing of RCMs and IMDs.
• Measurement of leakage and differential current.
• Measurement of temperature and humidity.
• Testing for dielectric strength 2.5 kVAC, 500 VA with PROFITEST PRIME AC standard sequence, ramp function and pulse control mode.
• PROFITEST PRIME AC: work safety concept for inspector per DIN EN 50191 and EN 61557-14 with indicator lamp, emergency stop switch and key switch.
• Insulation measurement up to 5 kVDC with PROFITEST PRIME DC, PI/DAR, DD, frequency and capacitance measurement.
• Mains and battery operation (with limited functionality).
• Bluetooth and USB interfaces.
• Push-print function - transmission of measured value after measurement

Applications of the GMC-I/Gossen Metrawatt PROFITEST PRIME Series

• Machinery manufacturing.
• Switchgear fabrication.
• Industrial systems up to 690 V.
• Wind power turbines up to 690 V.
• E-mobility - charging infrastructure, AC/DC systems.
• IT networks up to 690 V.
• Insulation monitors up to 690 V.
• High voltage/insulation measurement up to 100 G&Omrga;.

Model Overview

1) Versions A, C, D, E, F until December 31., 2021, from January 1., 2022 replaced by versions G, H, K, L, M.
