Benefits of the PROFITEST EMOBILITY Adaptor for Standards-Compliant Testing of Charging Cables

  • Standards-compliant testing of single and 3-phase charging cables.
  • Testing of mode 2, mode 3 and TESLA charging cables.
  • Evaluation and documentation of the individual test steps.

Gossen Metrawatt PROFITEST EMOBILITY Test Adaptor

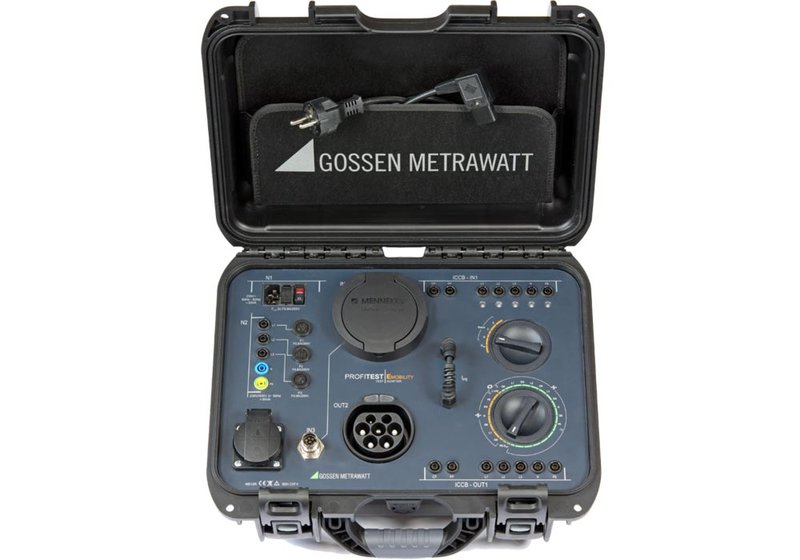

GMC-I/Gossen Metrawatt PROFITEST EMOBILITY (M513R) is an adaptor for standards-compliant testing of single and 3-phase, mode 2 and 3 charging cables by simulating faults.

  • Testing of charging cables per DIN VDE 0701-0702 and manufacturer specifications using a guided test sequence with a recommended test instrument.
  • Testing of mode 2, mode 3 and TESLA charging cables.
  • Testing of connector cables with country-specific plug (type 1 plug etc.).
  • Function test, i.e. tripping test by means of simulating the following faults: Interruption, reversed wires and PE to phase.
  • Measurement of protective conductor current with current clamp transformer as accessory.
  • Measurement of protective conductor and insulation resistance per DIN VDE 0701-0702 with a recommended test instrument.
  • Tripping test with nominal residual current and measurement of time to trip with a recommended test instrument.
  • Evaluation and documentation of the individual test steps with a recommended test instrument.
  • Simulation of vehicle state per EN 61851-1/VDE 0122-1.
  • Testing of resistance coding for vehicle inlets and vehicle connectors per EN 61851-1/VDE 0122-1.

Applications

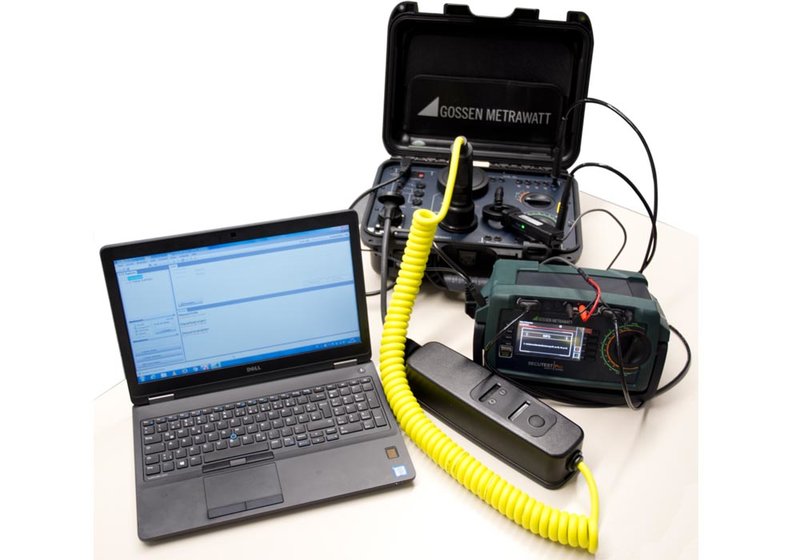

We recommend the following test instruments for testing charging cables with the PROFITEST EMOBILITY test adaptor:

  • PROFITEST MTECH+
  • PROFITEST MXTRA
  • PROFITEST PRIME
  • SECUTEST PRO

The following faults can be simulated with the test adapter with mains supply to a charging cable (also possible without additional test instrument):

  • Wire reversals.
  • Failure of individual conductors (undervoltage detection).
  • Interference voltage in the protective conductor due to connection of the phase conductor to the protective conductor (PE-UEXT switch setting).

The evaluation of the charging cable’s reaction to each respective fault is strictly visual: ICCB active or inactive (indicator lamp on the ICCB); fault indication by means of LEDs on the test adapter.

Model Overview

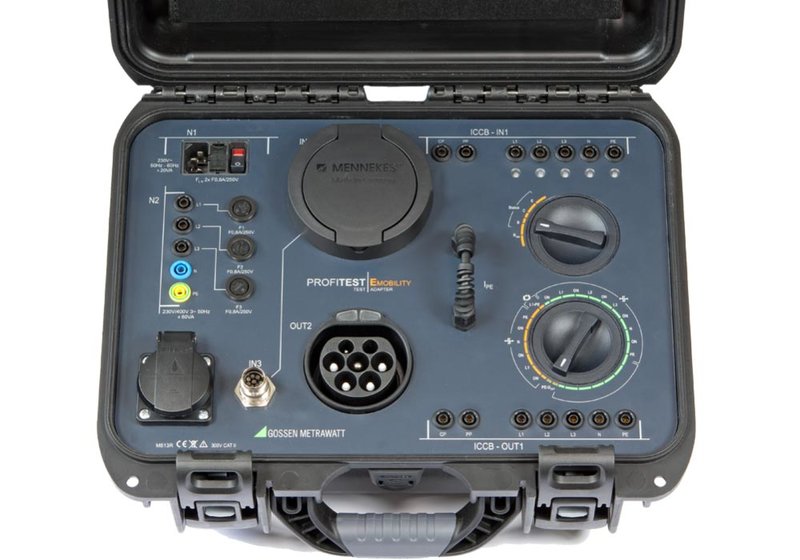

PROFITEST EMOBILITYM513RTest adapter for standard-compliant testing of 1-/3-phase charging cables mode 2 and mode 3 by simulating fault cases. Test adapter protection IP40 per DIN VDE 0470, part 1, connections: IP20.

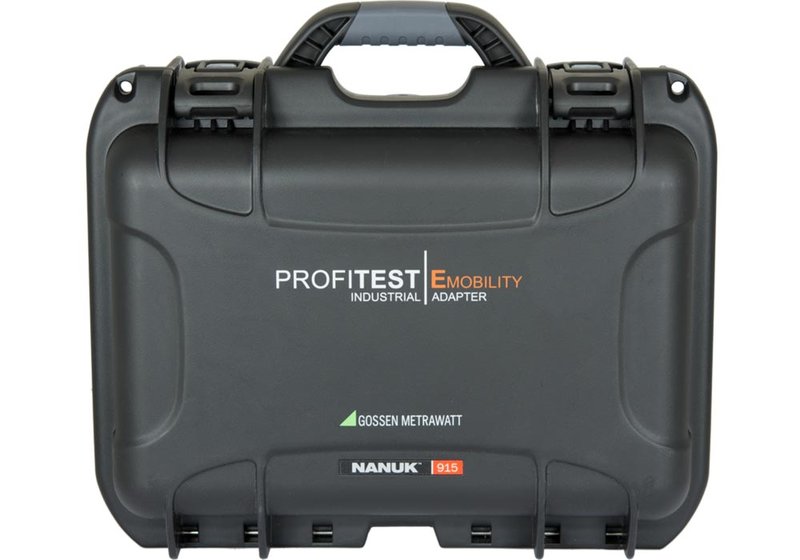

Dimensions (WxHxD, mm) housing: Approx. 401 x 307 x 173 (without connector cable, with surface mount sockets); approx. 6.4 kg (with connector cable).
Power supply: Line voltage

Included: Test adaptor PROFITEST EMOBILITY (M513R) in case, mains power cable, set of operating instructions.
