METRATESTER 5+/5+3P - Tester for DIN VDE 0701-0702

METRATESTER 5+/5+3P - For Testing per DIN VDE 0701-0702
additional images:
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • For test per DIN VDE 0701-0702.
  • Single device or in a case for 1- and 3-phase devices.
  • Large LCD digital display.

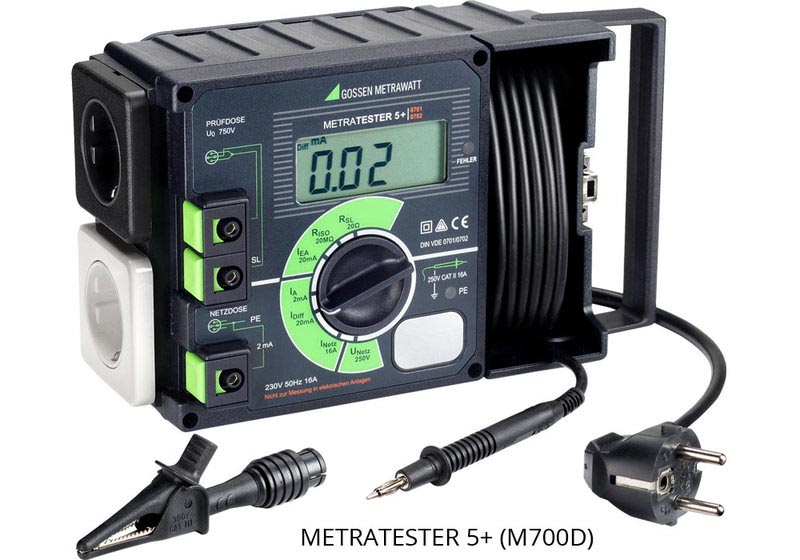

METRATESTER 5+ - for Testing per DIN VDE 0701-0702.

Instrument for electrical safety testing of electrical equipment per DIN VDE 0701-0702.

  • Differential current measurement: Measurement of differential current complies with DIN VDE 0701-0702.2008.
  • Display functions: All measured values are clearly displayed at a large, digital display.
  • Exceeded limit values are also indicated optically, and in some cases acoustically as well.
  • Propriety calibration certificate as standard
  • Technical specs:
    • Protective conductor resistance: 0...19.99 Ohm.
    • Equivalent leakage current: 0...19.99 mA~.
    • Absence of voltage: 0...1.999 mA~.
    • Line voltage: 207...253 V~.
    • Load current: 0...16.00 A~.
    • Dimensions 190 x 140 x 95 (WxHxD, mm), approx. 1.3 kg

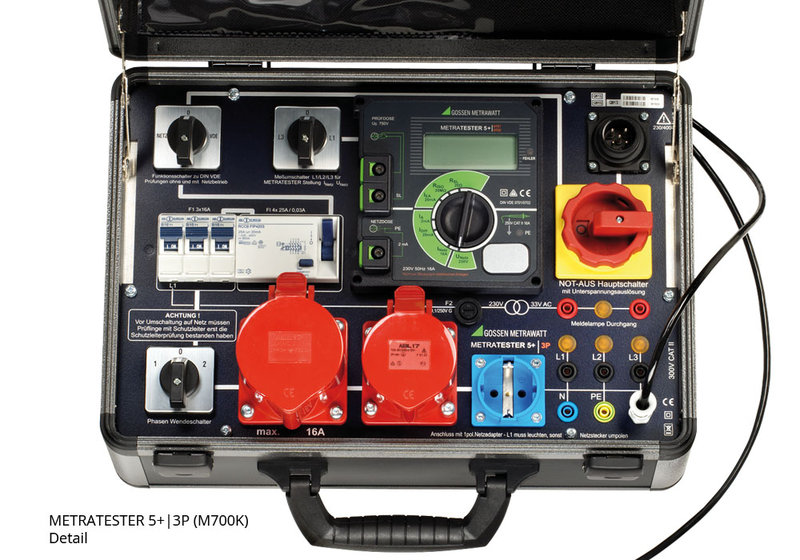

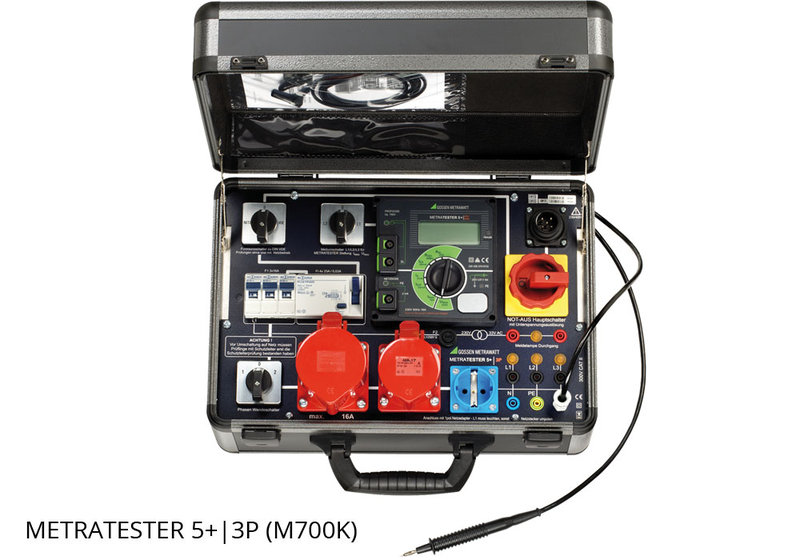

METRATESTER 5+3P - Test Case for Testing per DIN VDE 0701-0702 at Single and 3-Phase Equipment.

Can also be used as a workshop test panel per DIN VDE 0104. For testing electrical safety of single and 3-phase electrical equipment.

  • The METRATESTER 5-3P performs the following tests in accordance with the regulations:
    • Protective conductor resistance.
    • Insulation resistance.
    • Earth leakage current.
    • Residual current.
    • Contact current.
    • Protective conductor current.
  • The METRATESTER 5+3P test case complies with "guidelines for equipment required for electrical installation operations" issued by the Federal Committee for Electrical Installations, ZVEH, WFE and electrical power utilities.
  • Mains connection: The test case can either be connected to an earthing contact outlet with the two included power cables, or to a 16 A CEE mains outlet.
  • Test types: DIN VDE tests without mains operation: protective conductor resistance, insulation resistance, equivalent leakage current. DIN VDE with mains operation at all single and 3-phase devices: differential current, contact current. Function tests with measurement of current consumption and voltage in phases L1, L2 and L3. Protective conductor measurement is performed correctly in accordance with DIN VDE 0104.
  • Contact surface for finger contact: Protective conductor potential can be tested by means of a contact surface for finger contact. The PE signal lamp lights up if a potential difference of more than 100 V is detected between the contact surface and the protective contact at the mains plug.
  • Differential current measurement: Measurement of differential current complies with regulations for periodic testing in accordance with DIN VDE 0702.
  • Convenient testing: All safety and function tests are performed by simply switching mains voltage, or the individual phases, to the devices under test.
  • Display functions: All measured values are clearly displayed at a large digital display. Exceeded limit values are also indicated optically, and in some cases acoustically as well.
  • Rugged case design: The test case consists of an aluminum shell and a removable, lockable lid. Ample space is provided for the included connection adapters and operating instructions.

Model Overview

Model Ordering code Description
METRATESTER 5+ M700D Device for testing the electrical safety of electric equipment per DIN VDE 0701-0702.
METRATESTER 5+3P M700K Test case for testing per DIN VDE 0701-0702 at single and 3-phase equipment. Including:
1 test device SECUTEST 3PL, 1 special cable with probe and pluggabel crocodile clamp, 1 adaptor cable - connects to the three-phase power system 16 A, 1 adaptor cable - connects to lighting main 16 A (Schuko) 1 instruction manual and short operating instruction.
