Gossen Metrawatt METRALINE PAT (M711A) Tester
Description
Files/Downloads
No longer in the product range
Benefits of the GMC-I METRALINE PAT for Tests According to DIN VDE 0701-0702
- Rugged testing device according to DIN VDE 0701-0702.
- Fast measurements thanks to intuitive operation.
- High safety standards.

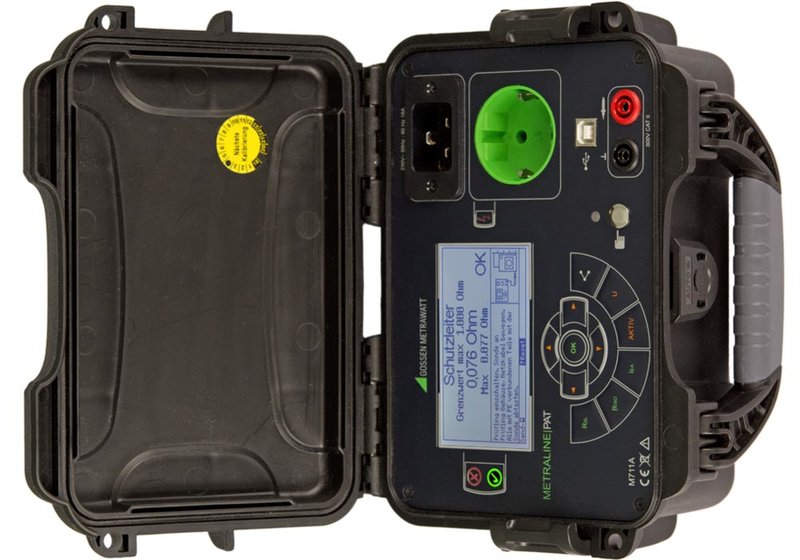

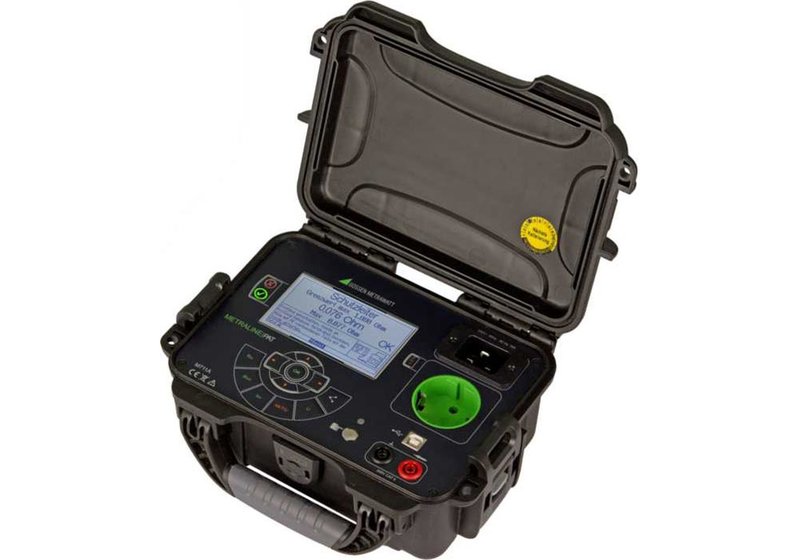

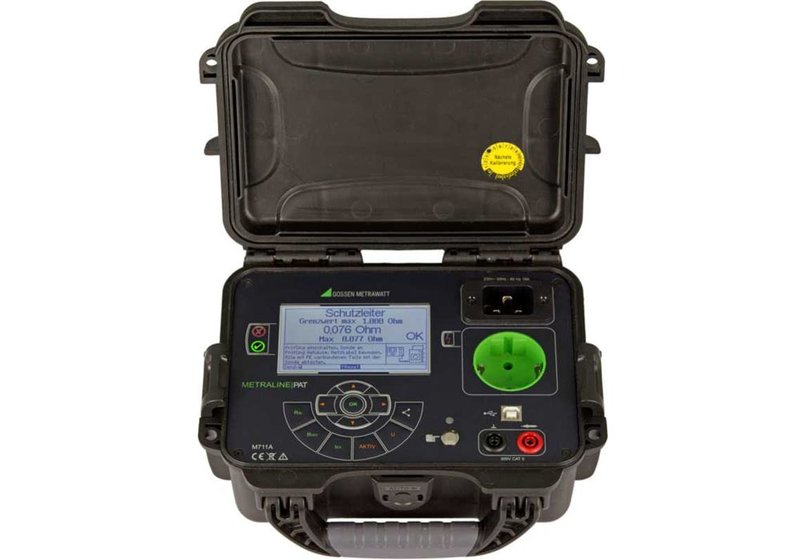

Gossen Metrawatt METRALINE PAT (M711A) Tester
The GMC-I/Gossen Metrawatt METRALINE PAT (M711A) is an intuitive safety tester for testing protective measures on mobile equipment according to DIN VDE 0701-0702, German version.
- For testing protective measures according to DGUV regulation 3, DIN VDE 0701-0702.
- Fast execution of all active tests including function test with true RMS power display in only one step. Standby measurement.
- Fast selection of individual measurements via direct selection keys.
- Automatic limit adjustment (protective conductor, insulation, equivalent leakage current).
- Two-pole measurement (low resistance, insulation, equivalent leakage current, voltage).
- Testing of permanently connected devices possible.
- Check of the mains connection for PE connection and automatic switch-off in case of dangerous fault current of the DUT.
- Finger contact for protective conductor potential check.
- Short-circuit check of the DUT.
- Fast mains polarity reversal with load current monitoring.
- Plain text operation with schematic diagrams and LED display green/red for OK/error.
- Large high-contrast display.
- Bluetooth and USB interface for tablet/PC operation.
- Compact, low weight.
- Data transfer to IZYTRONIQ software via ELEXONIQ Android APP.
- Optional guided operation via Android App Test-Master with SQLITE3 database (for download via Google Play Store).
Model Overview
| Modell | METRALINE PAT (M711A) |
| Measurements | Usage error 5% of measured value + 1% of range |
| Protective conductor resistance | 0...4.000 Ω |
| Insulation resistance | 0...20.00 MΩ |
| Equivalent leakage current | 0...20.00 mA |
| Differential current | 0...20.00 mA |
| Contact current | 0...4.000 mA |
| Function test | Contact current IB 0.000...4.000 mA Differential current ID 0.00...20.00 mA Current consumption I 0.00...20.00 A Mains voltage U 0.0...250.0 V Active power P 0...4,000 W |
| Test voltage | 2.3 kV 50 Hz |
| Measuring category | 250 V CAT II |
| Display | Multiple display, dot matrix 320 x 240 dots, backlit display |
| Supply and connections | AC 230 V; connection of DUT 16 A Schuko |
| Dimensions (mm) | 230 x 175 x 95; approx. 1.3 kg |
Included: METRALINE PAT (M711A), 1x test lead (red with safety plug and test probe, 2 m), power cable, factory calibration certificate, operating instructions, card with registration key for IZYTRONIQ software. 1 year warranty.
Information on product safety:
Manufacturer:
Gossen Metrawatt GmbH GMC-Instruments Group, Südwestpark 15, 90449 Nürnberg/DEU
www.gossenmetrawatt.com
