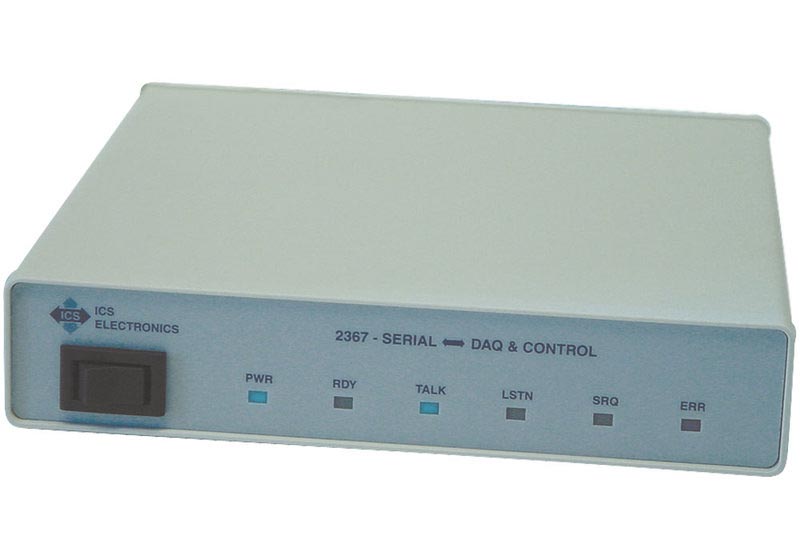

ICS Model 2367 Temperature and Multi-I/O for RS232, RS422, RS485

Benefits of the Model 2367 Serial Multi-I/O and Temperature DAQ Box

• Rugged multi-I/O and temperature DAQ box with RS232, RS422, RS485 interface.
• 6 analog inputs, 4 thermocouple inputs.
• Additional analog outputs and digital-I/O.

ICS Model 2367 Temperature and Multi-I/O for RS232, RS422, RS485

Measurement and control I/Os directly at serial COM/RS232 or RS422/RS485: These DAQ and control boxes offer digital and analog inputs and outputs as well as thermocouple inputs that can be controlled directly via serial COM/RS. The boxes have a rugged metal housing and get their power from an external power supply (included).

• DAQ/control box with serial RS232/422/485 interface.
• 6 single-ended 12 bit analog inputs, range: ±10 V, ±5 V, 0...5 V, 0...10 VDC. Rate 50 Samples/s.
• 4 inputs for thermocouples type J (-100...+400°C). Resolution 0.1°C.
• 4 analog outputs, 10 bit.
• 32 digital-I/O lines, 8 bit groups can be configures as inputs or outputs.
• 6 open-collector relays driver. Max. 300 mA/48 VDC.
• CD with configuration programs for GPIB and VisualBASIC examples incl.
